2 Door

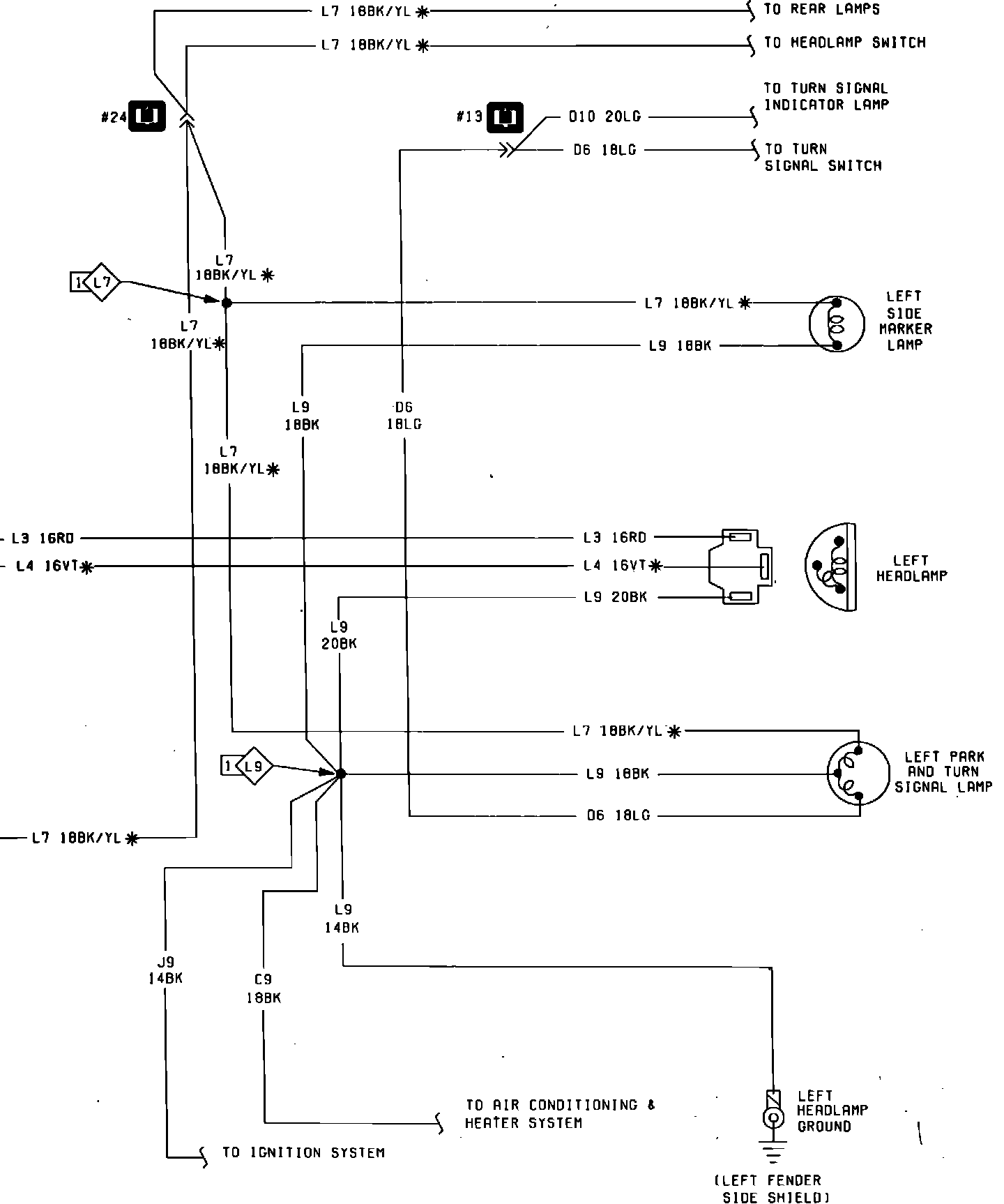

Fig. 34 Front End Wiring Circuit (Part 1 of 2). 1983-84 2 Door:

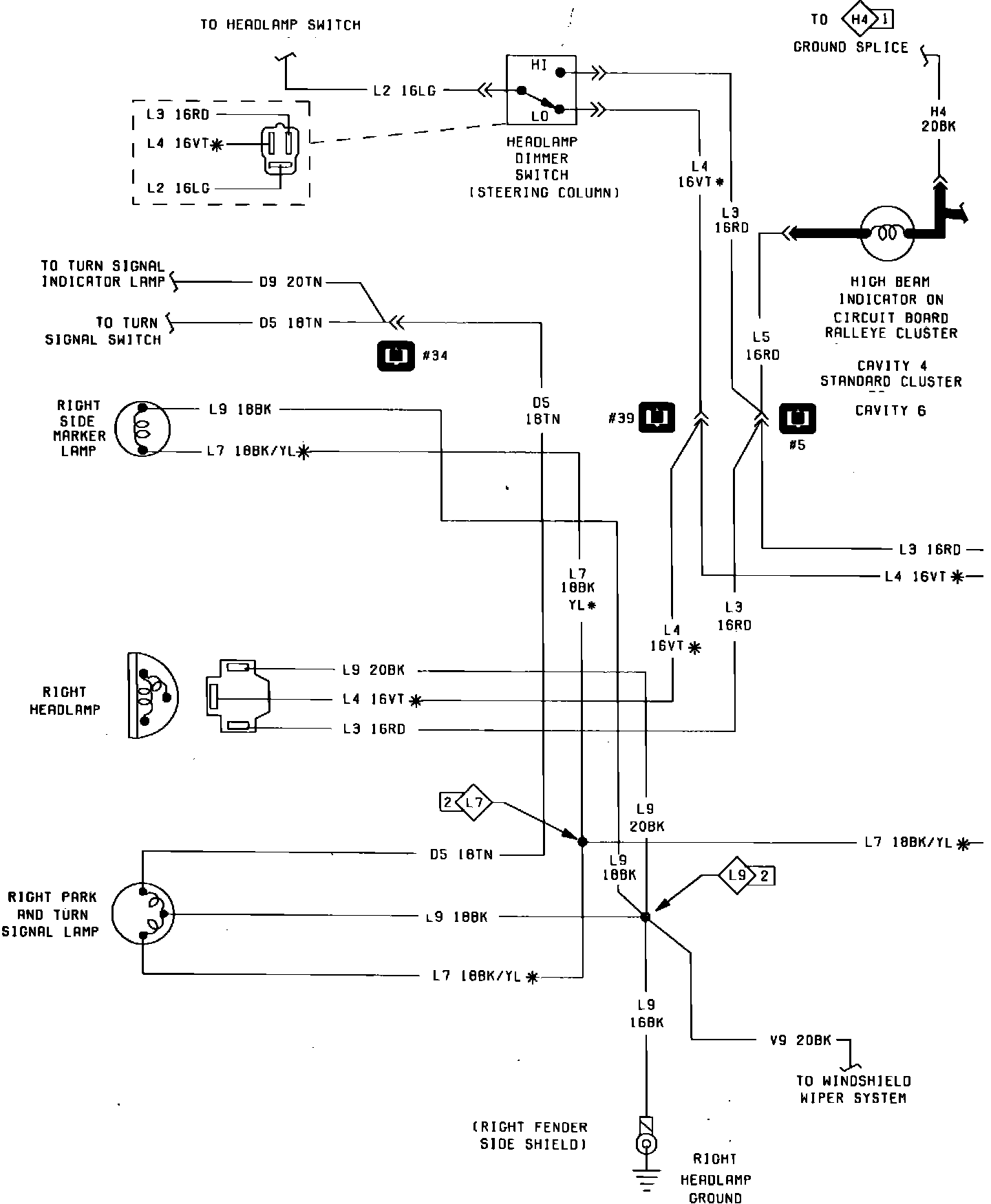

Fig. 35 Front End Wiring Circuit (Part 2 of 2). 1983-84 2 Door:
