Part 2 of 2
Part 2 of 2

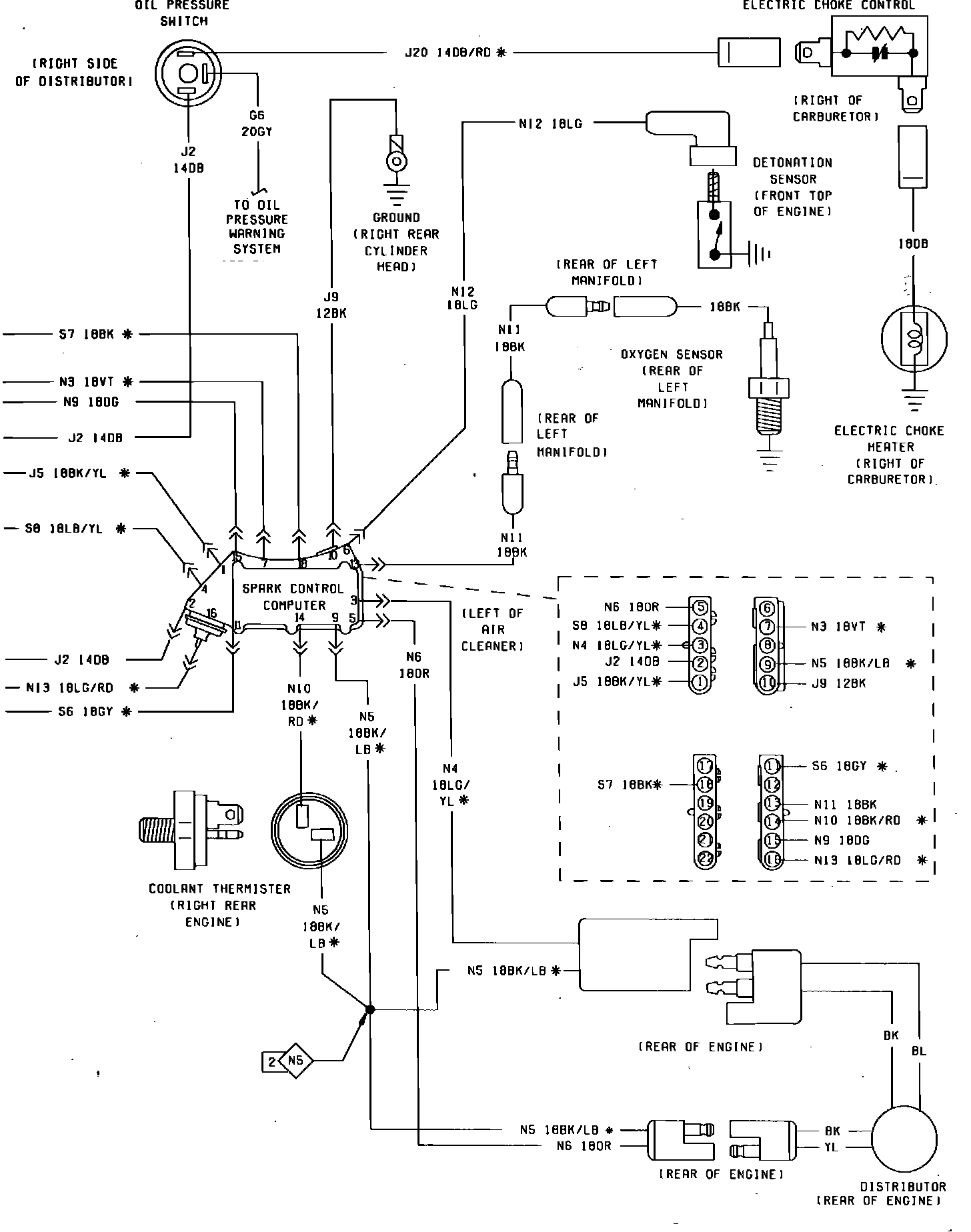

Fig. 34 Ignition System Electronic Spark Advance Wiring Circuit (Part 2 of 2). 1984 V8-318 2 Bbl.:
