Plymouth
>>
1984
>>
Grand Fury/Salon V8-318 5.2L VIN 4 2-BBL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Part 1 of 2
Part 1 of 2

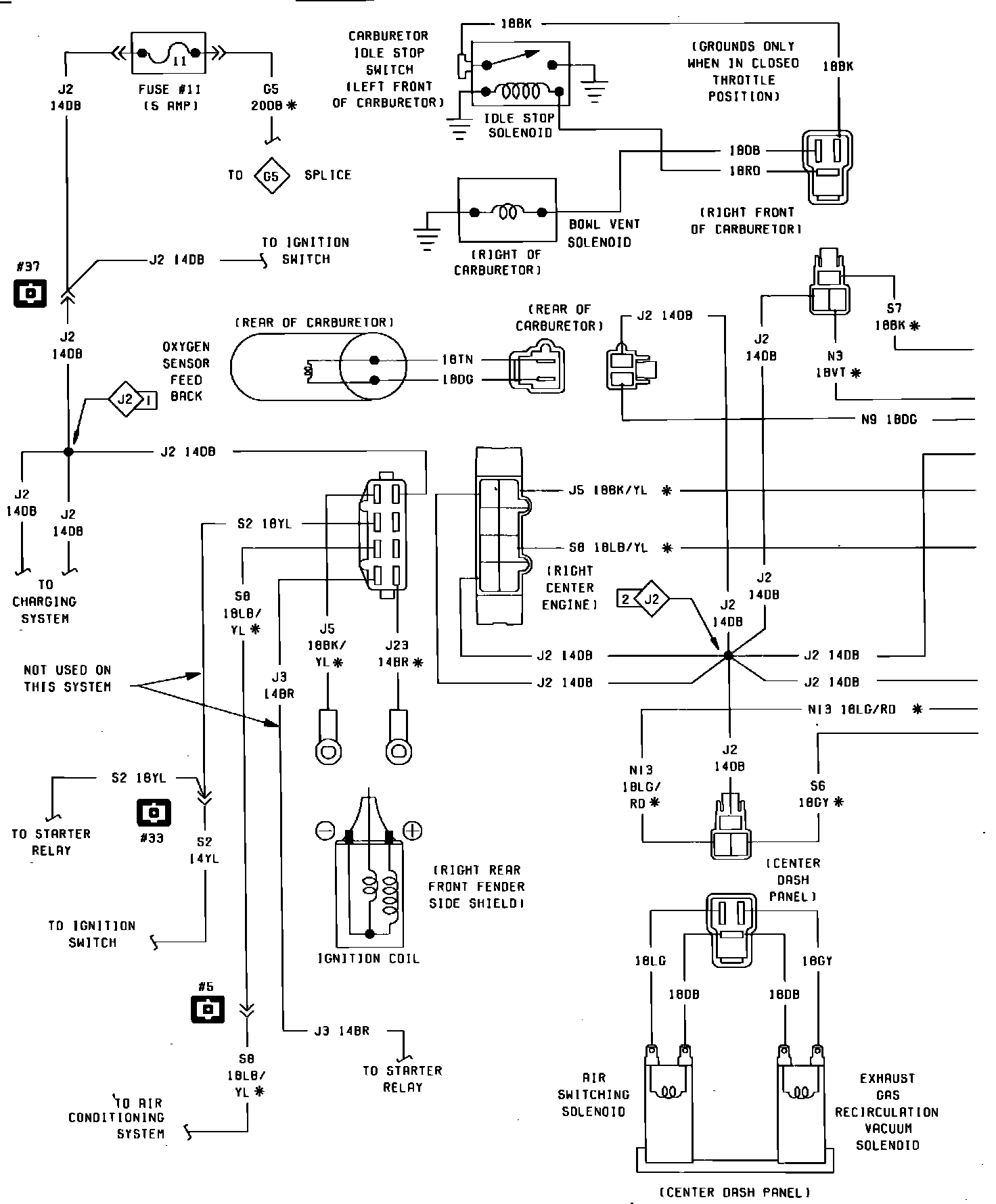

Fig. 34 Ignition System Electronic Spark Advance Wiring Circuit (Part 1 of 2). 1984 V8-318 2 Bbl.:
