Windshield Moulding - Replacement

84chrysler3

Models


1984 Colt Vista


Subject


Window Moulding Replacement


Index


BODY


Date May 21, 1984


No..


23-12-84

P-2111-C
SYMPTOM/CONDITION

If the outside windshield moulding on subject model vehicle is damaged or loose in any way it should be replaced using the following parts and repair procedure.

PARTS REQUIRED

Urethane Kit, PN 4267906, consisting of:

1 - 11.0 Oz. Tube Polyurethane 1 - 1 Oz. Metal Fence Primer 1 - 1 Oz. Glass Primer Wipe Off 1 - 1 Oz. Glass Primer Blackout 3 - Dabbers 1 - Nozzle 1 - Instruction Sheet

REPAIR PROCEDURE

Removal

1. Install protective tape to both glass and body to prevent damage. Using a small screwdriver, remove the corner joint mouldings and discard.

FIGURE 1:

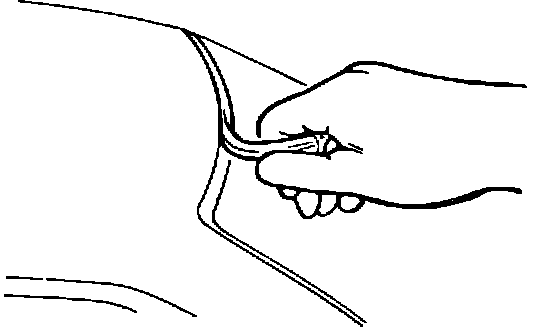

2. Using the same screwdriver, pry up the end of the moulding and carefully peel it out of its groove (Figure 1).

NOTE: IN SOME AREAS IT MAY BE NECESSARY TO USE A KNIFE OR OTHER SHARP INSTRUMENT TO AID IN MOULDING REMOVAL. DISCARD MOULDING

FIGURE 2:

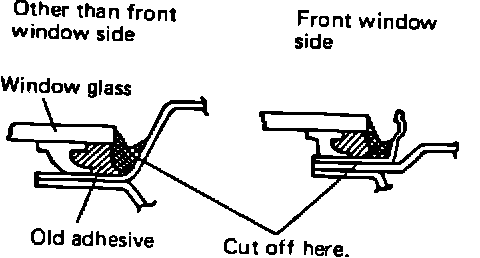

FIGURE 3:

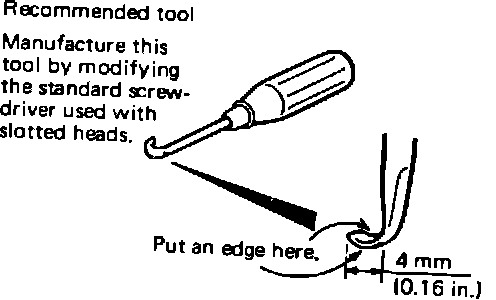

3. Using a tool made from an old screwdriver (Figure 2), scrape off old adhesive until a uniform surface is obtained (Figure 3).
CAUTION: USE EXTREME CARE NOT TO DAMAGE ANY PAINTED SURFACE DURING THIS OPERATION. IF ANY PAINT IS DAMAGED IT MUST BE REPAIRED BEFORE PROCEEDING.

Installation

1. Position new moulding onto vehicle to be sure that it fits properly. Remove moulding.

2. Clean old adhesive contact area and underside of moulding with naptha.

FIGURE 4:

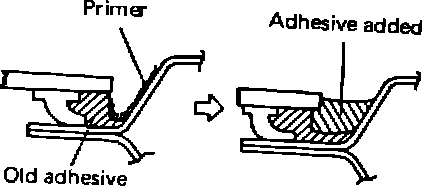

3. Apply primer and adhesive to the old adhesive (Figure 4).
4. Apply adhesive to the new moulding and the new corner joint mouldings.

5. Install mouldings.

6. Clean any excess adhesive from area using scraper and cloth moistened with naptha.

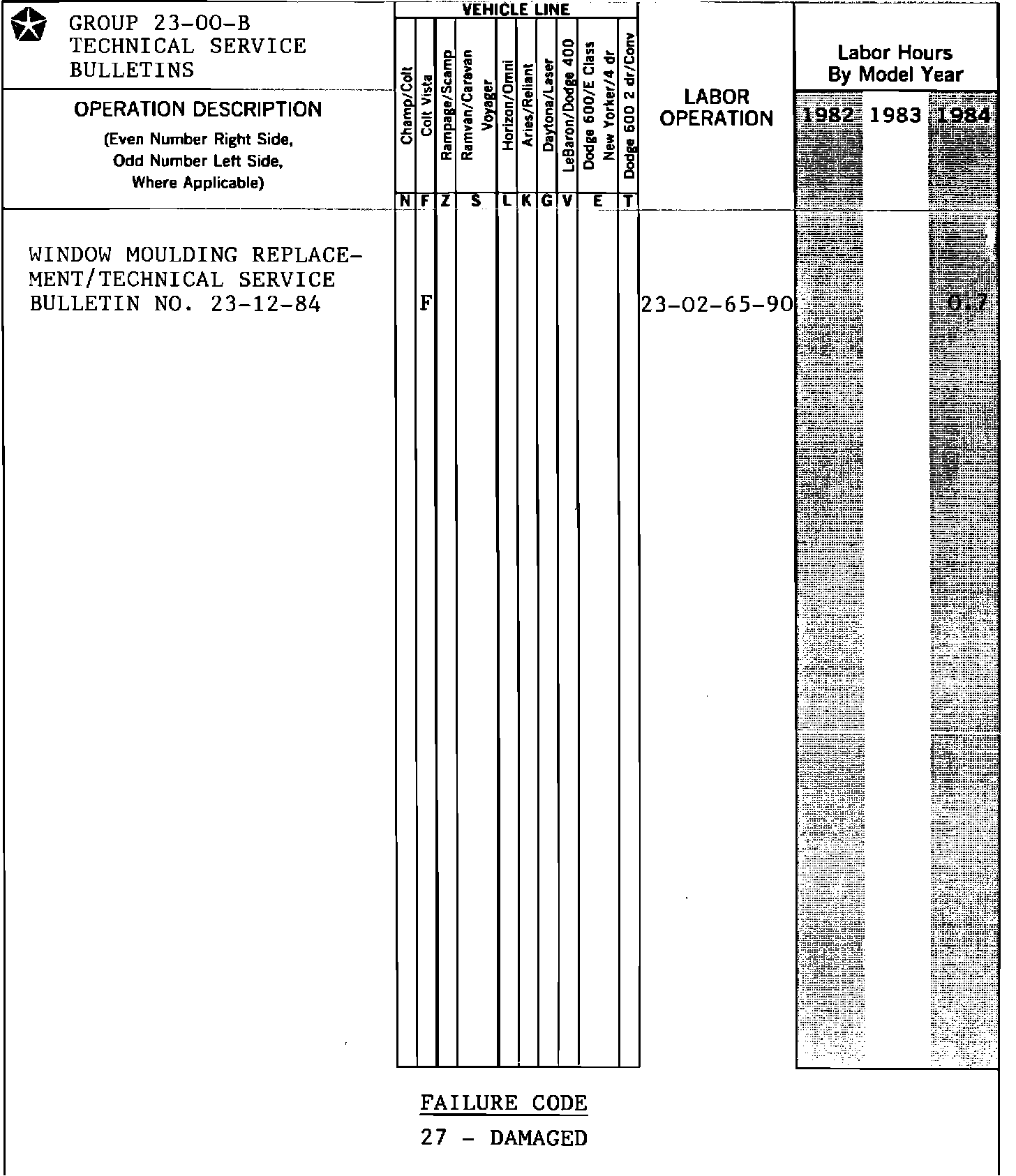

FRONT WHEEL DRIVE LABOR OPERATION TIME SCHEDULE:

POLICY: Reimbursable within the provisions of the warranty


TIME ALLOWANCE:
Labor Operation No. 23-02-65-90.............................. 0.7 Hrs.


FAILURE CODE: 27 - Damaged
