Reliant-K L4-156 2.6L VIN G 2-bbl
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Steering Column
>>
Diagrams
>>
Connector Views
Connector Views

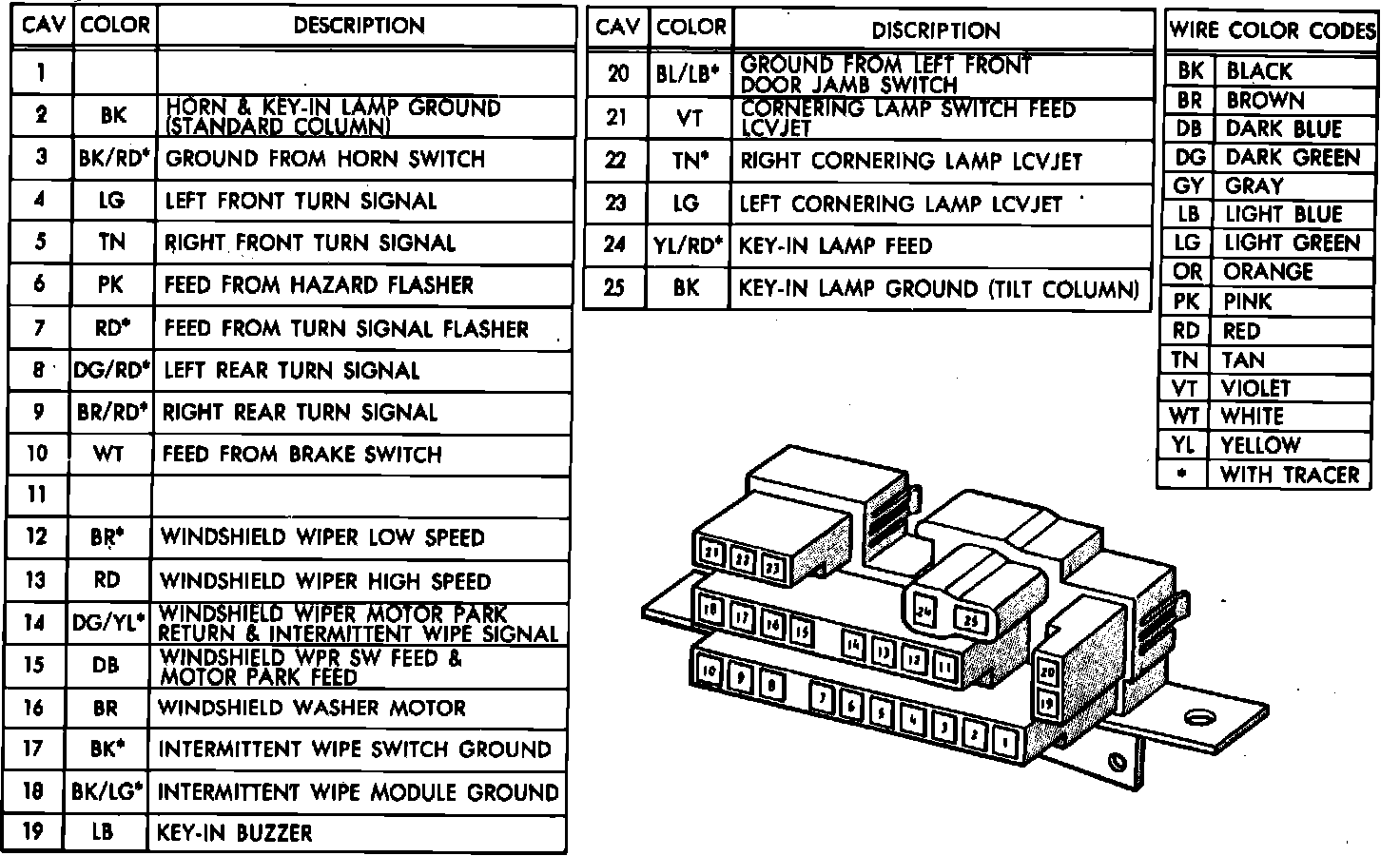

Fig. 9 Instrument Panel To Steering Column Connector (25 Way). 1983-84:
