Plymouth
>>
1983
>>
Reliant-K L4-156 2.6L VIN G 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Timing Components
>>
System Diagram
System Diagram

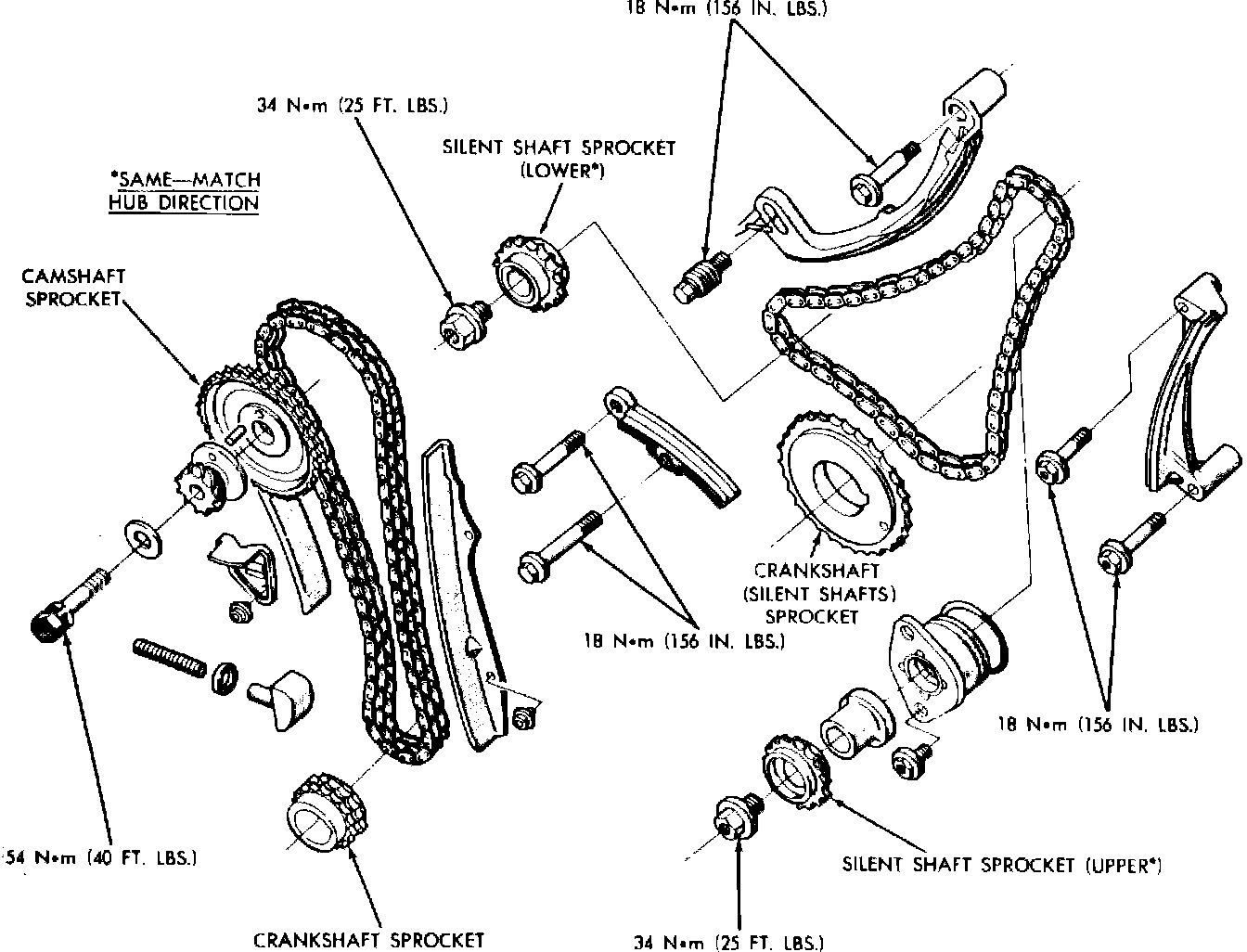

Timing gears & chain assembly. 1982---84:
