2 Door

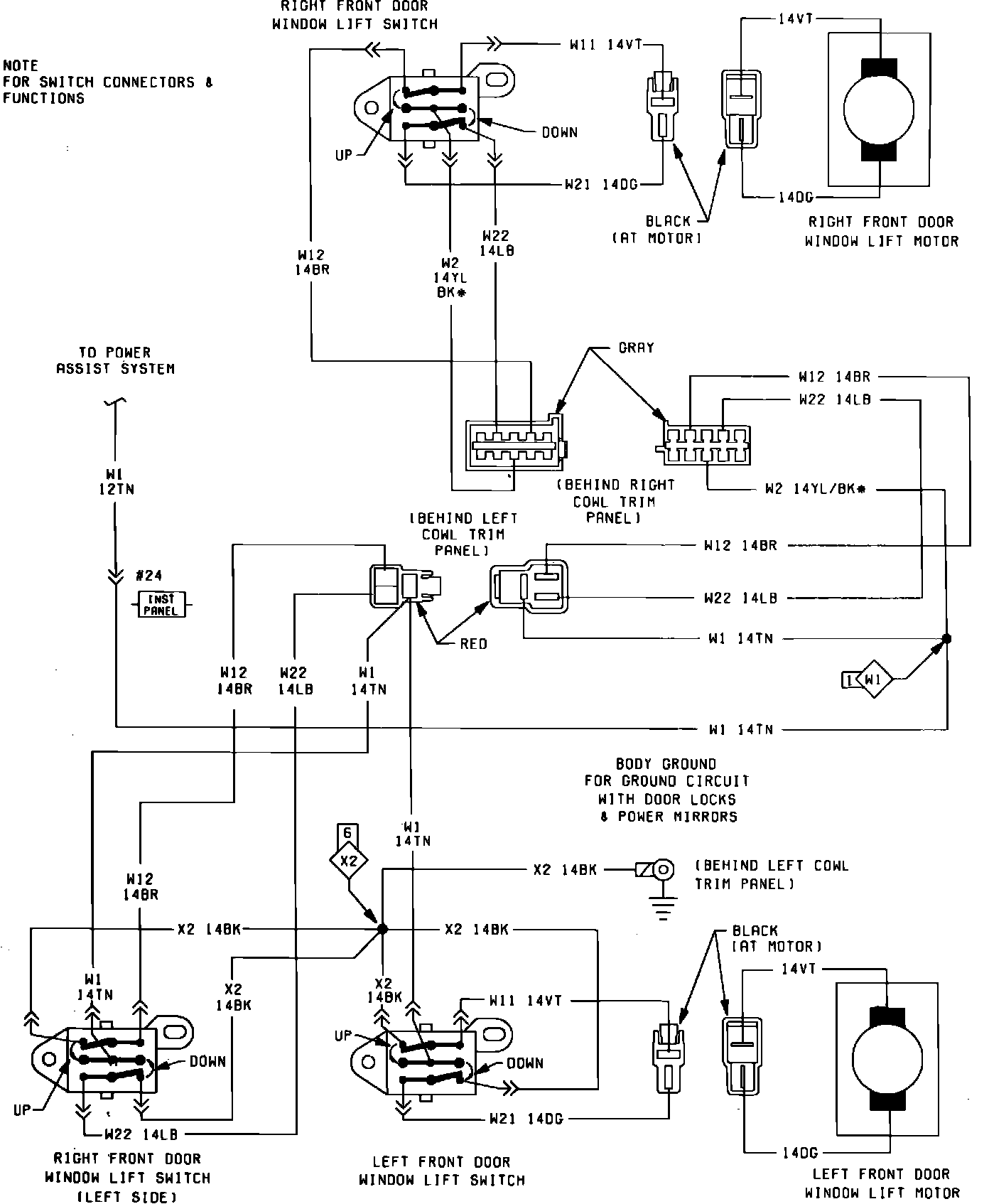

Fig. 73 Power Window Wiring Circuit (Part 1 of 2). 1983 2 Door:

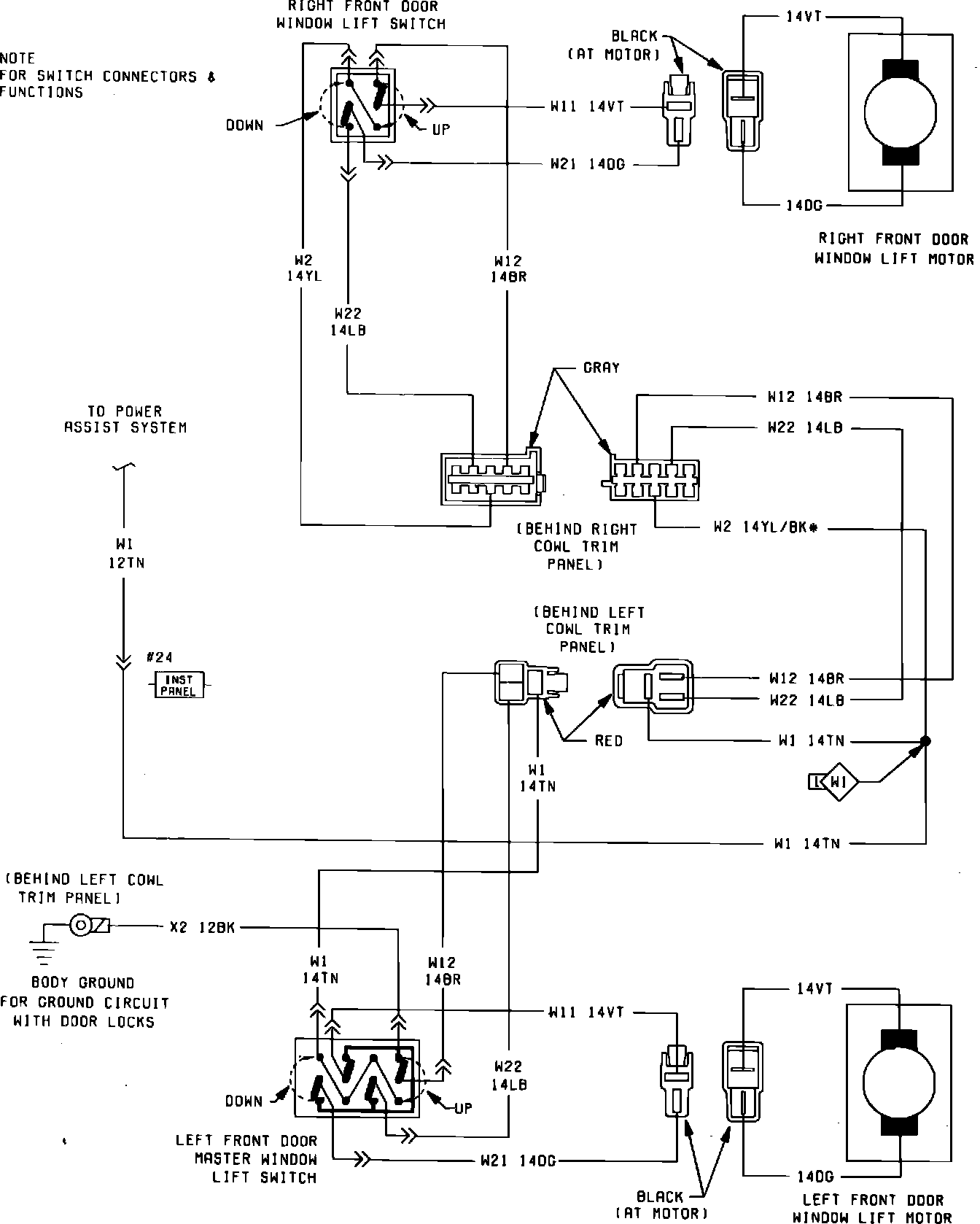

Fig. 73 Power Window Wiring Circuit (Part 2 of 2). 1983 2 Door:
