Plymouth
>>
1983
>>
Reliant-K L4-156 2.6L VIN G 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Speaker
Speaker

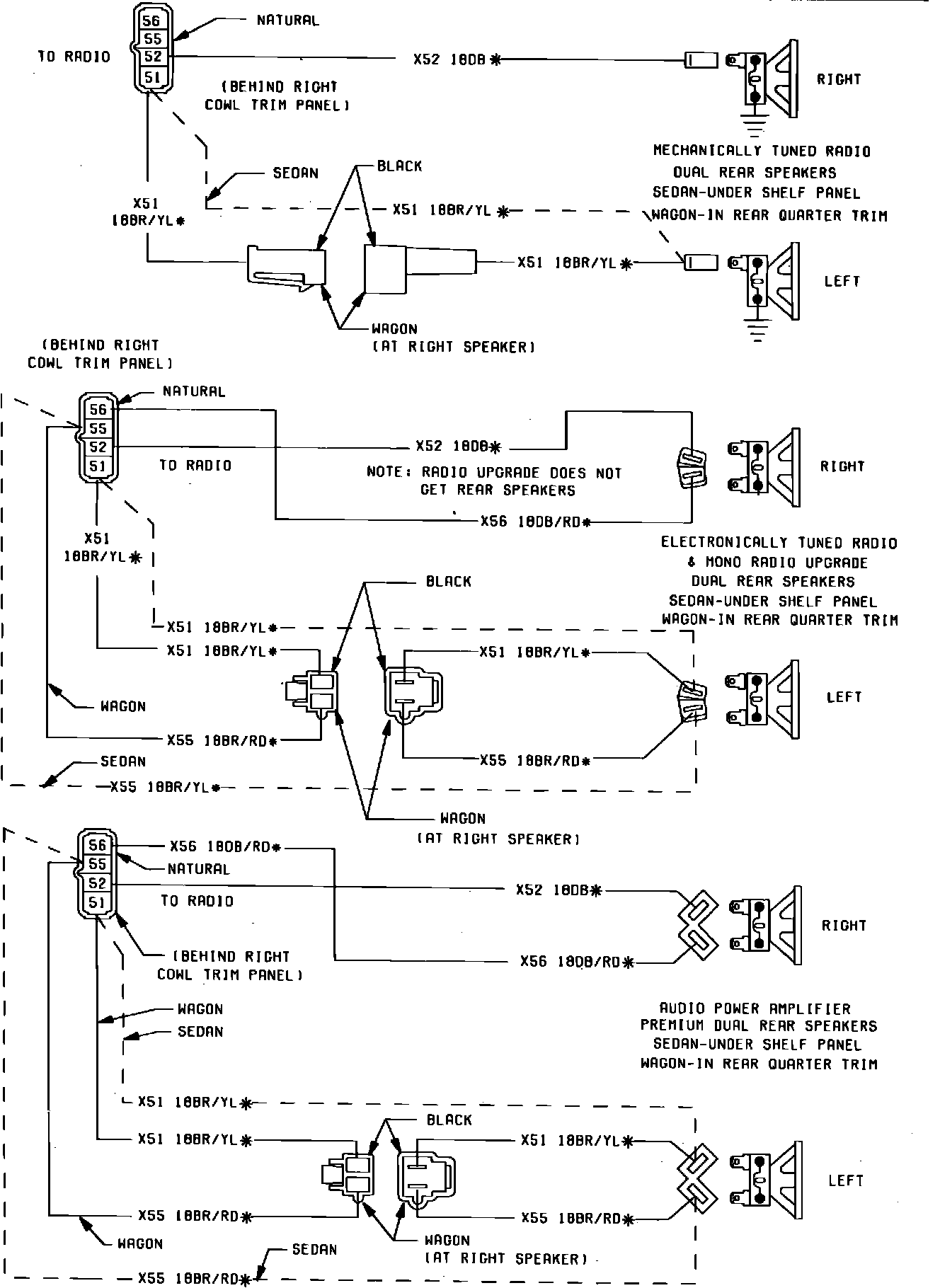

Fig. 78 Radio Rear Speaker Wiring Circuit. 1983-84:
