Oil Pressure Sender
Oil Pressure Sender

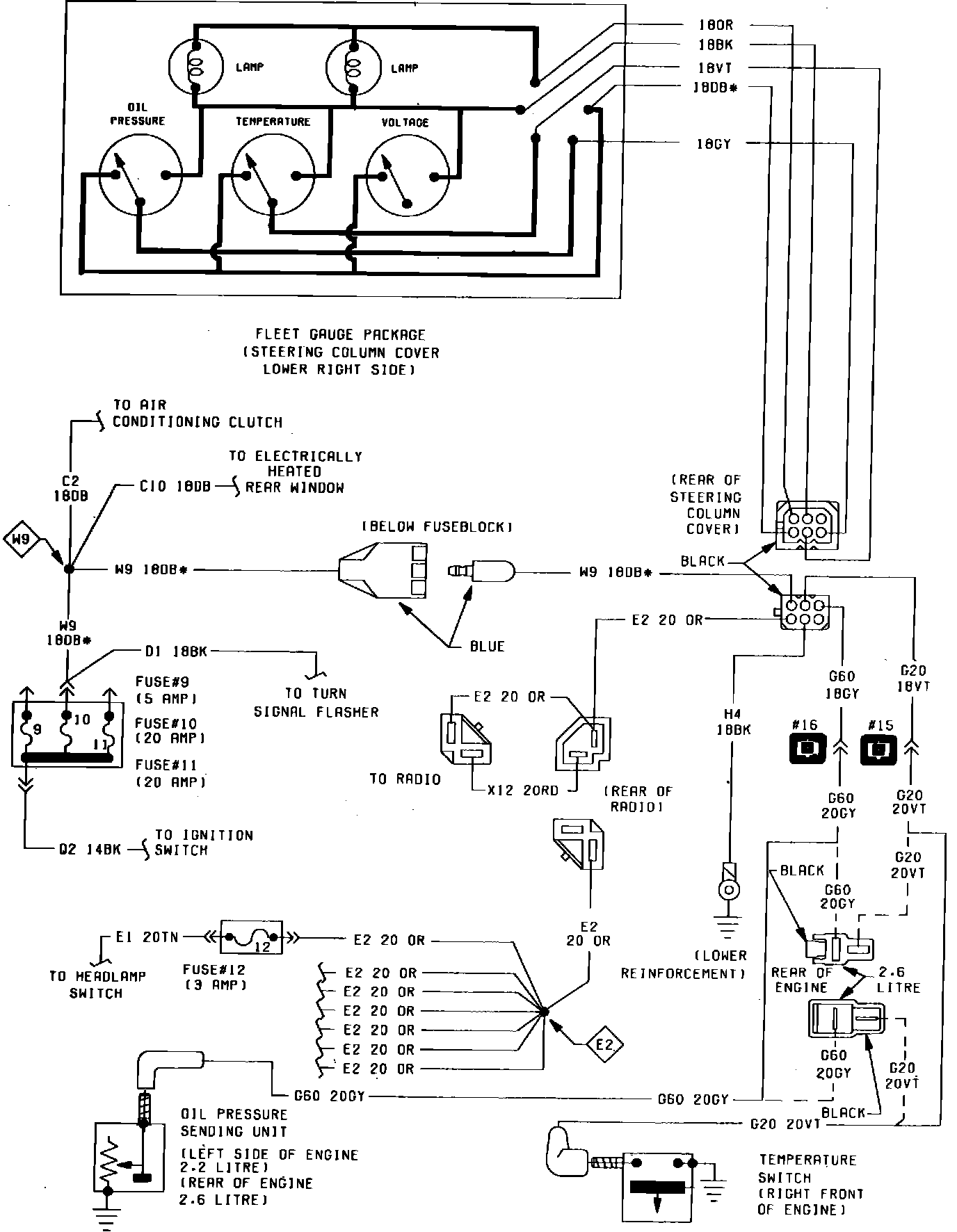

Fig. 11 Accessory Oil Pressure Gauge Wiring Circuit (Fleet). 1983:
