Plymouth
>>
1983
>>
Reliant-K L4-156 2.6L VIN G 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
Instrument Panel Circuit Board
Instrument Panel Circuit Board

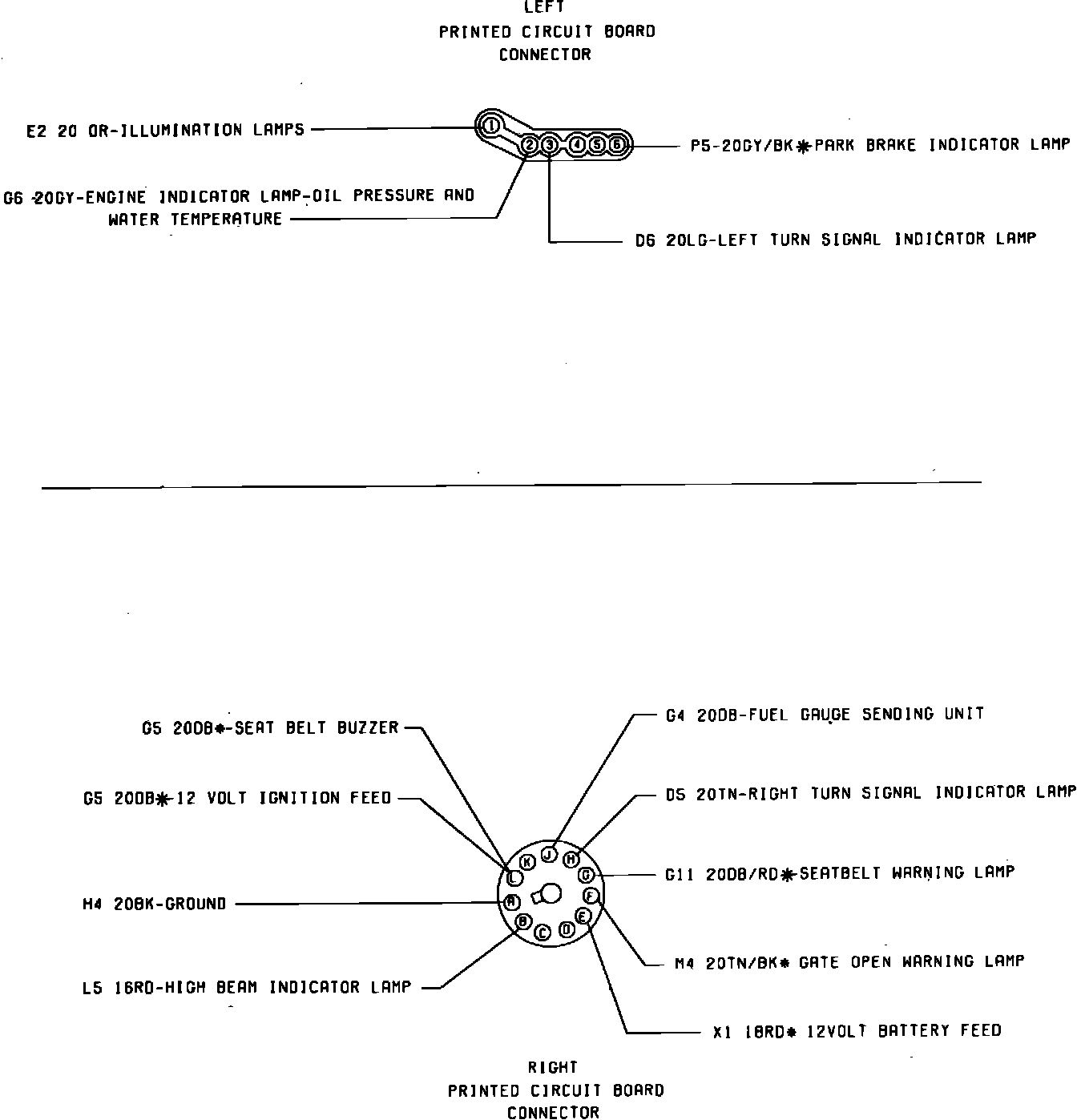

Fig. 4 Instrument Printed Circuit Board Connector. 1983:
