Plymouth
>>
1983
>>
Reliant-K L4-134 2.2L SOHC VIN C 2-BBL
>>
Repair and Diagnosis
>>
Cruise Control
>>
Brake Switch (Cruise Control)
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

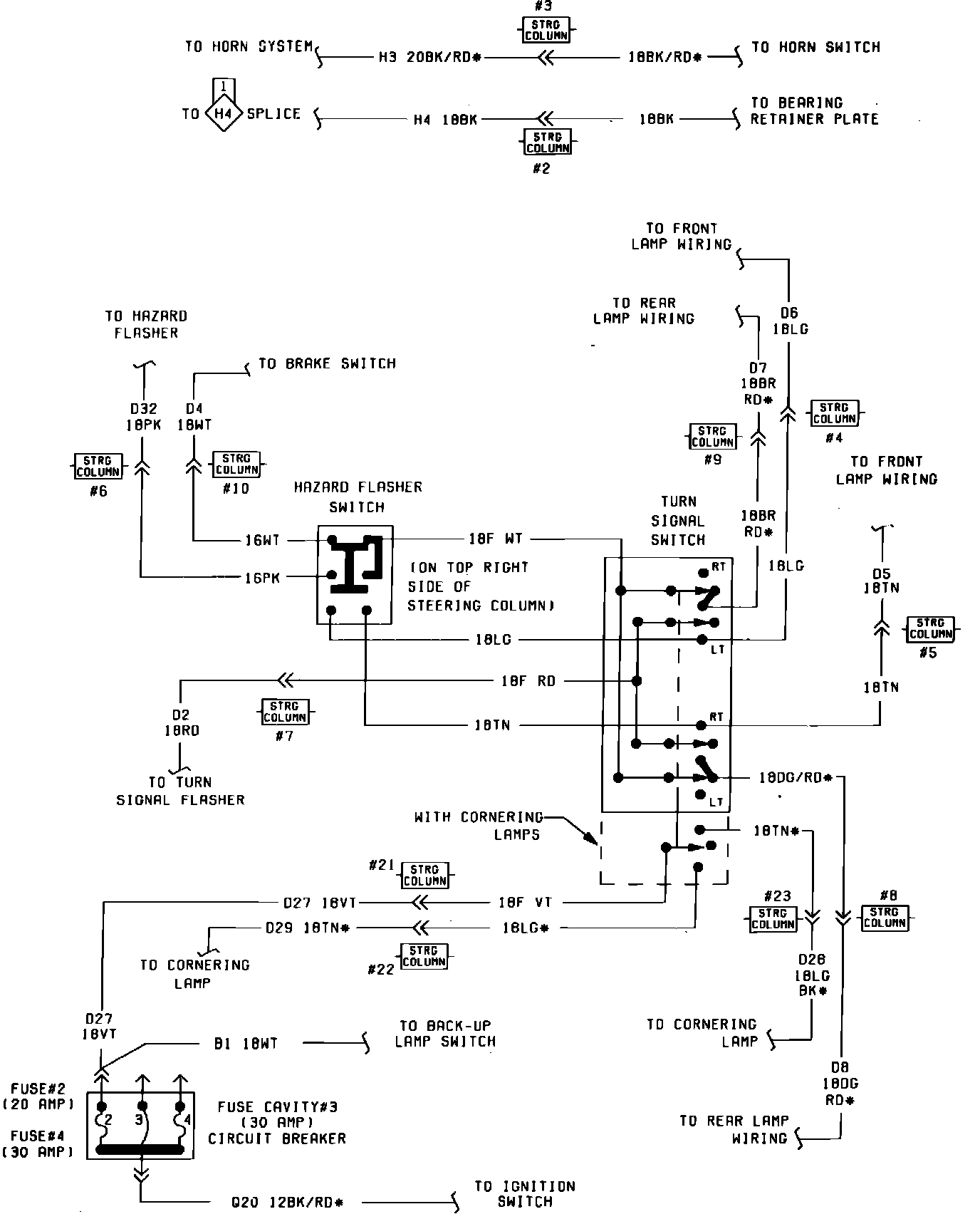

Fig. 48 Hazard & Turn Signal Switch Wiring Circuit. 1983:
