KM 170-2 A/T - Production Changes

83chrysler4

Models

1983 Dodge, Plymouth Colt

Subject

1983 KM 170-2 Automatic Transaxle Changes

Index

TRANSMISSION

Date

August 15, 1983

No..

21-15-83

P-2879-C

NOTE:* DENOTES PARTS NEWLY INTRODUCED AS SERVICE PARTS.:

The KM 170-1 (1982-1/2 model year) automatic transaxle used in the subject model vehicles has been revised into the KM 170-2 (1983 model year) transaxle.

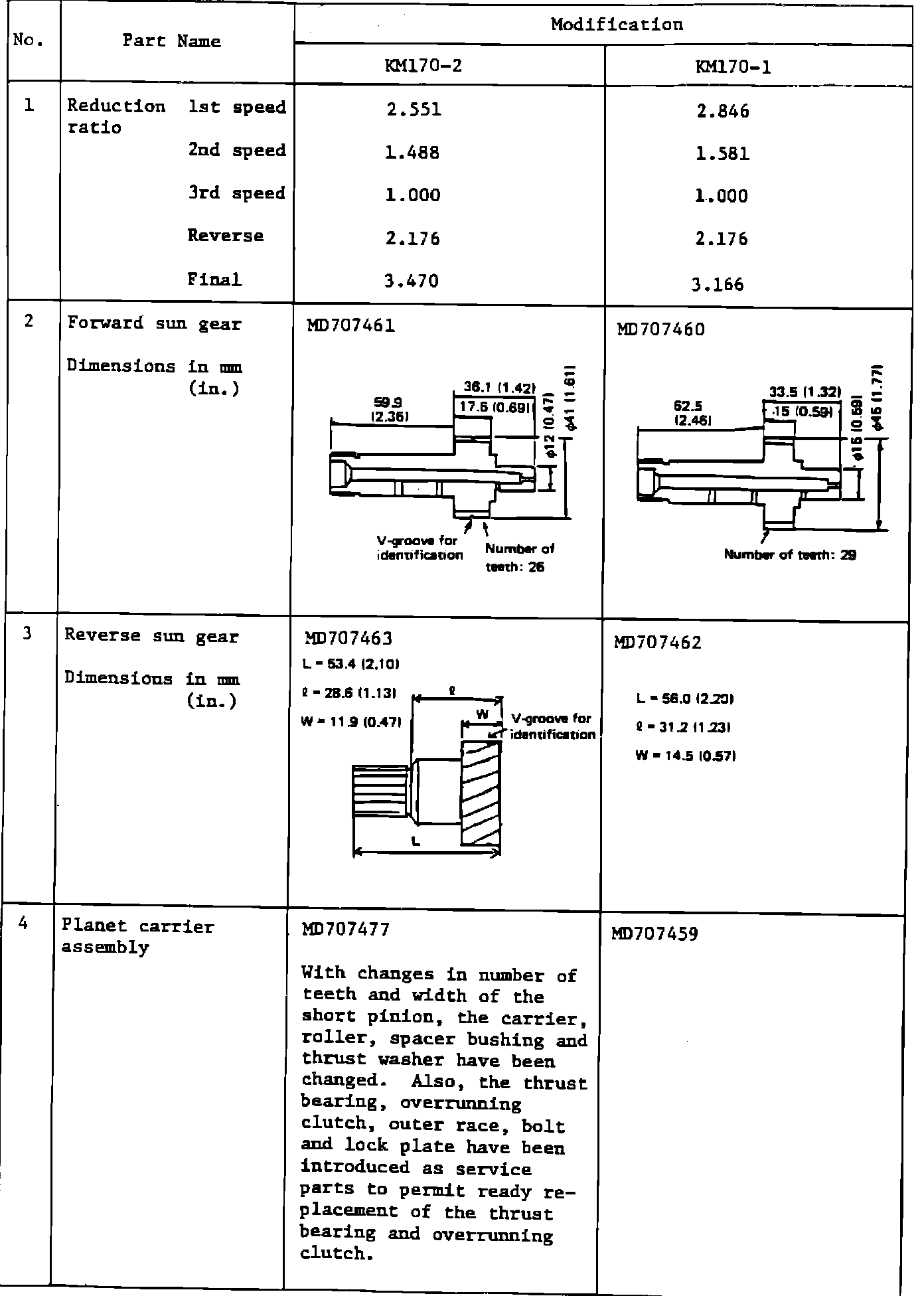

The main changes are in the 1st and 2nd gear ratios as shown in the attached.
POLICY: Information only

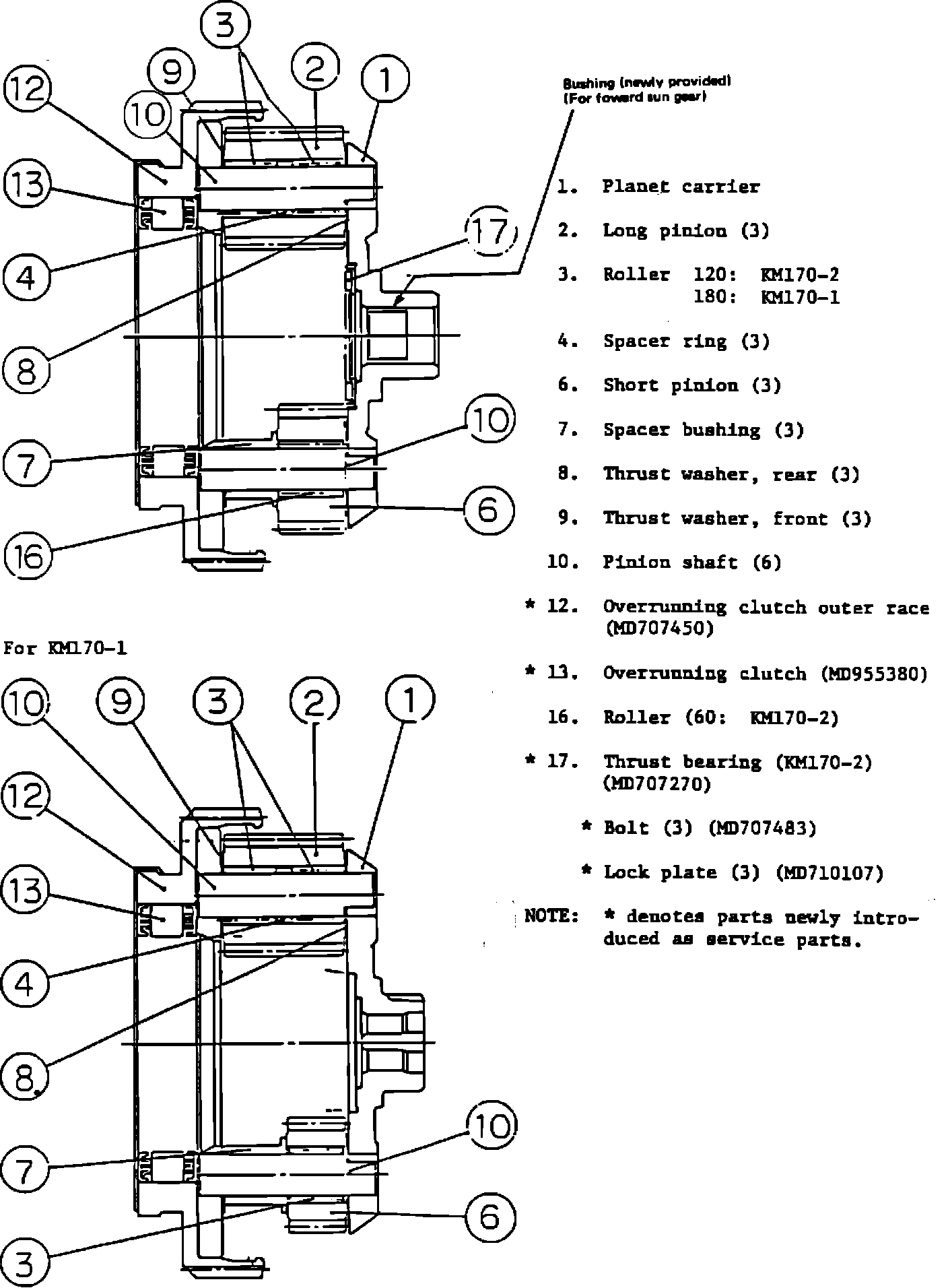

KM 170 TRANSMISSION MODIFICATION:

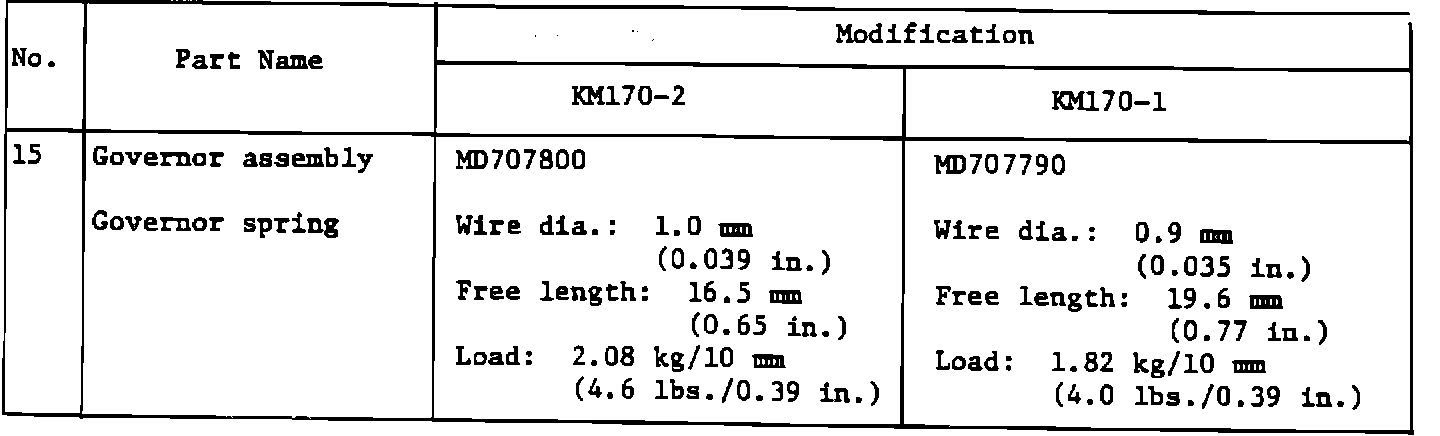

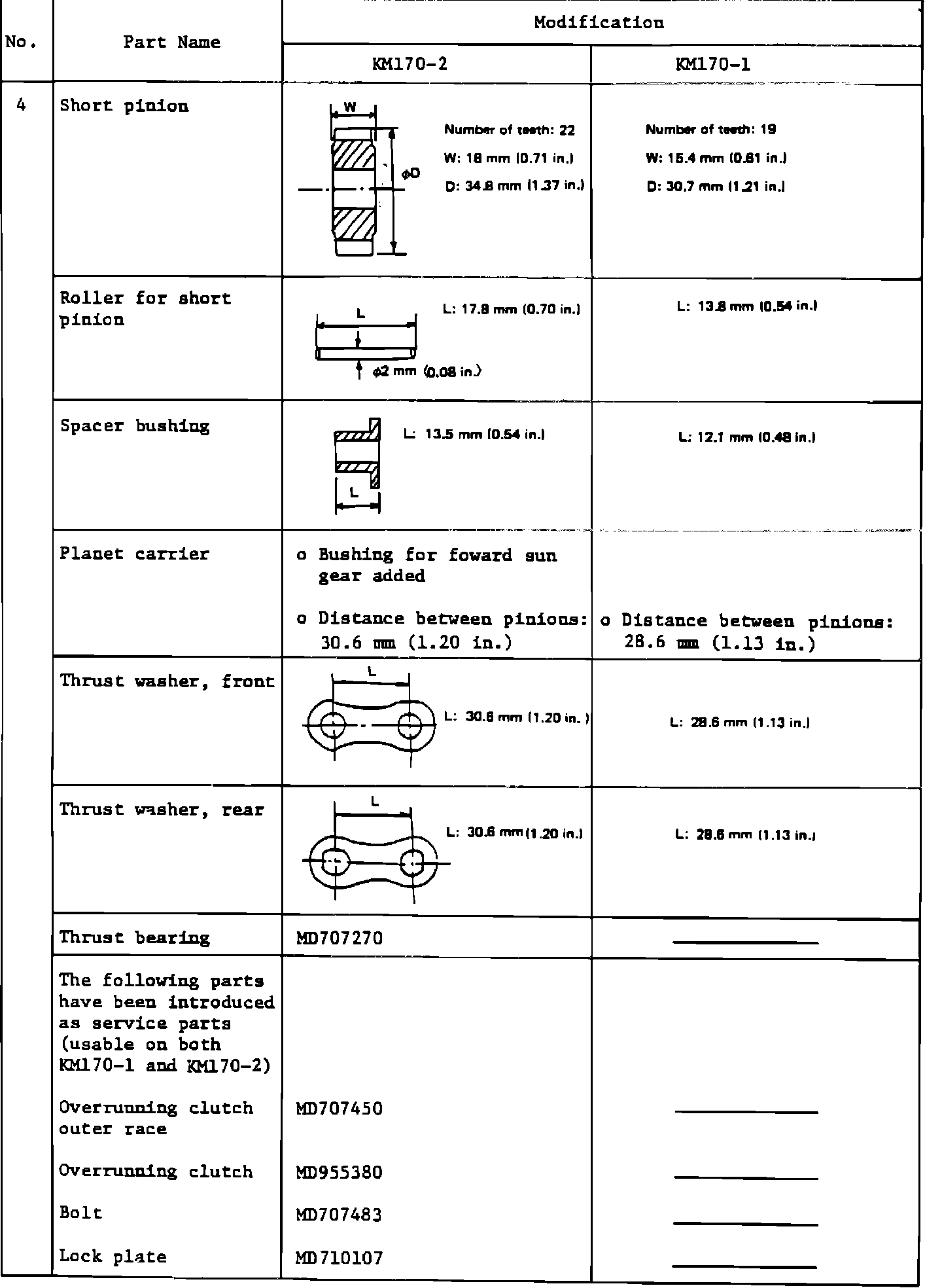

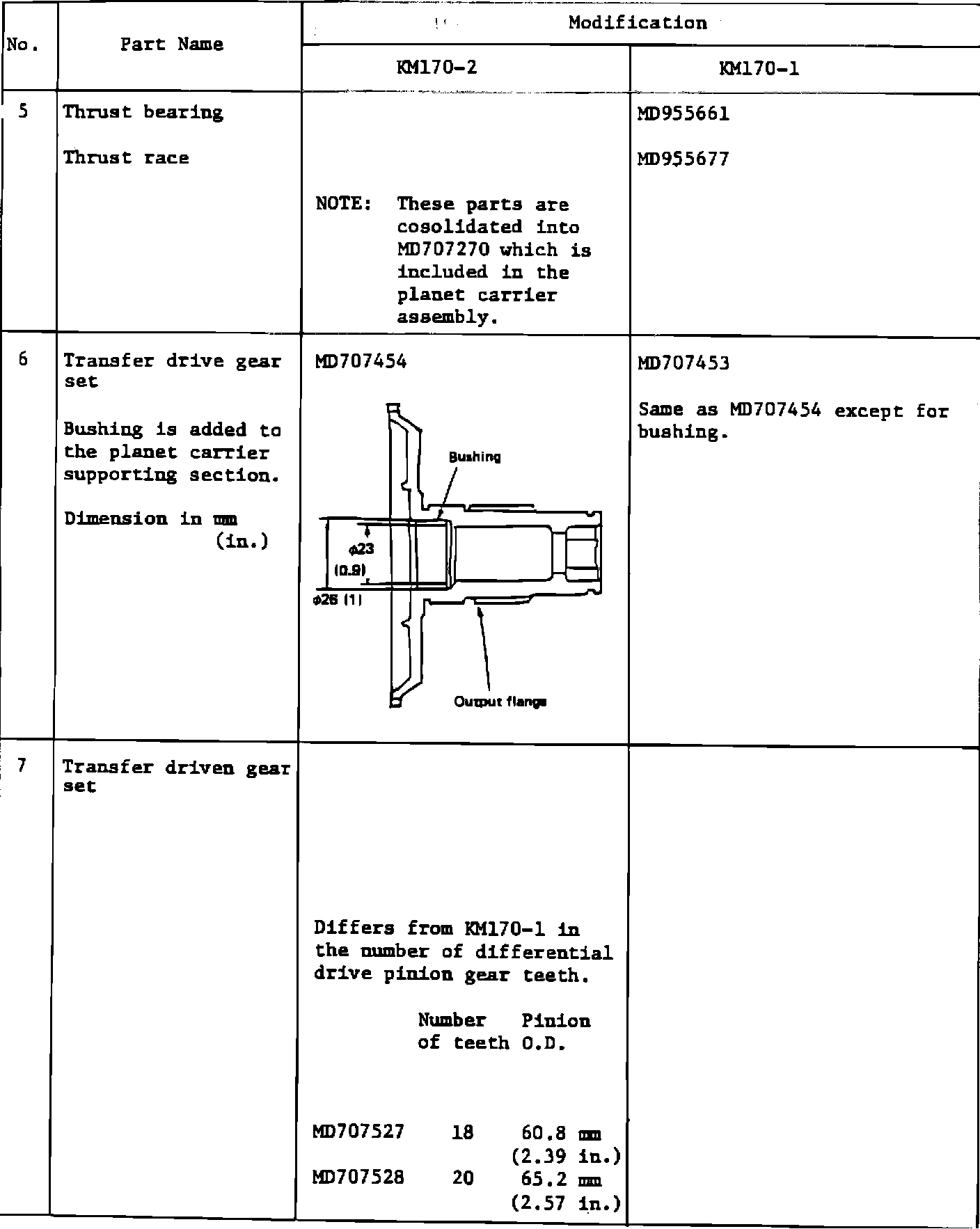

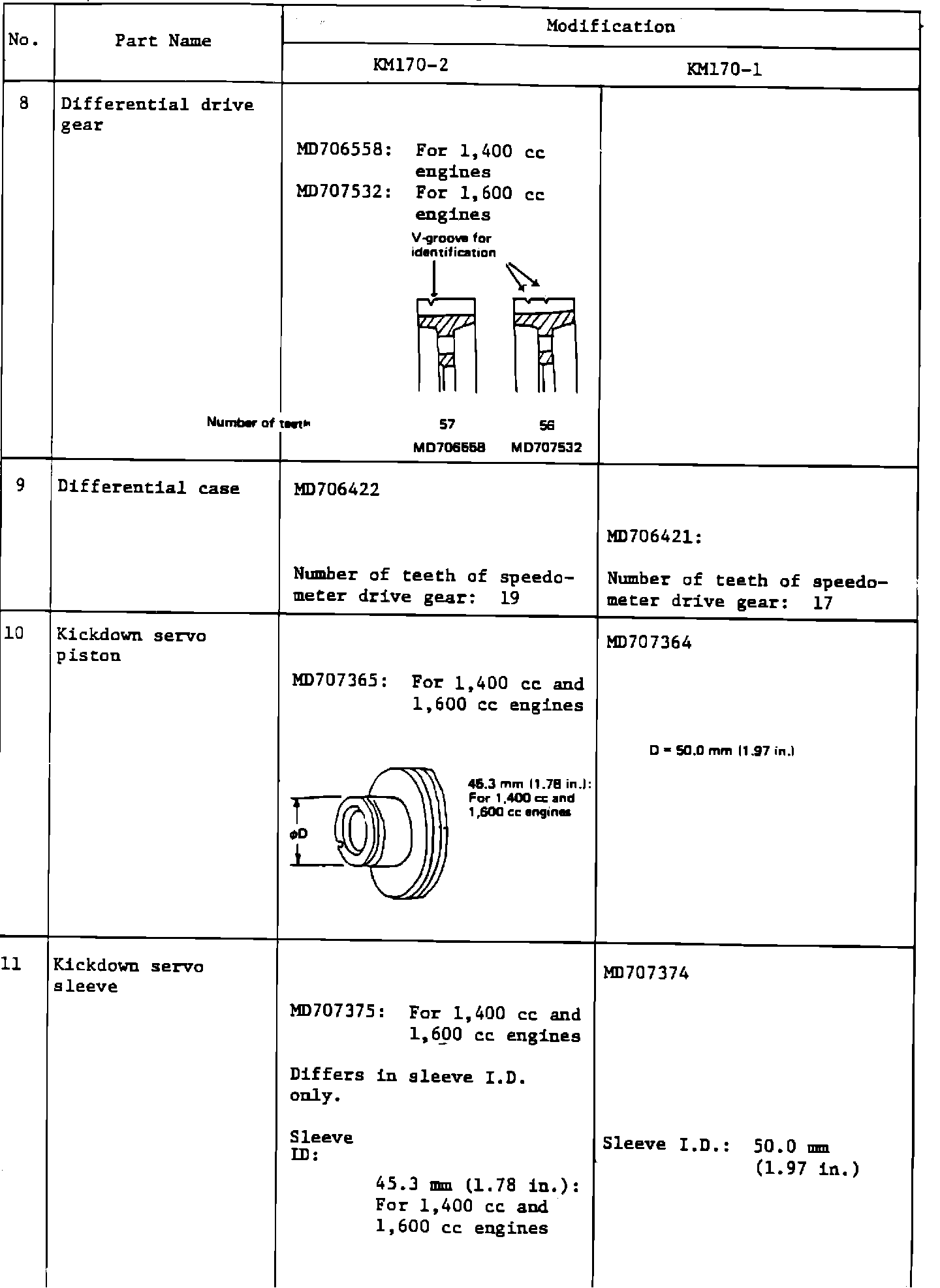

Details of Modification
