A/T Valve Body - Service Manual Revision

83chrysler4

Models


1983 Dodge, Plymouth Colt


Subject


Service Manual Revision - Automatic Transmission


Index


TRANSMISSION

Date May 16, 1983


No..

21-14-83

P-1487-C

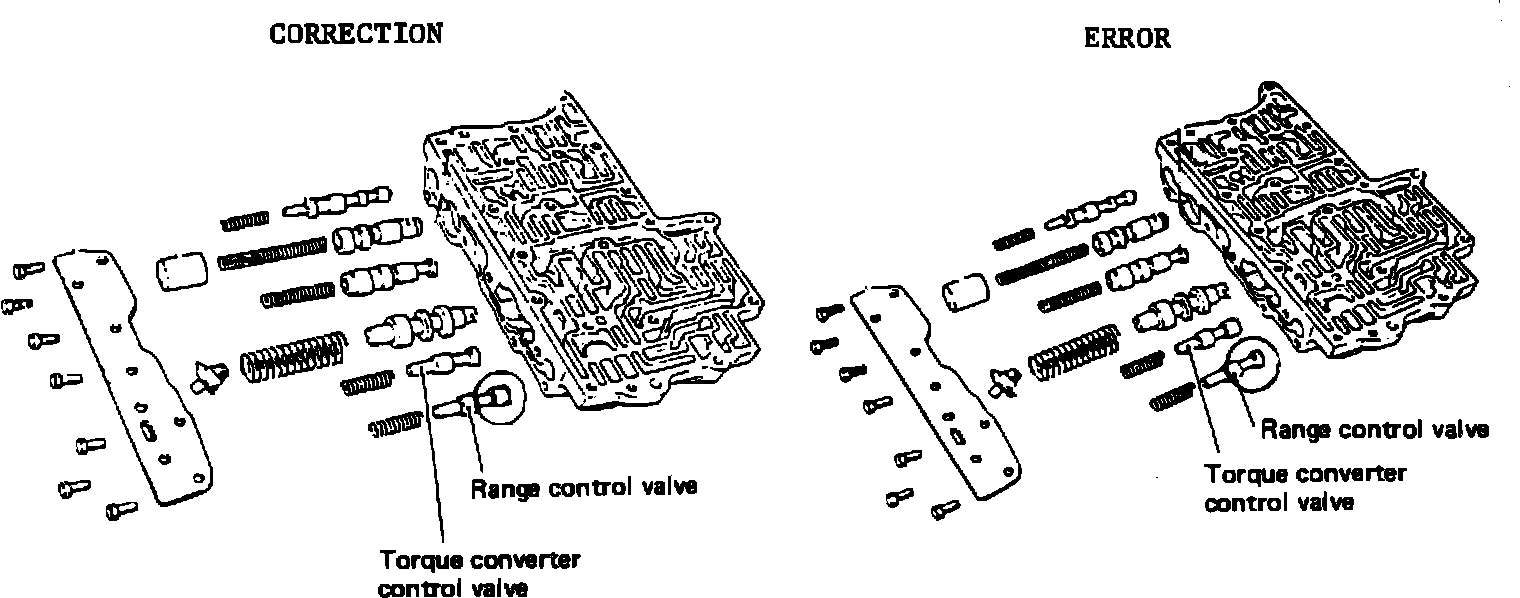

FIGURE 232:

The illustration of the valve body (Figure 232) on page 21-91 of the 1983 Colt Service Manual, #81-270-3006, is incorrect. The range control valve and the torque converter control valve have been interchanged as shown in the illustrations.


Please make a note of this condition on page 21-91 of your 1983 Colt Service Manual.
POLICY: Information only
