Removal

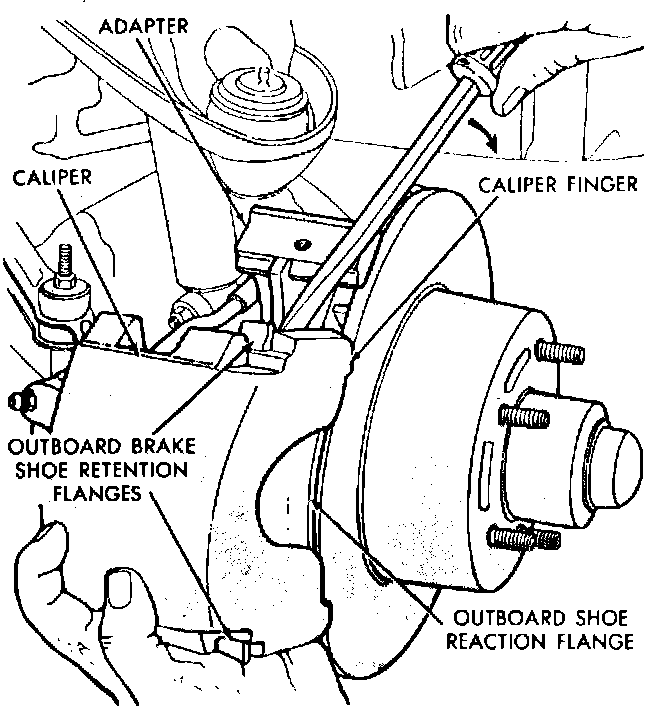

Fig. 4 Removing outboard shoe:

Fig. 5 Replacing inboard shoe:

1. Remove caliper assembly as outlined above.
2. Remove outboard shoe by prying between the shoe and the caliper fingers, since flanges on outboard shoe retain caliper firmly. Caliper should be supported to avoid damage to the flexible brake hose.
3. Remove inboard brake shoe from the adapter.
