Plymouth Truck
>>
2000
>>
Voyager V6-3.3L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>

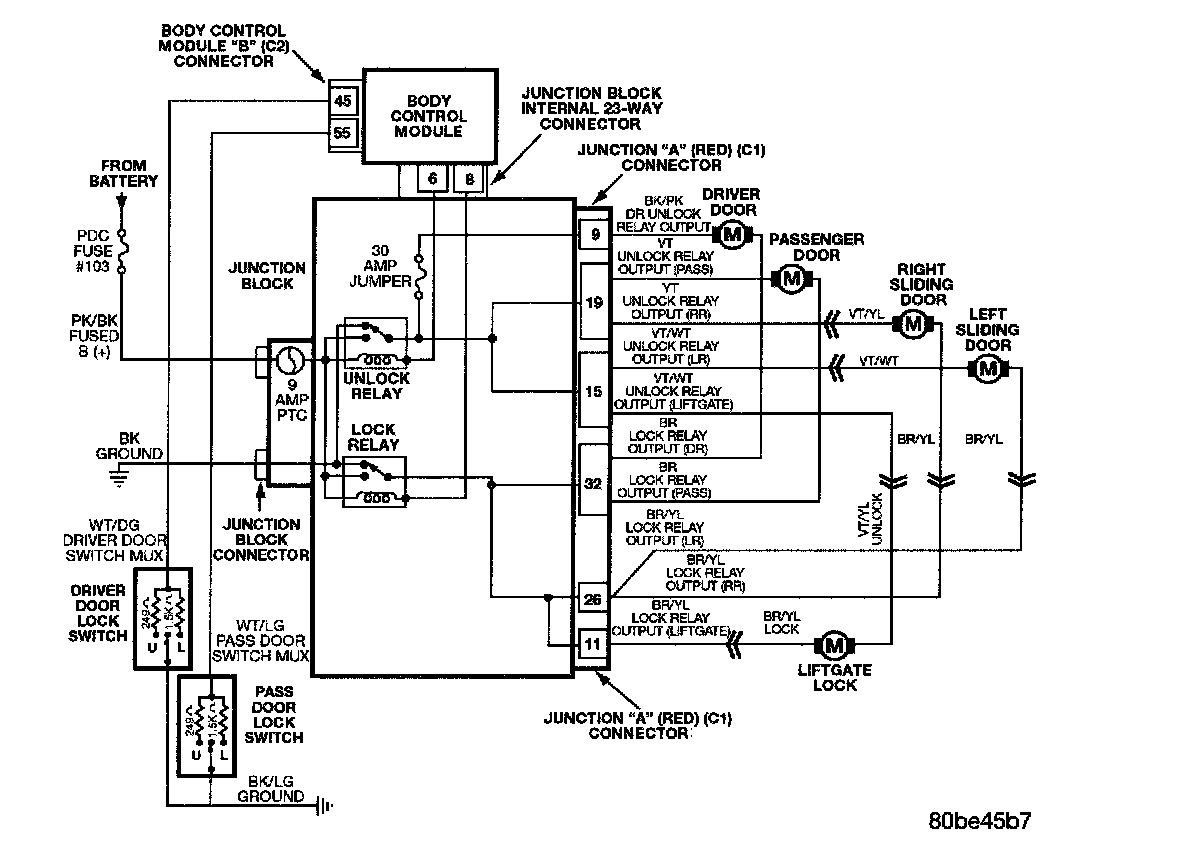

System Schematic
System Schematic
Power Door Lock With RKE:
Power Door Lock Without RKE:
