Canister Purge Solenoid: Service and Repair

REMOVAL

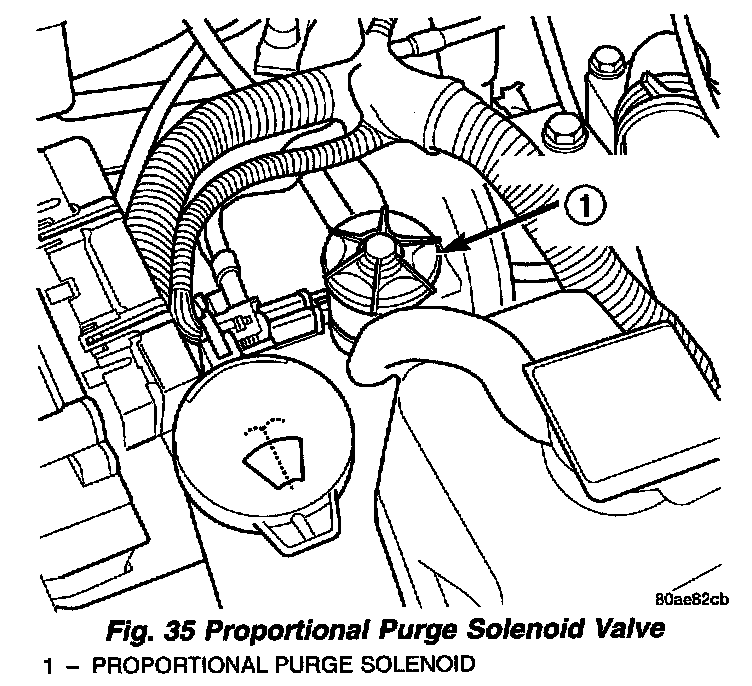

Fig. 35 Proportional Purge Solenoid Valve:

1. Remove vacuum hose and electrical connector from solenoid.
2. Pull solenoid up to remove it from mounting bracket.

INSTALLATION
Install solenoid to bracket and install vacuum hoses and electrical connector
