Air Distribution Duct-Heater Replacement
REMOVALQuarter Trim Panel:
Rear Heat-A/C Unit:
1. Remove quarter trim panel and D-pillar.

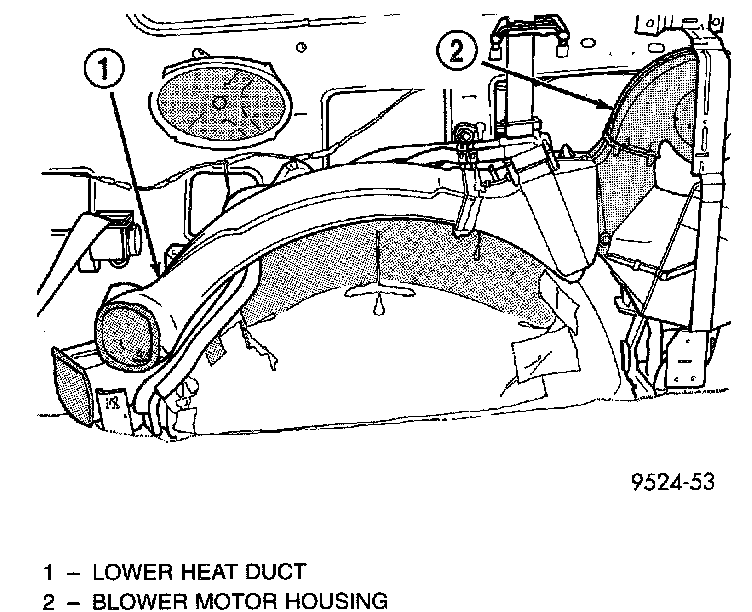

2. Remove screws securing lower heat duct to housing.
INSTALLATION
For installation, reverse the above procedures.
1. Remove quarter trim panel and D-pillar.
2. Remove screws securing lower heat duct to housing.
INSTALLATION
For installation, reverse the above procedures.
