Air Distribution Duct-A/C Replacement

REMOVAL

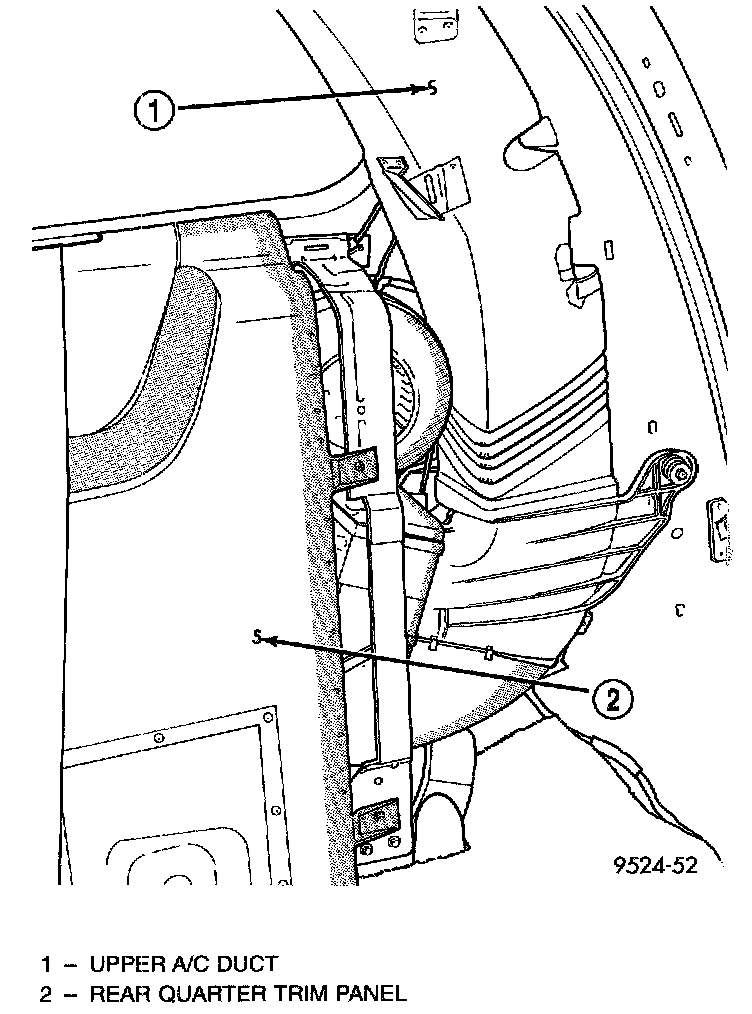

Quarter Trim Panel:

1. Remove quarter trim panel, D-pillar, and headliner.
2. Remove screws securing D-pillar duct to quarter panel. Pull duct up and away from unit.

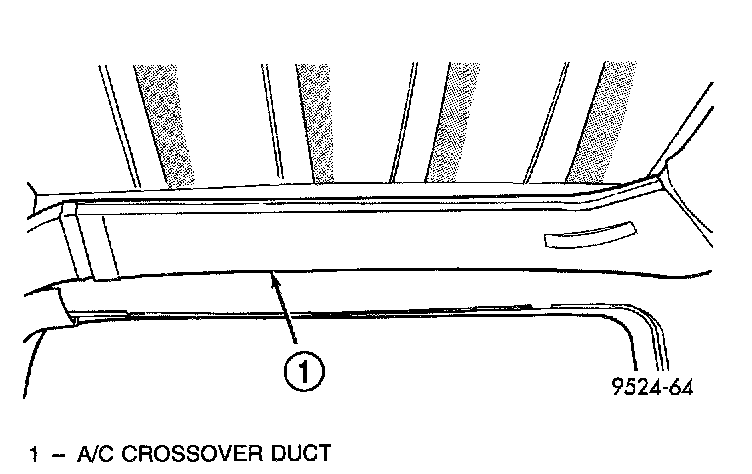

Rear Crossover Duct:

3. Remove screws securing duct to rear header.

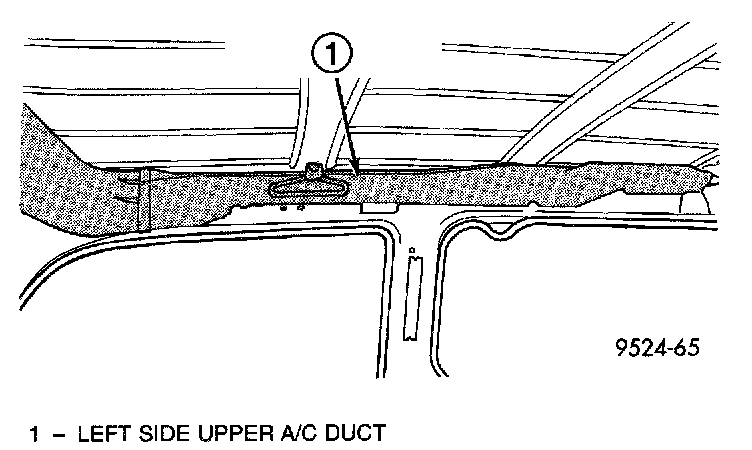

Upper A/C Duct:

4. Remove screws securing duct to right and left rails.

INSTALLATION
For installation, reverse the above procedures.
