Electrical Diagrams

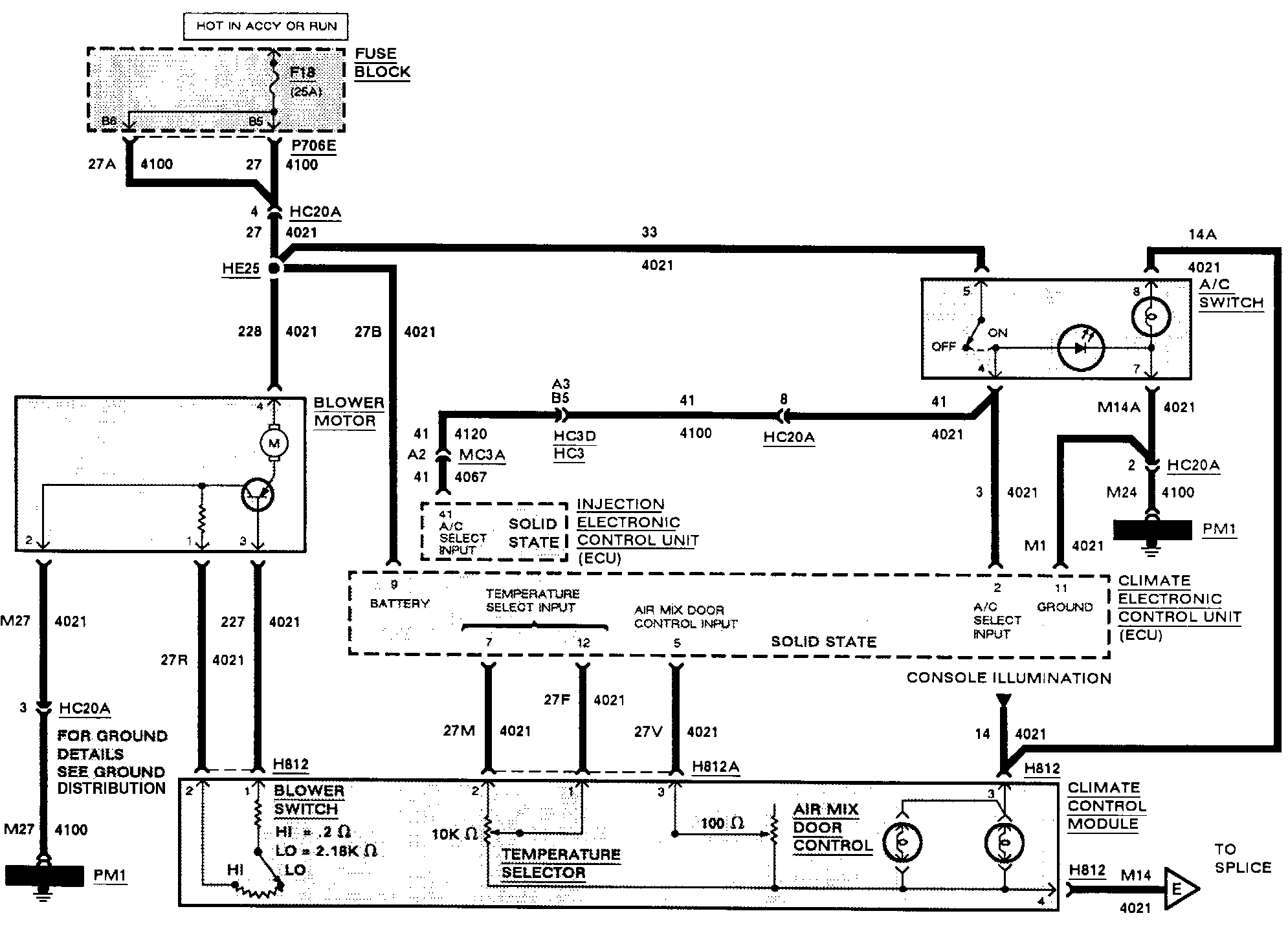

Climate Control Part 1:

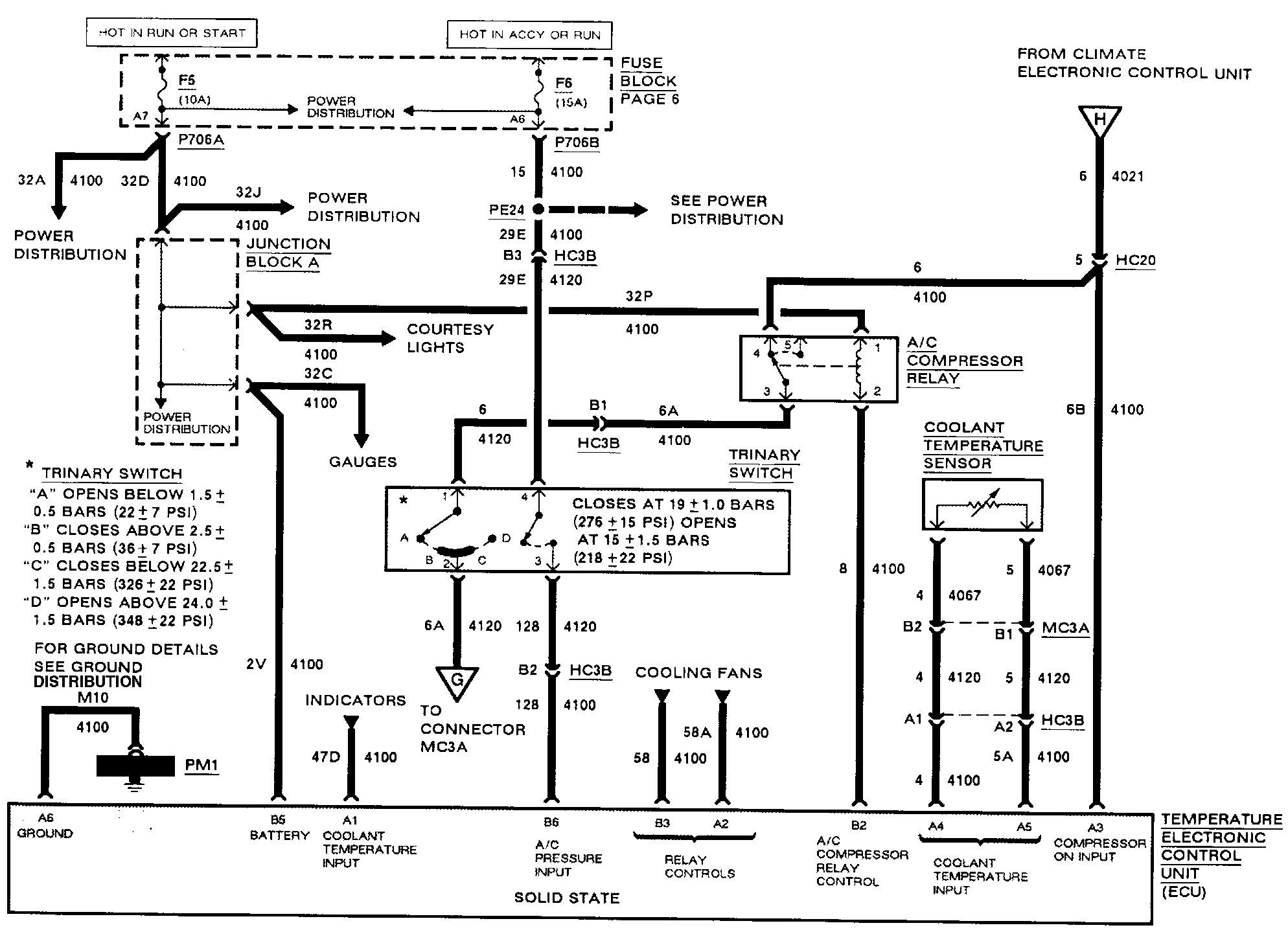

Climate Control Part 2:

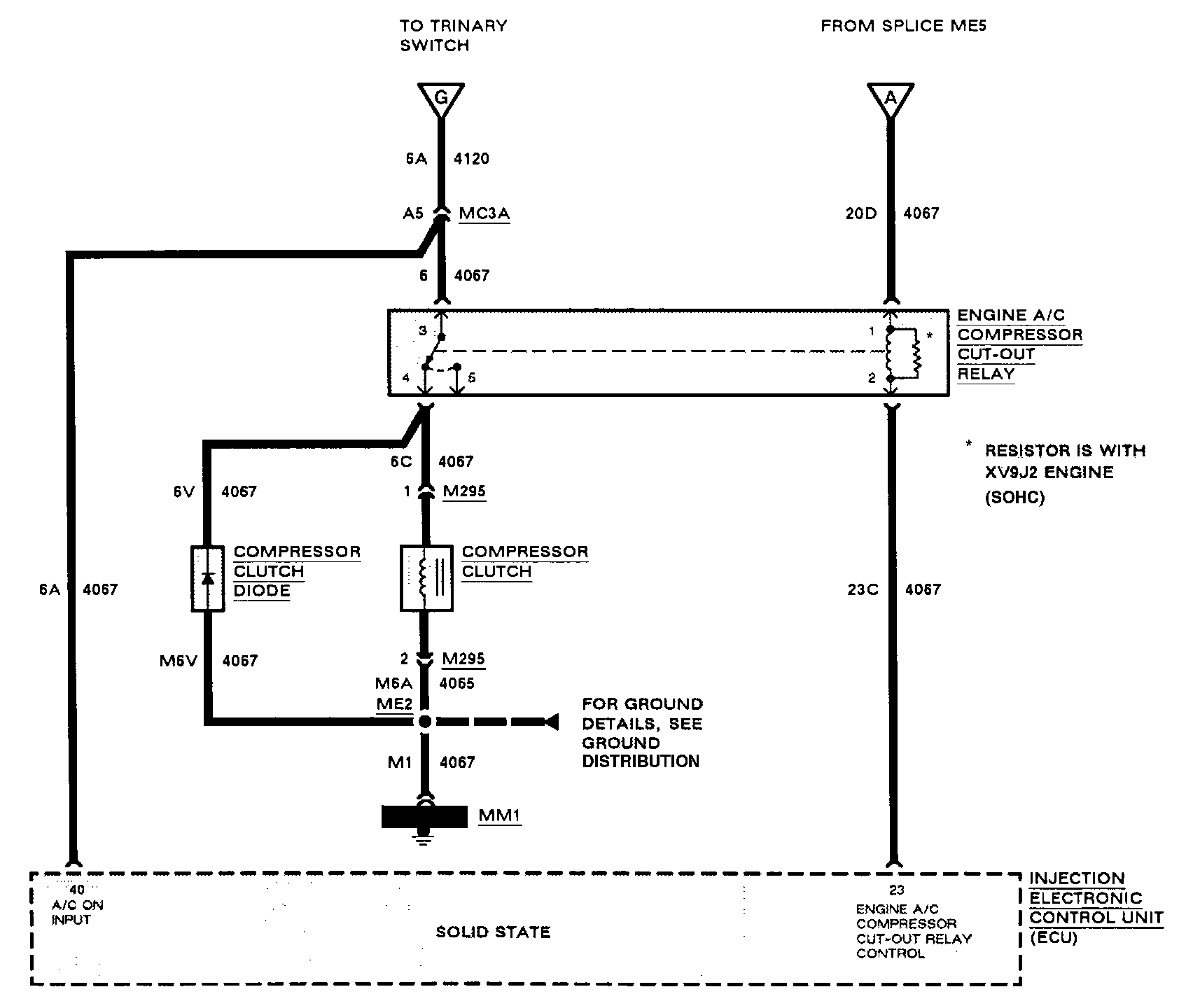

Climate Control Part 3:

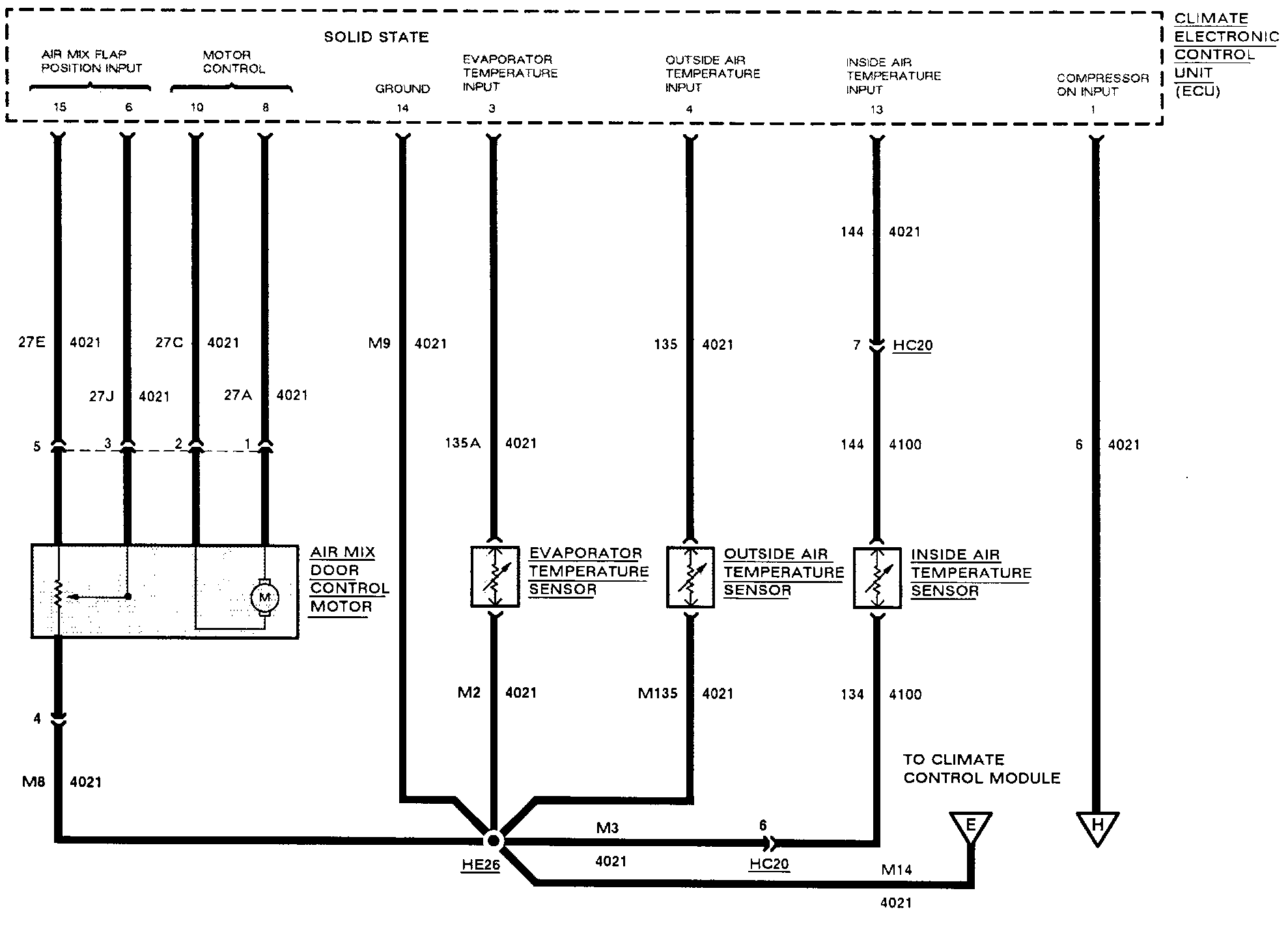

Climate Control Part 4:
