Peugeot
>>
1991
>>
505 L4-2165cc ZDJL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>

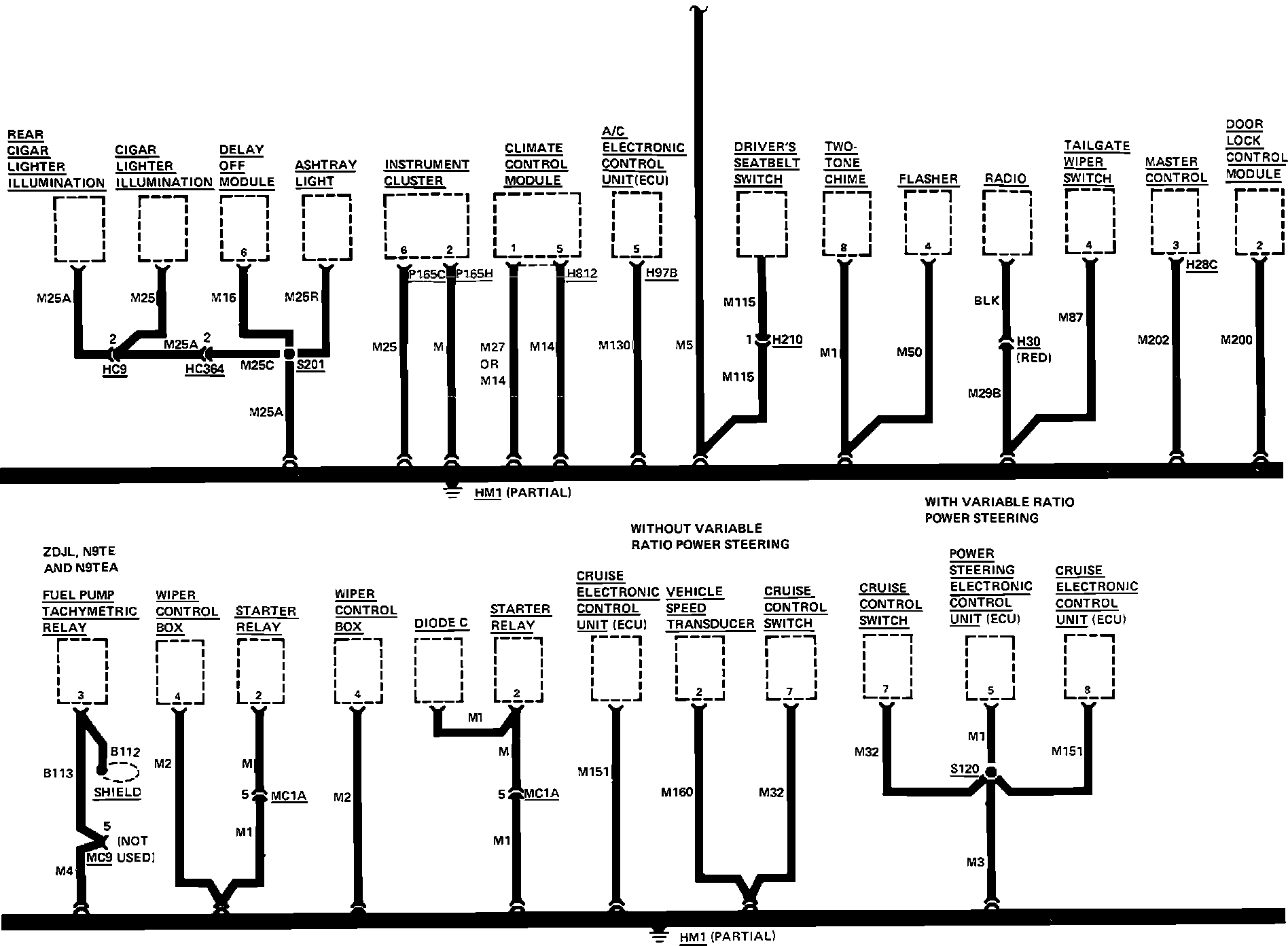

Grounds HM1
Grounds HM1
Grounds Wiring Circuit:
