Manual Linkage

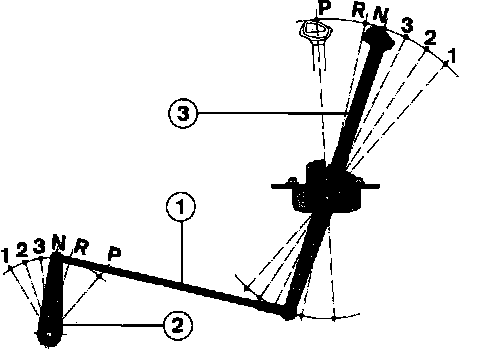

Fig. 1 Manual Linkage Adjustment:

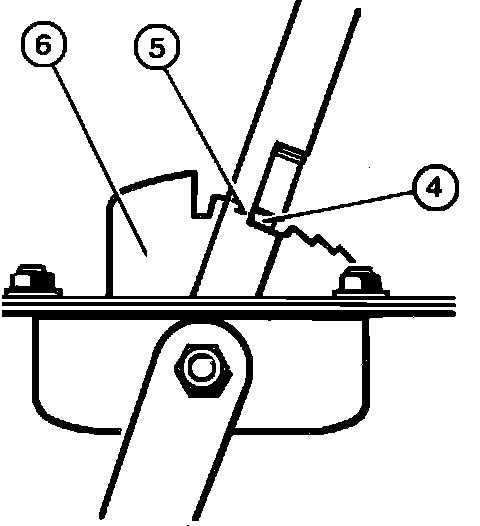

Fig. 2 Checking Manual Linkage Adjustment:

1. With link (1) disconnected, Fig. 1, lock transmission selector lever (2) in Neutral position.
2. Place shift lever (3), into Neutral position with locking pin (4), Fig. 2, contacting stop (5).
3. Adjust length of link (1), Fig. 1, to obtain proper adjustment.
4. With locking pin (4), Fig. 2, lifted, set lever to neutral.
5. Release selector handle (3), Fig. 1, locking pin should drop into Neutral slot with maximum clearance of .020 inch between pin and front stop (5), Fig. 2, of corresponding gate notch.
