Refrigerant Pressure Sensor / Switch
>>
Diagrams
>>
Electrical Diagrams
>>
Manual
Manual

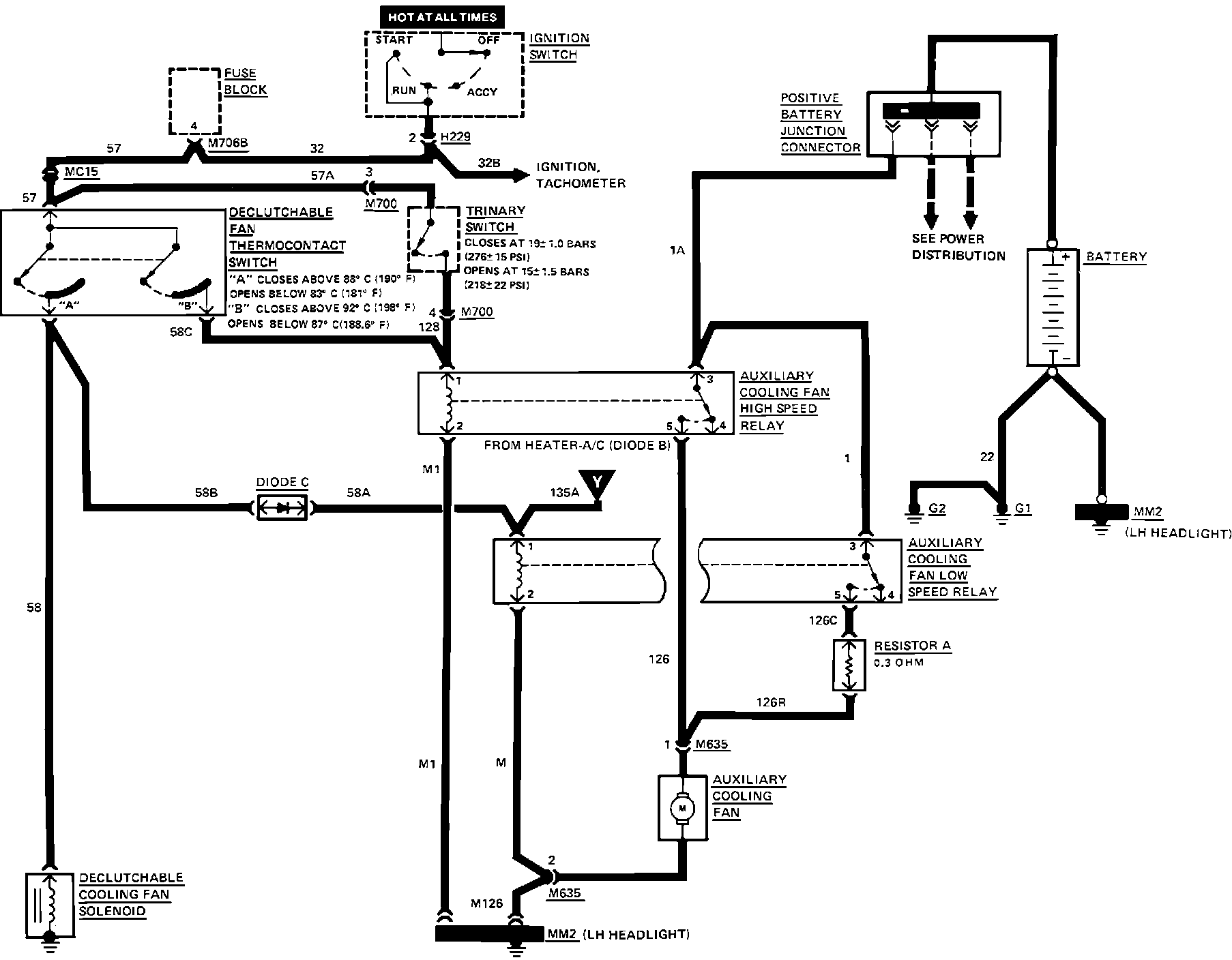

Cooling Fan Wiring Circuit:
