505 L4-2155cc N9te
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Refrigerant Pressure Sensor / Switch
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic
Automatic

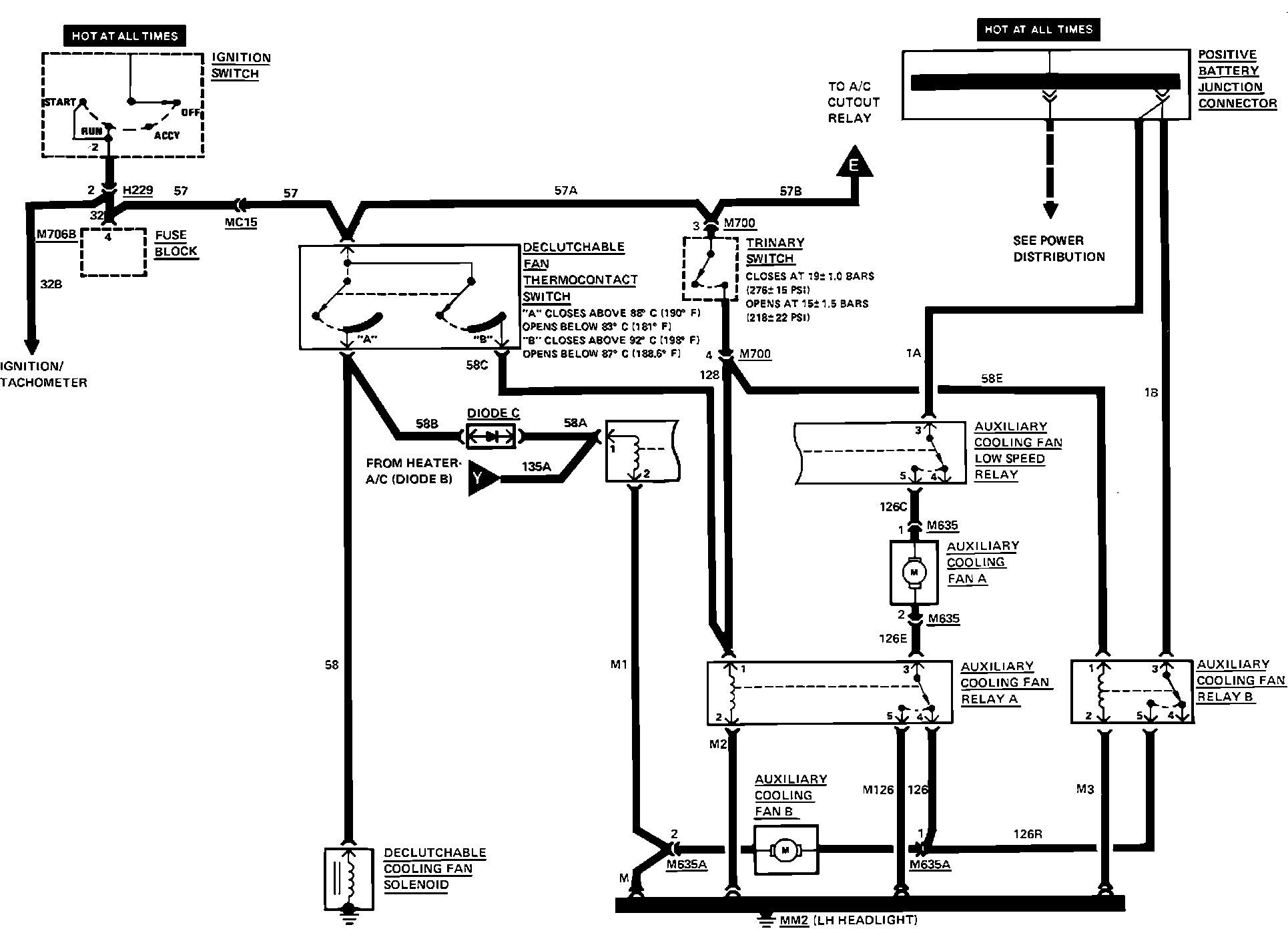

Cooling Fan Wiring Circuit:
