Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Peugeot
>>
1990
>>
505 L4-2155cc N9te
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Ground MM2
Ground MM2

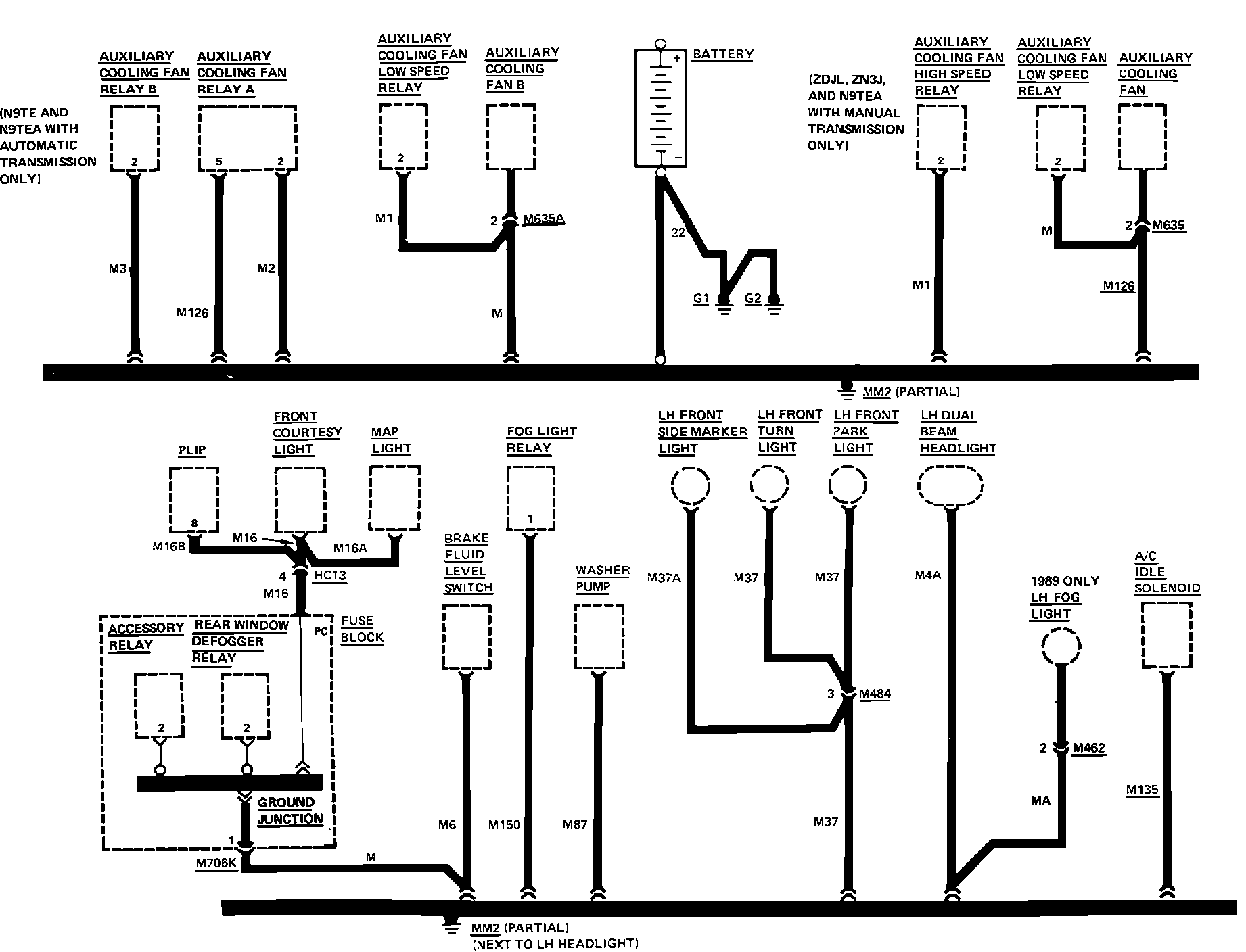

Grounds Wiring Circuit:
