Brake Light Switch
Brake Light Switch
Indicators, Gauges Wiring Circuit:

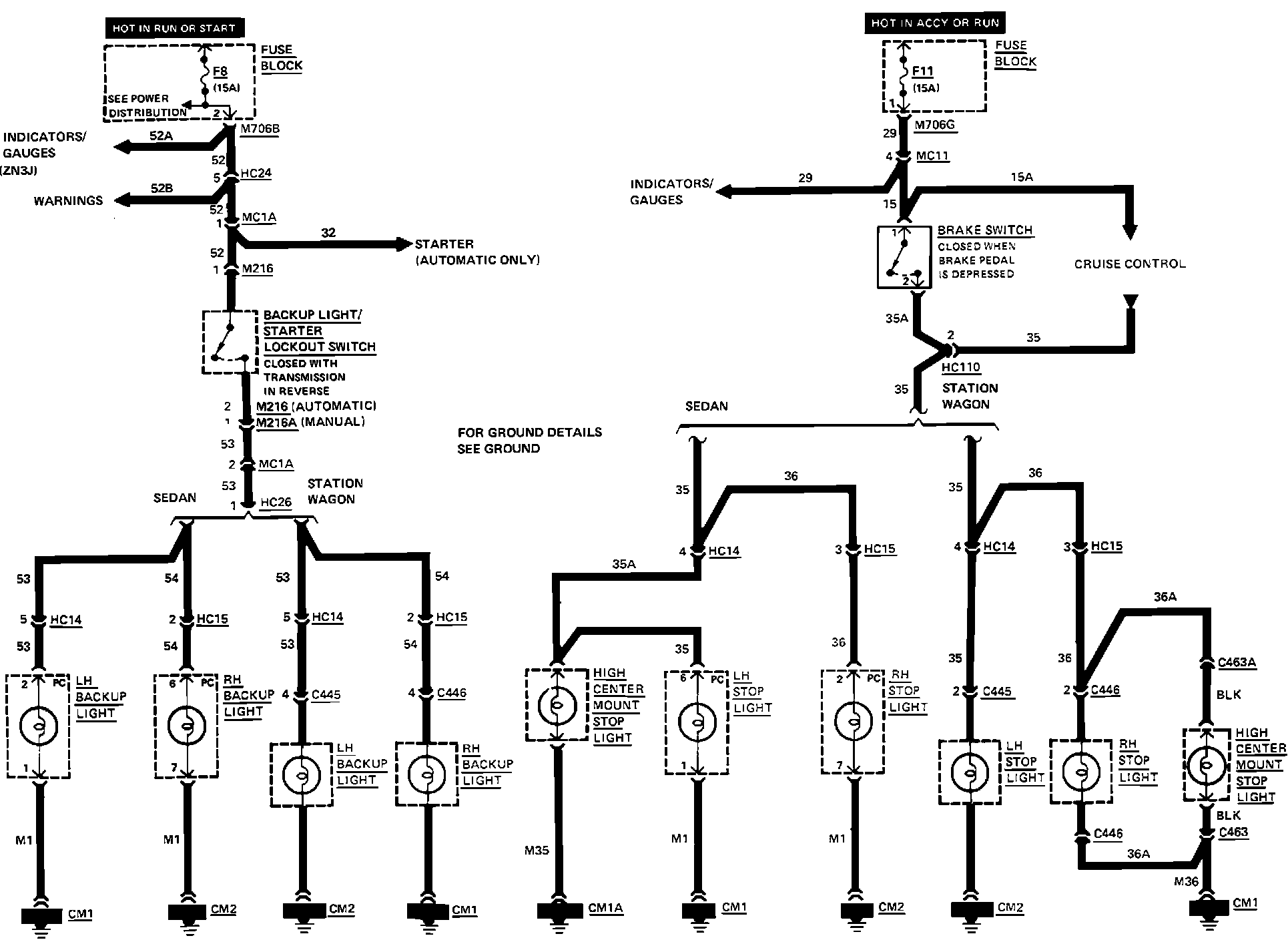

Back-Up & Stop Lights Wiring Circuit:
