Brake Band

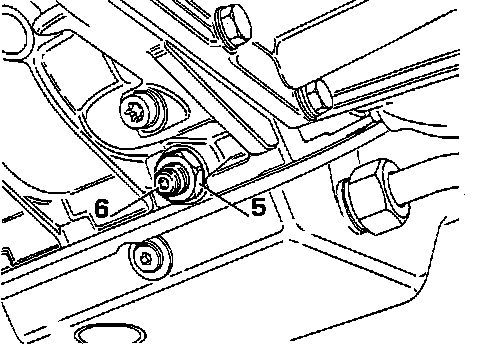

Fig. 10 Brake Band Adjustment:

This adjustment should only be performed in cases where there is doubt about the adjustment or fluid leakage.

1. Loosen nut (5) and screw (6), Fig. 10.
2. Torque screw (6) to 7 ft. lbs., then loosen two complete turns.
3. Tighten nut (5).
