License Plate, Rear - Installation Kit Available
89peugeot06BULLETIN NO. 354
DATE: July, 1989
SUBJECT: INSTALLATION OF REAR LICENSE PLATE
MODELS: 1990 MODEL YEAR 405 SPORTSWAGONS
The tailgate on the 405 Sportswagons is fitted with threaded inserts to facilitate the installation of the rear license plate.
However, on early production vehicles, the required mounting hardware was omitted from the license plate bracket accessory kit provided with each new car.
The following parts are required:
4 License plate screws P/N 0074.01
(6mm diameter, 1.00mm thread pitch, 20mm long)
4 Plastic spacers P/N 0074.02
4 Rubber seals P/N 0074.03

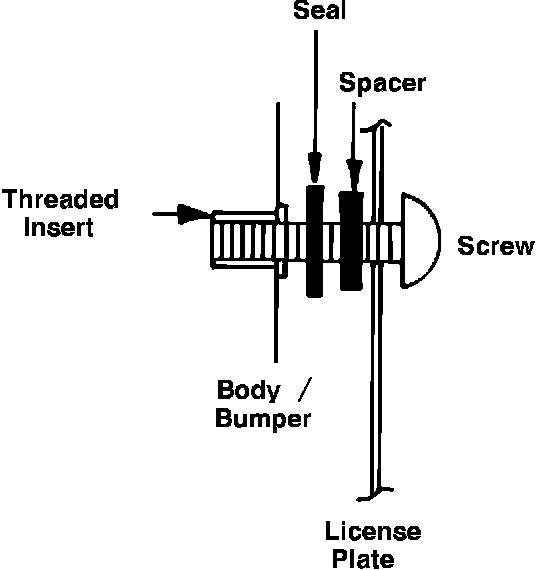

INSTALLATION: As per illustration
