Engine Oil Cooler - Positive Locating

91peugeot02

BULLETIN NO. 410


DATE: MARCH, 1991


SUBJECT: POSITIVE LOCATING OF ENGINE OIL COOLER

MODELS: 405 Mi16 VEHICLES

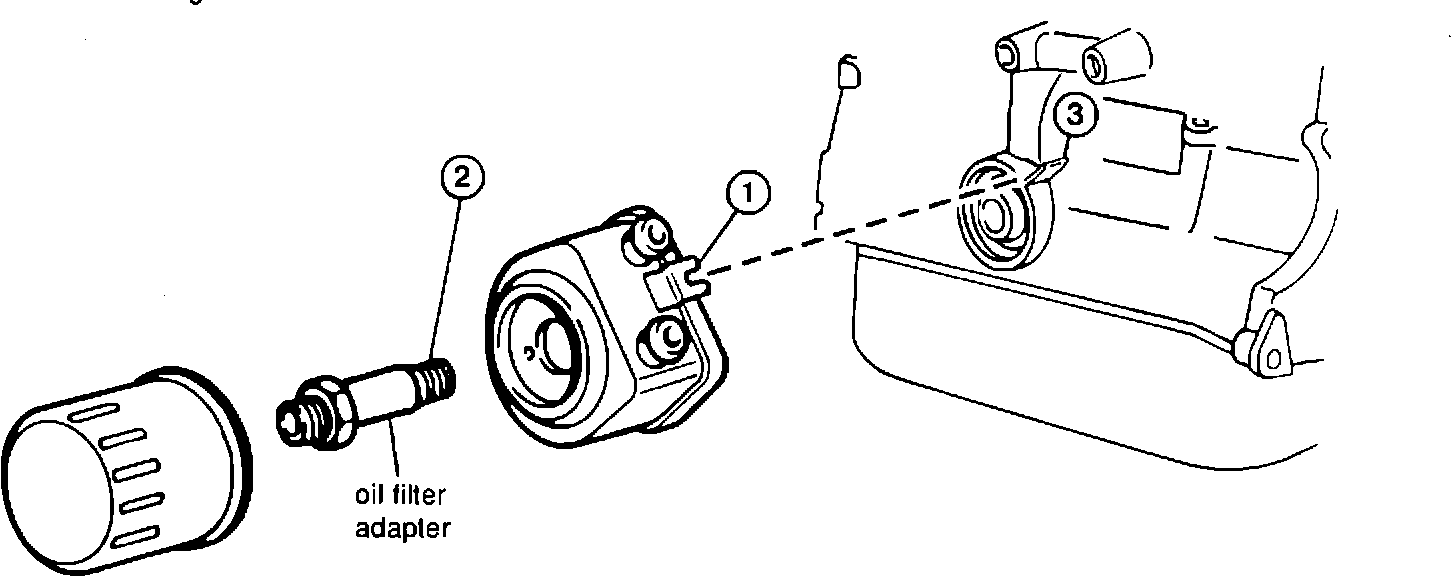

Beginning with October, 1990 production, the engine oil ccoler (1) is now fitted with a locating fork which engages a tab (3) cast into the engine block. This new fitting improves the retention of the engine oil cooler during removal of the oil filter.


REPAIR:

When replacing an engine oil cooler, it is necessary to observe the following:


On earlier model vehicles (without the tab cast into the engine block), position the cooler (1) as shown above (rotate approximately 30 degrees clockwise from straight up)

Make sure there is no interference between the engine oil cooler, detonation sensor, PCV hose, etc.

On all models, be sure to fully degrease the oil filter adapter threads (2) and coat with Loctite before installing

Torque adapter to 6.0 mdaN (44 ft.lbs.)
