Brake Pads, Rear - Replacement

[08]

19

BULLETIN NO. 470

DATE:
FEBRUARY, 1995

SUBJECT:
REPLACEMENT REAR BRAKE PADS

MODELS:
ALL 405 VEHICLES

As of January 1, 1995, replacement rear brake pads (P/N 4250.56) may be supplied with or without pre-drilled holes for the expander springs. In either case, these brake pads are compatible with and should be installed on all 405 vehicles.

If you should encounter a repair in which the vehicle is equipped with expander springs and the replacement pads do not have the pre-drilled holes, simply eliminate the expander springs.

NOTE:
1992 M.Y. 405 vehicles no longer use these springs as original equipment.

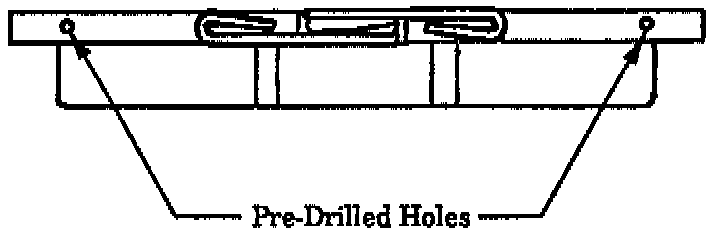

The drawing shows the location of the pre-drilled holes.

Top View of
Brake Pad
