Electrical Diagrams

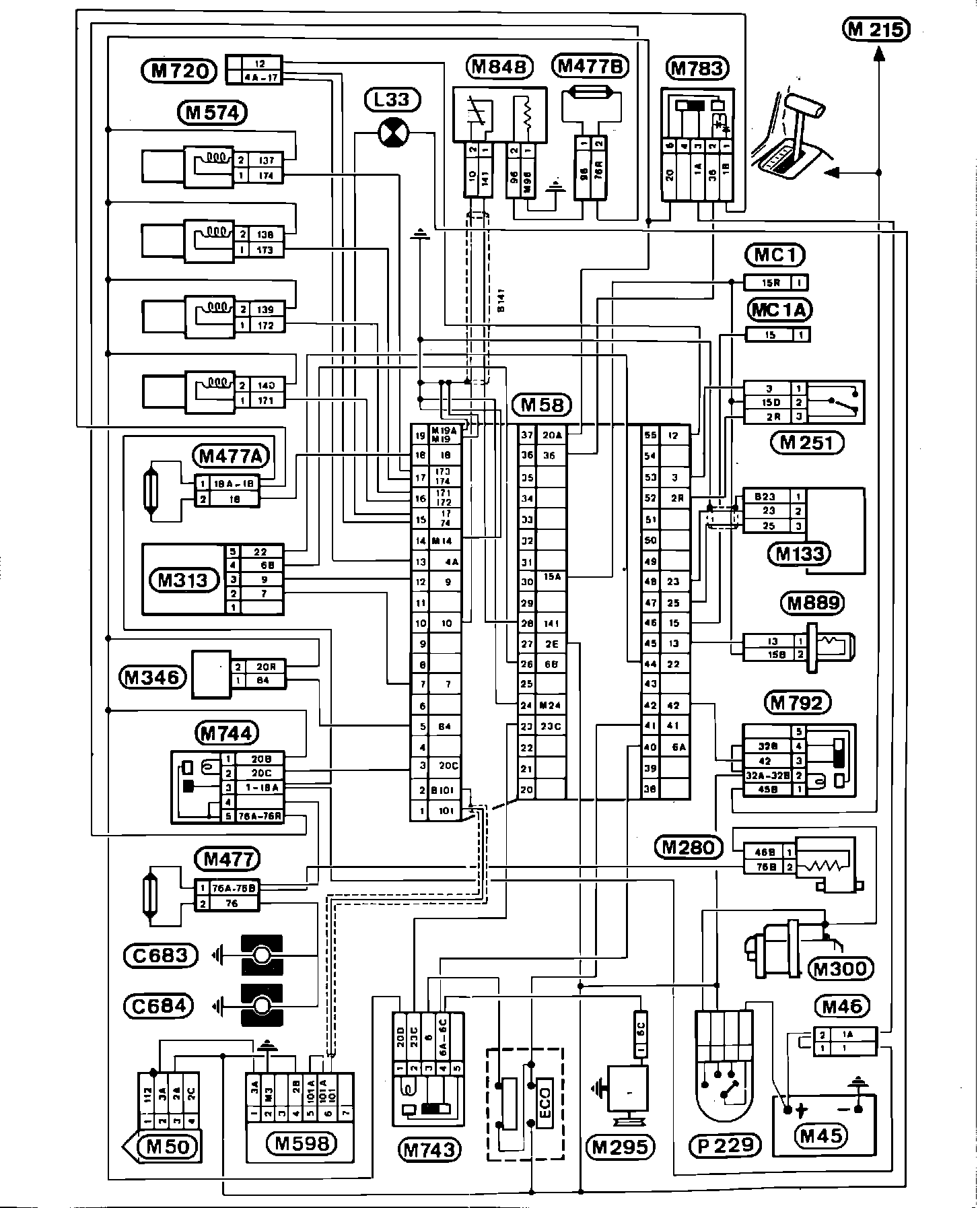

System Electrical Diagram:

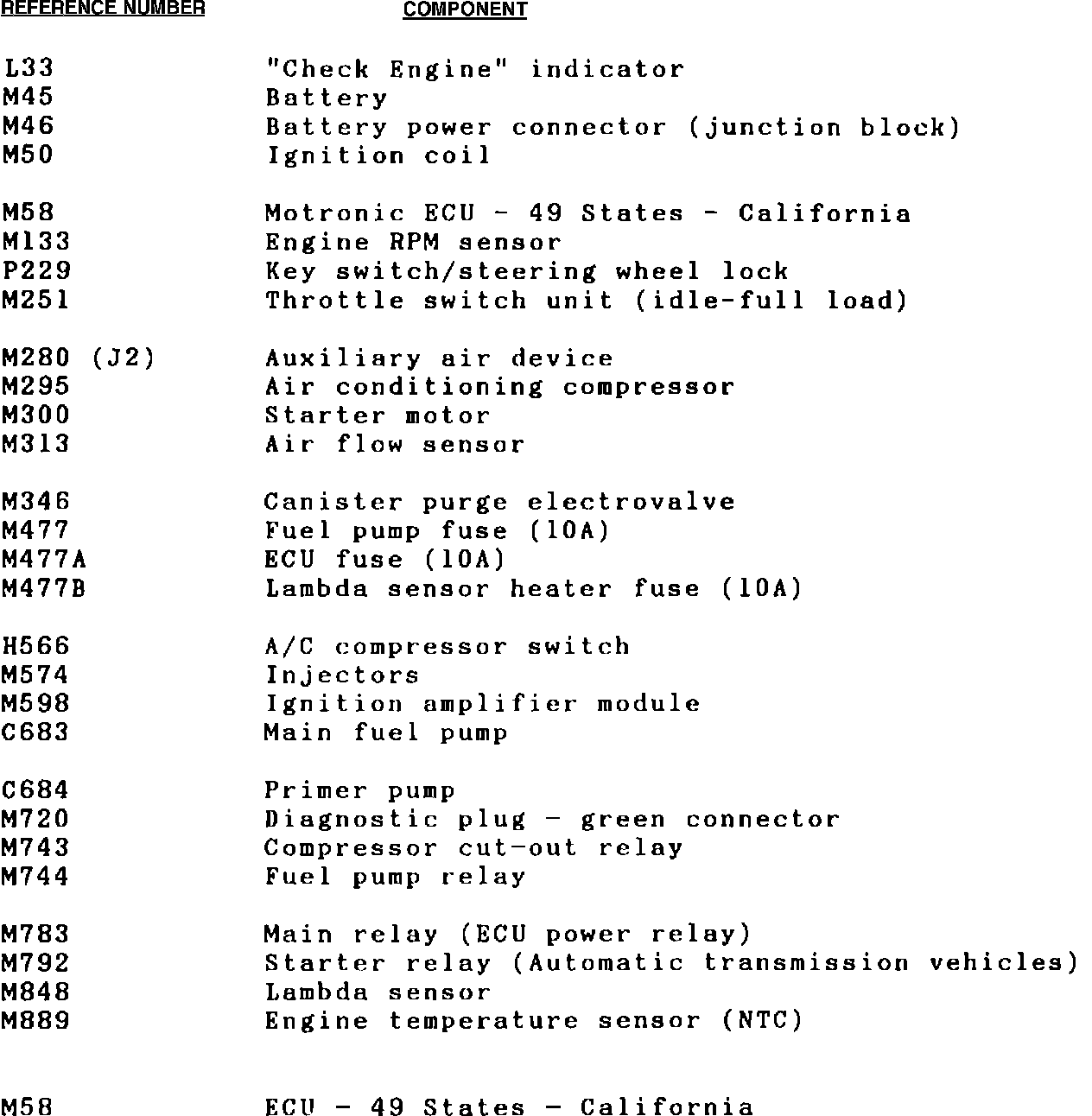

Component Reference Chart:
ENGINE ELECTRICAL SYSTEM DIAGRAM
