Pinout Values and Diagnostic Parameters

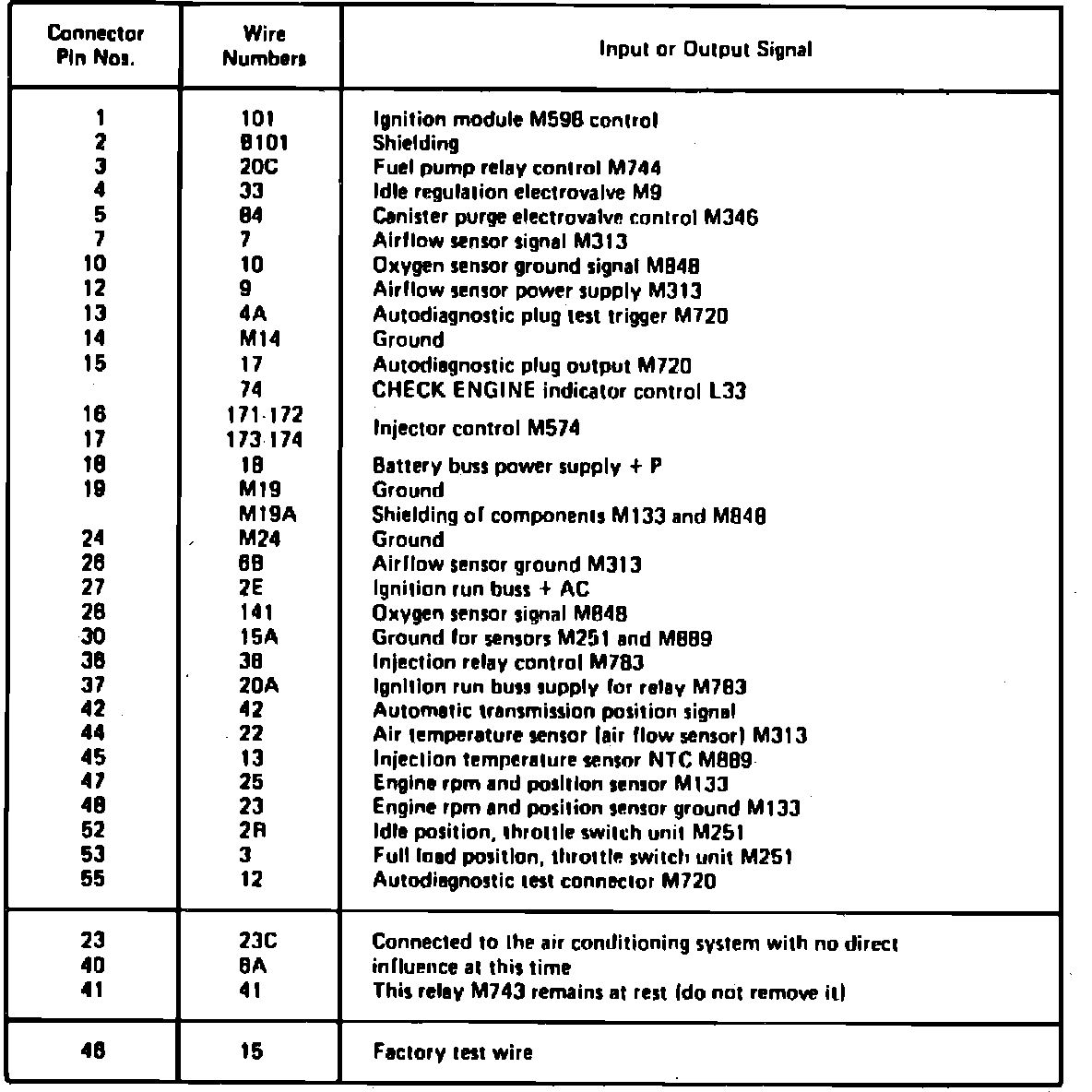

Refer to ELECTRICAL AND ELECTRONIC DIAGRAMS and above figure for ECU pin connector identification in order to perform the following component tests. Do not insert voltmeter or ohmmeter test leads into the receiving end of any component connector. Remove connector cover and connect test leads where the wire enters the connector.
