Electrical Diagrams

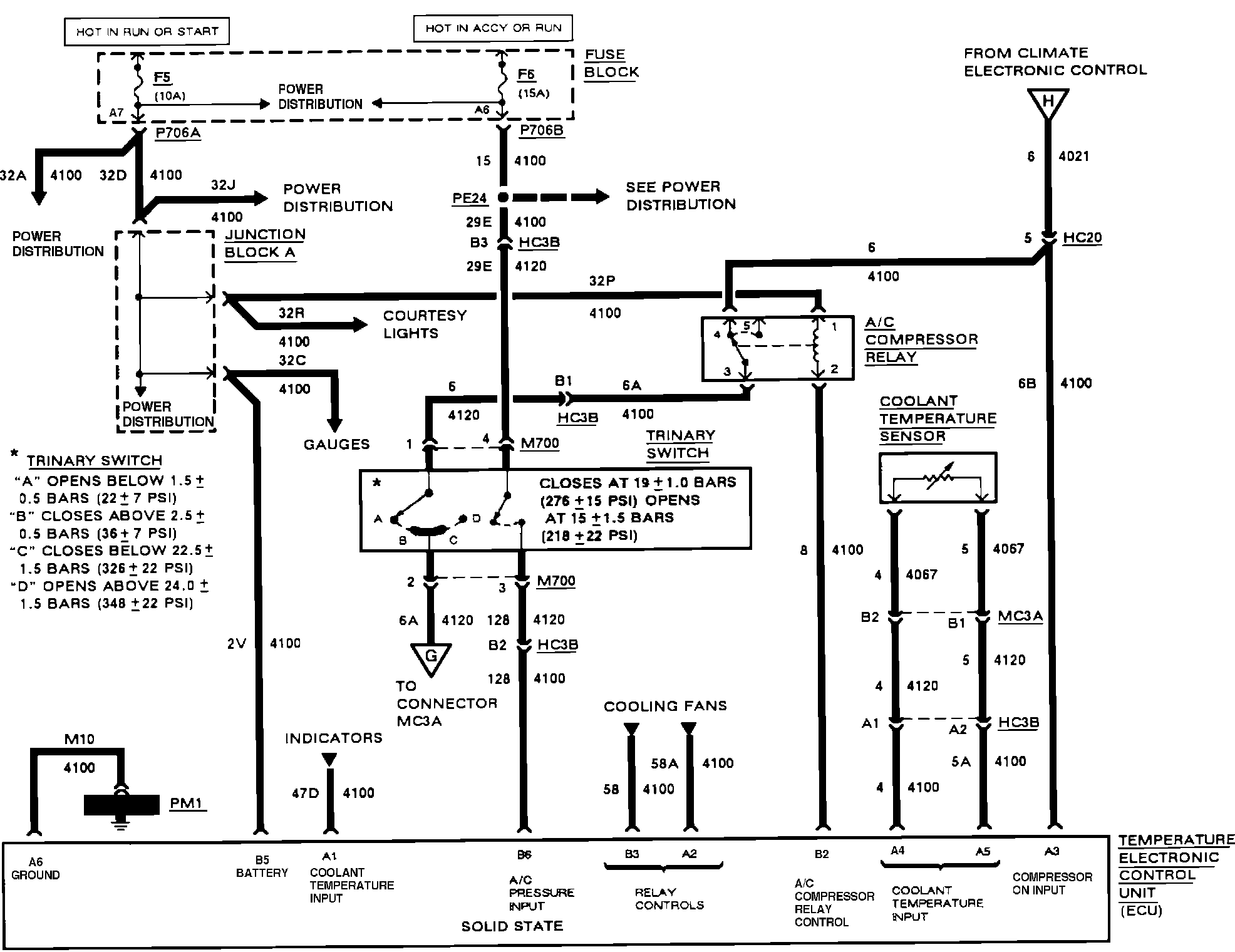

Climate Control. Part 1:

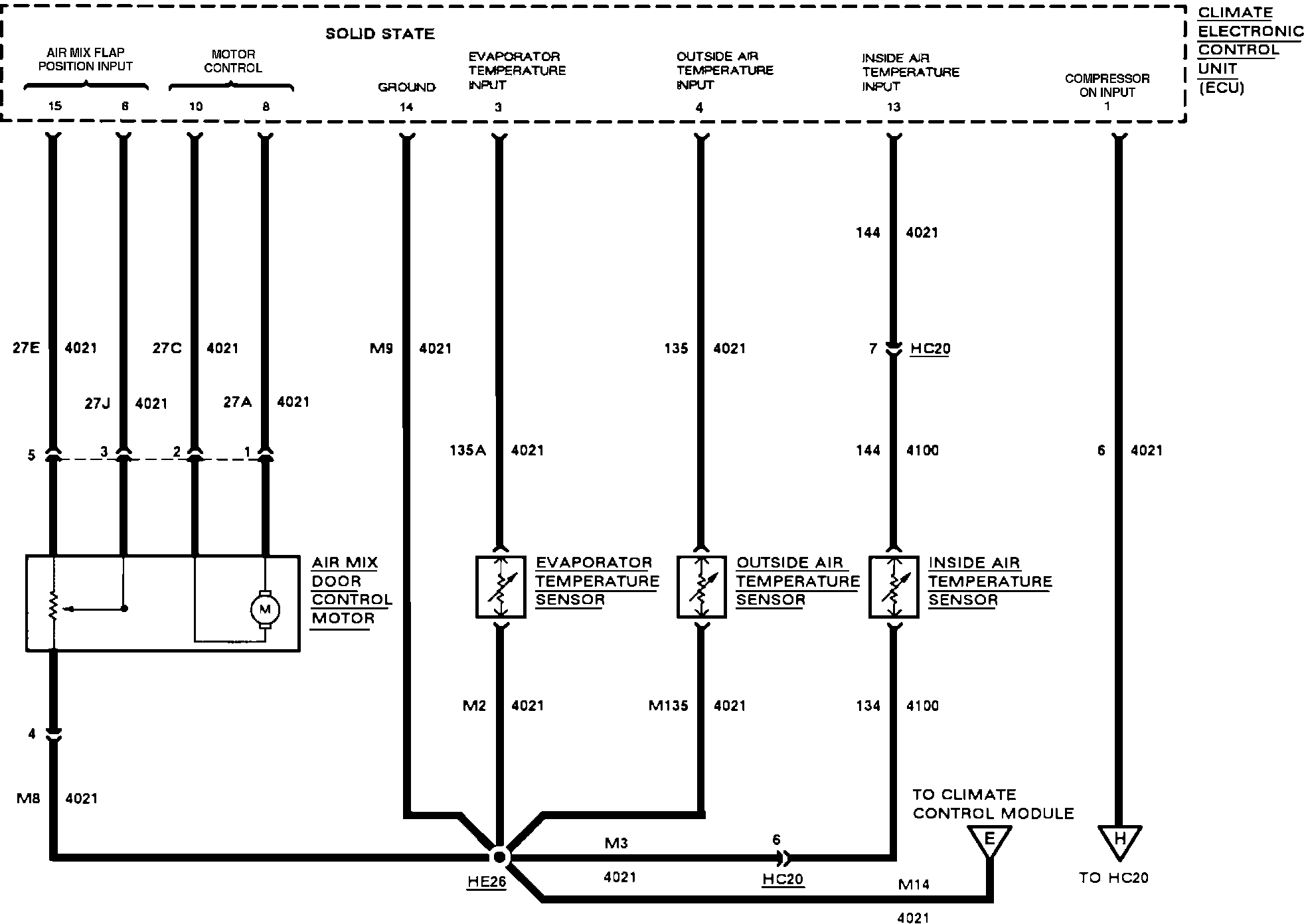

Climate Control. Part 2:

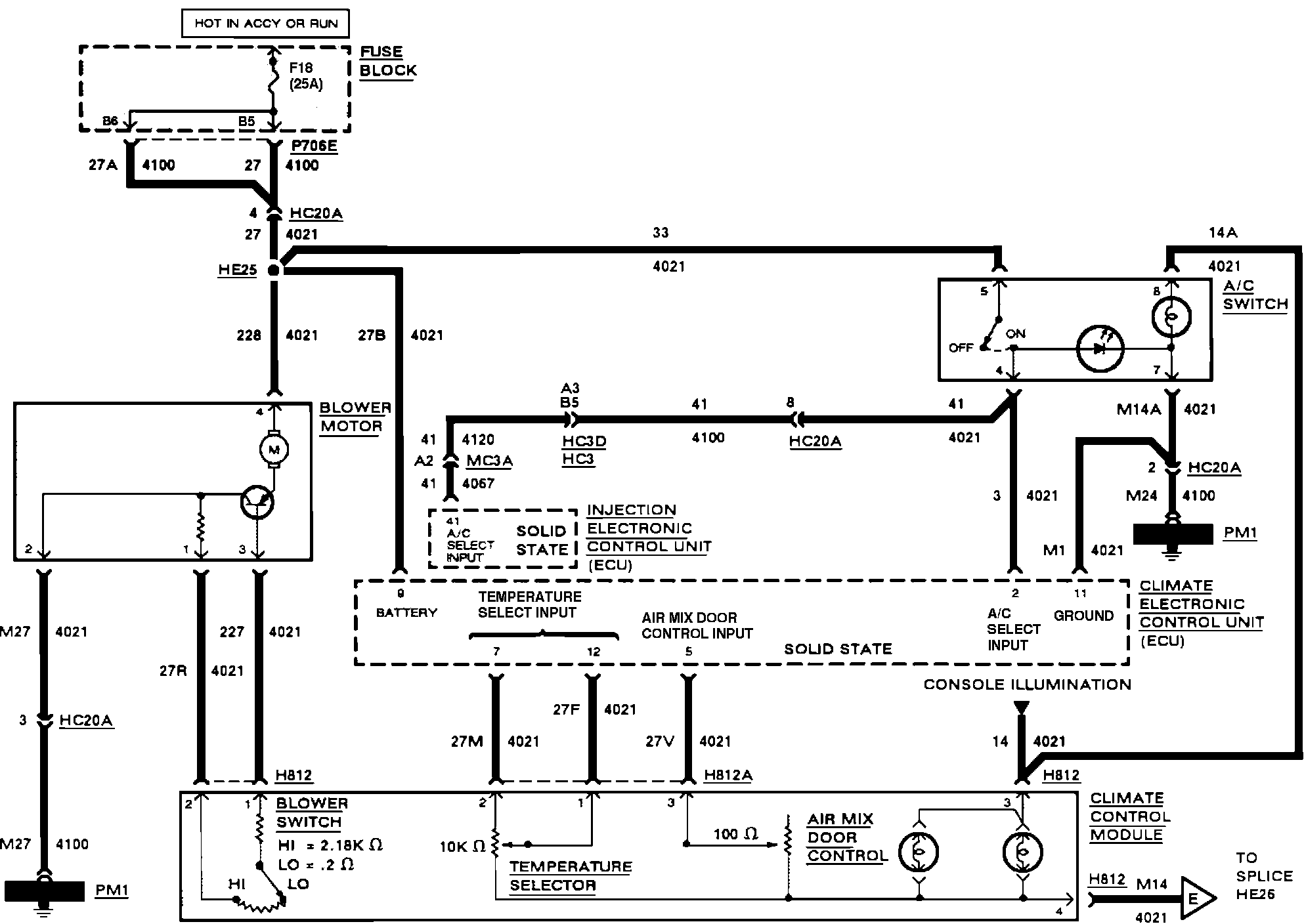

Climate Control. Part 3:

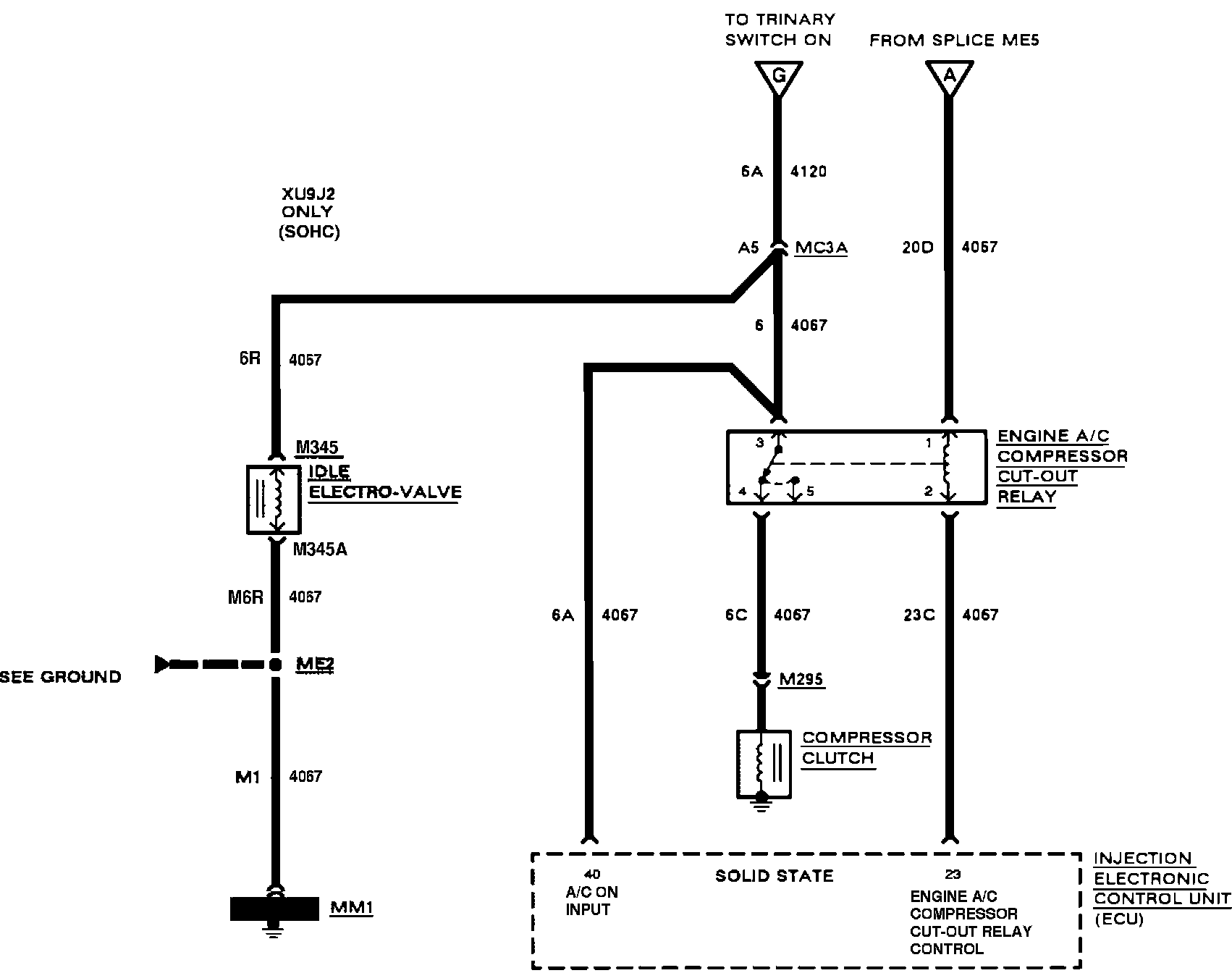

Climate Control. Part 4:
