Home
>>
Peugeot
>>
1990
>>
405 L4-1905cc 1.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuses 13 and 14
Fuses 13 and 14

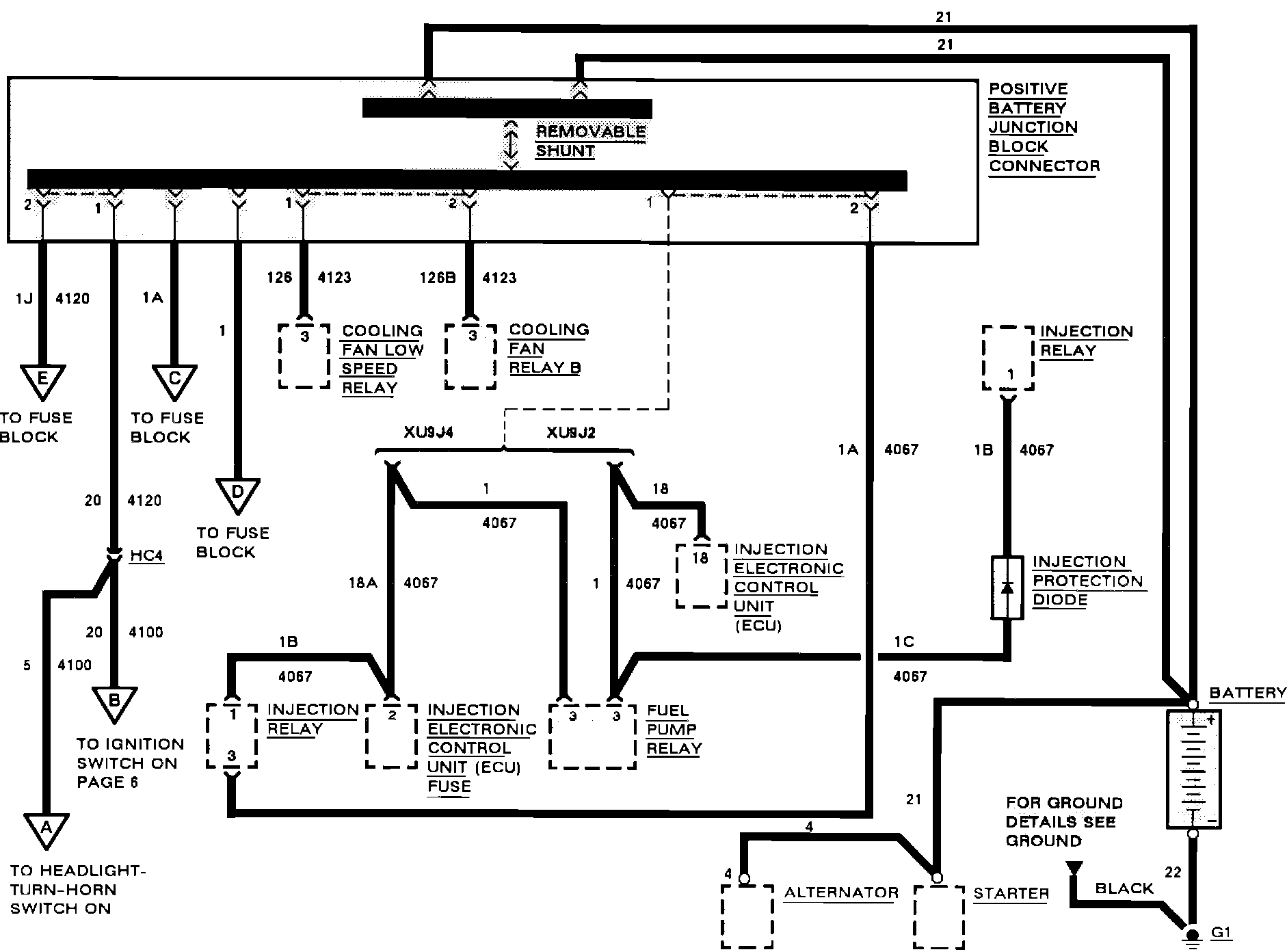

Power Distribution:
Power Distribution:
Power Distribution:
