Less Remote Control

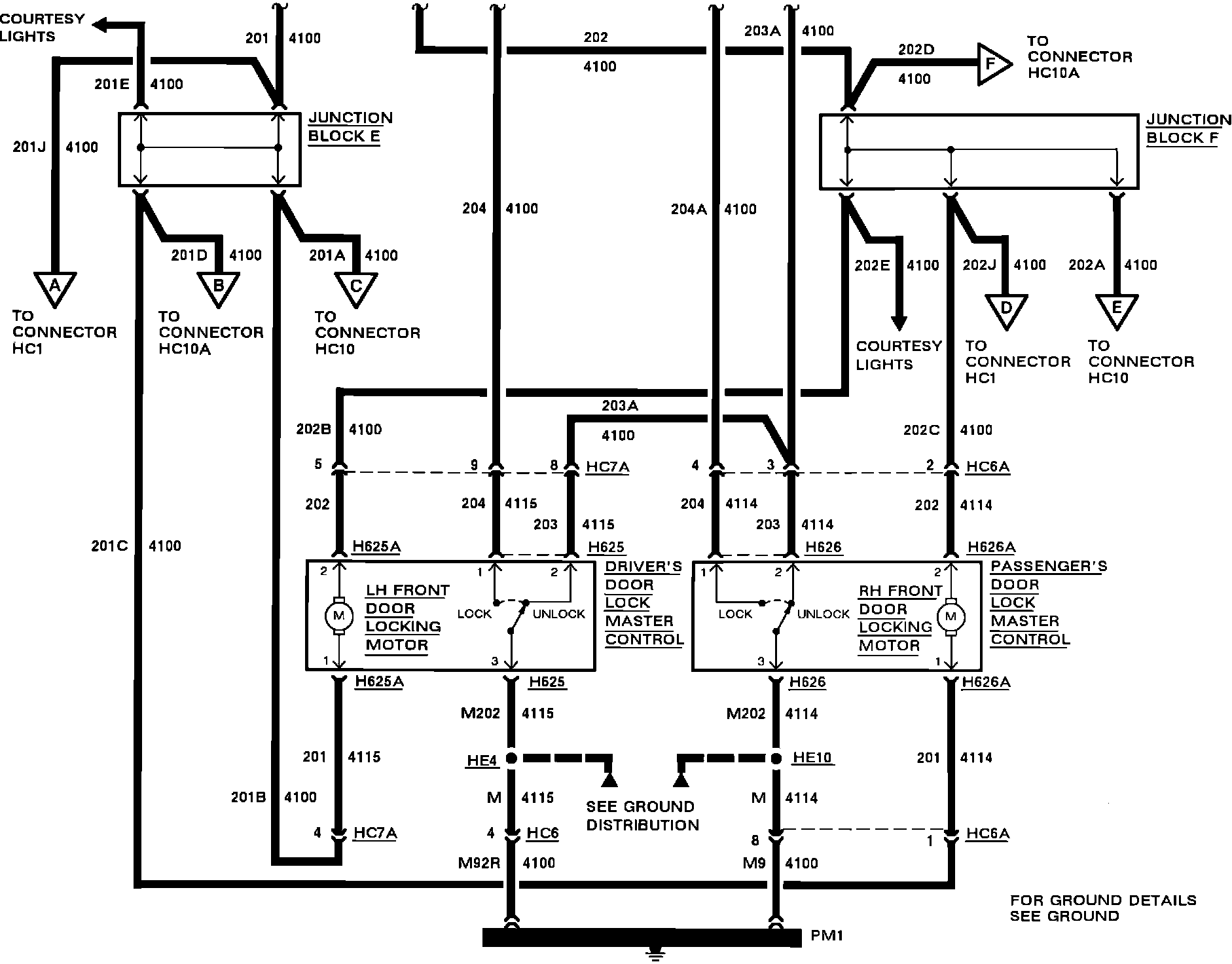

Centralized Power Door Locks (Without Remote Control):

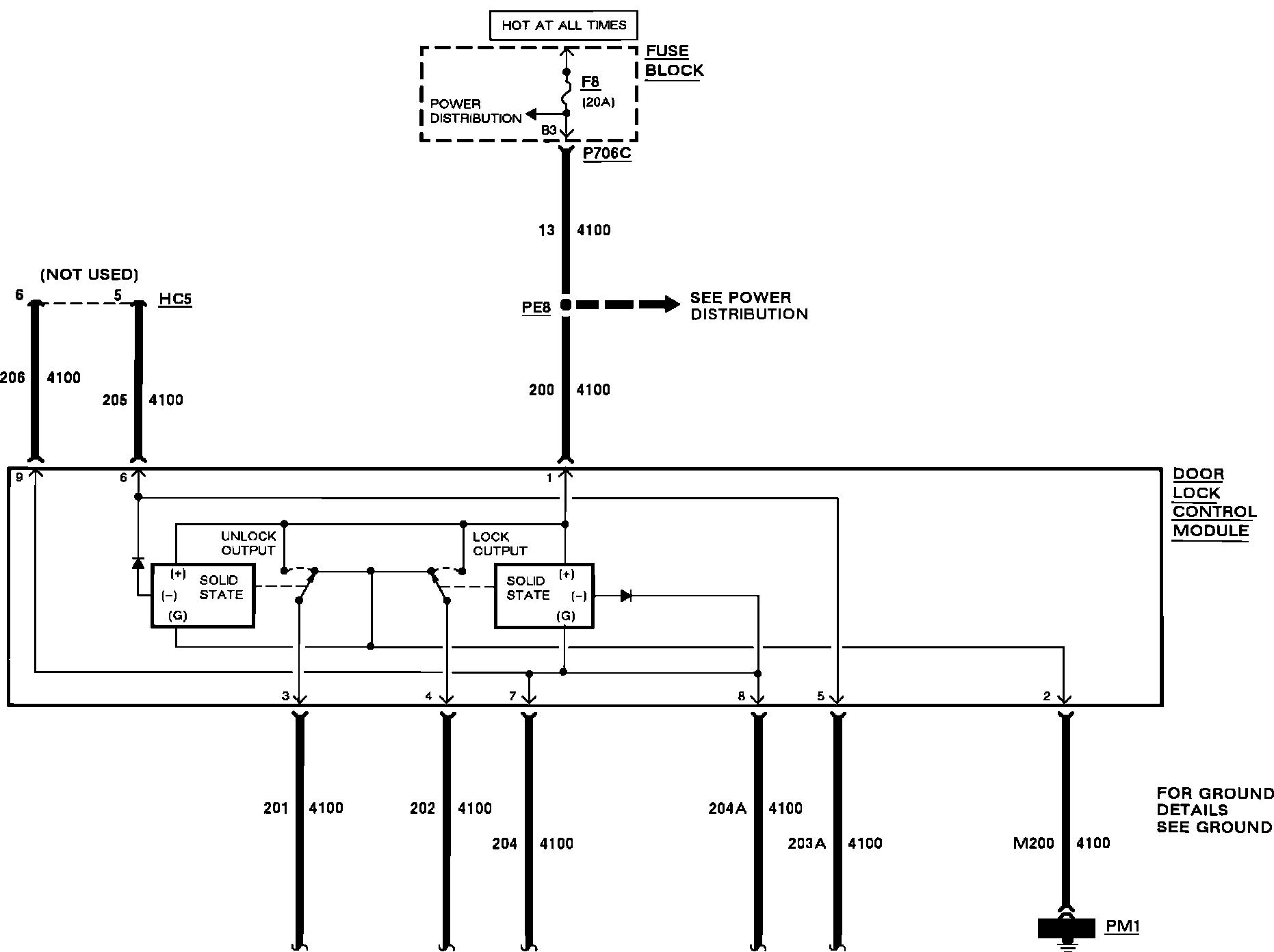

Centralized Power Door Locks (Without Remote Control):



Power Door Locks. Less Remote Control:
