Home
>>
Peugeot
>>
1990
>>
405 L4-1905cc 1.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
MM5
MM5

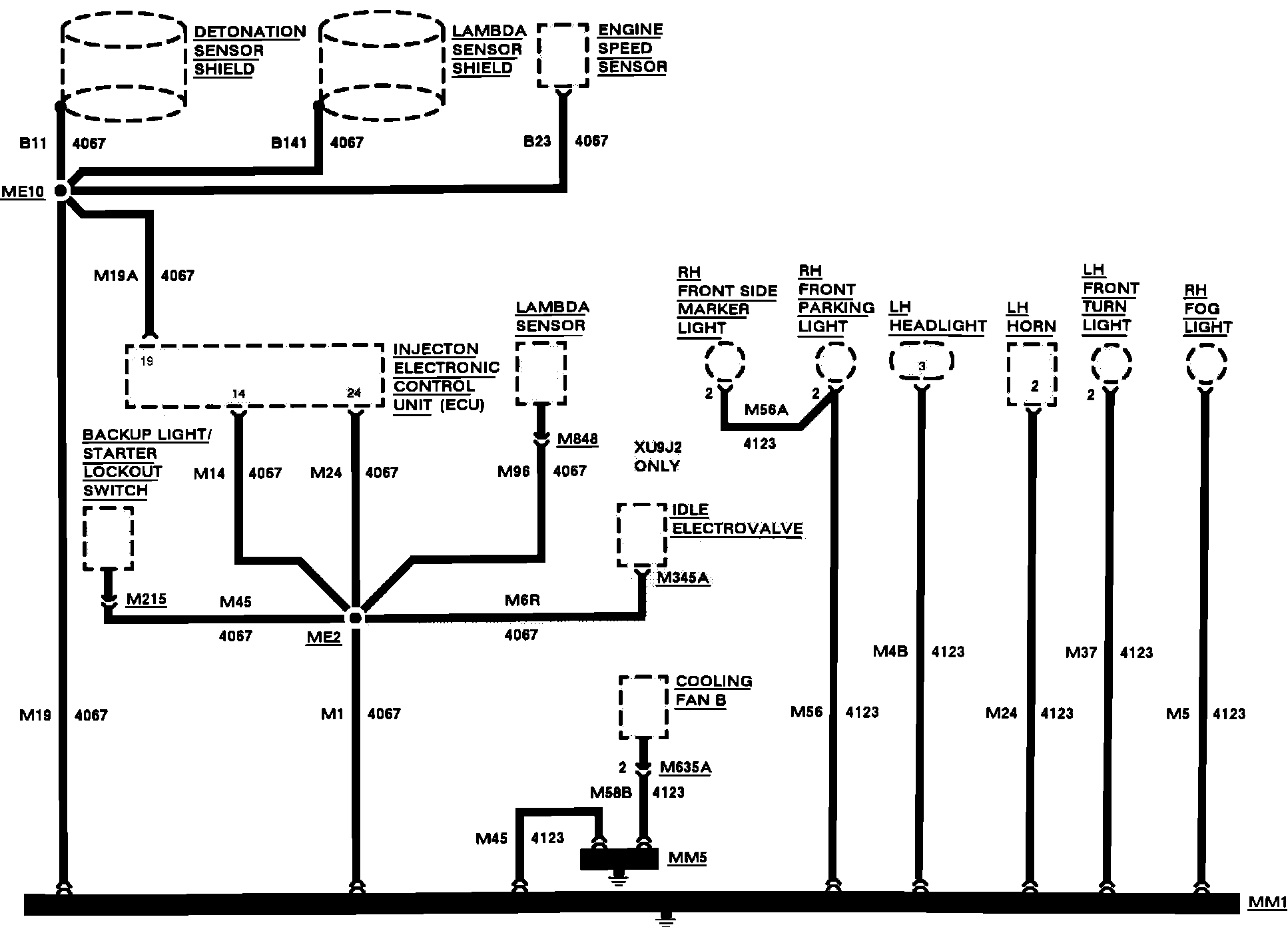

Ground Distribution:
