Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Peugeot
>>
1990
>>
405 L4-1905cc 1.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
MM3
MM3

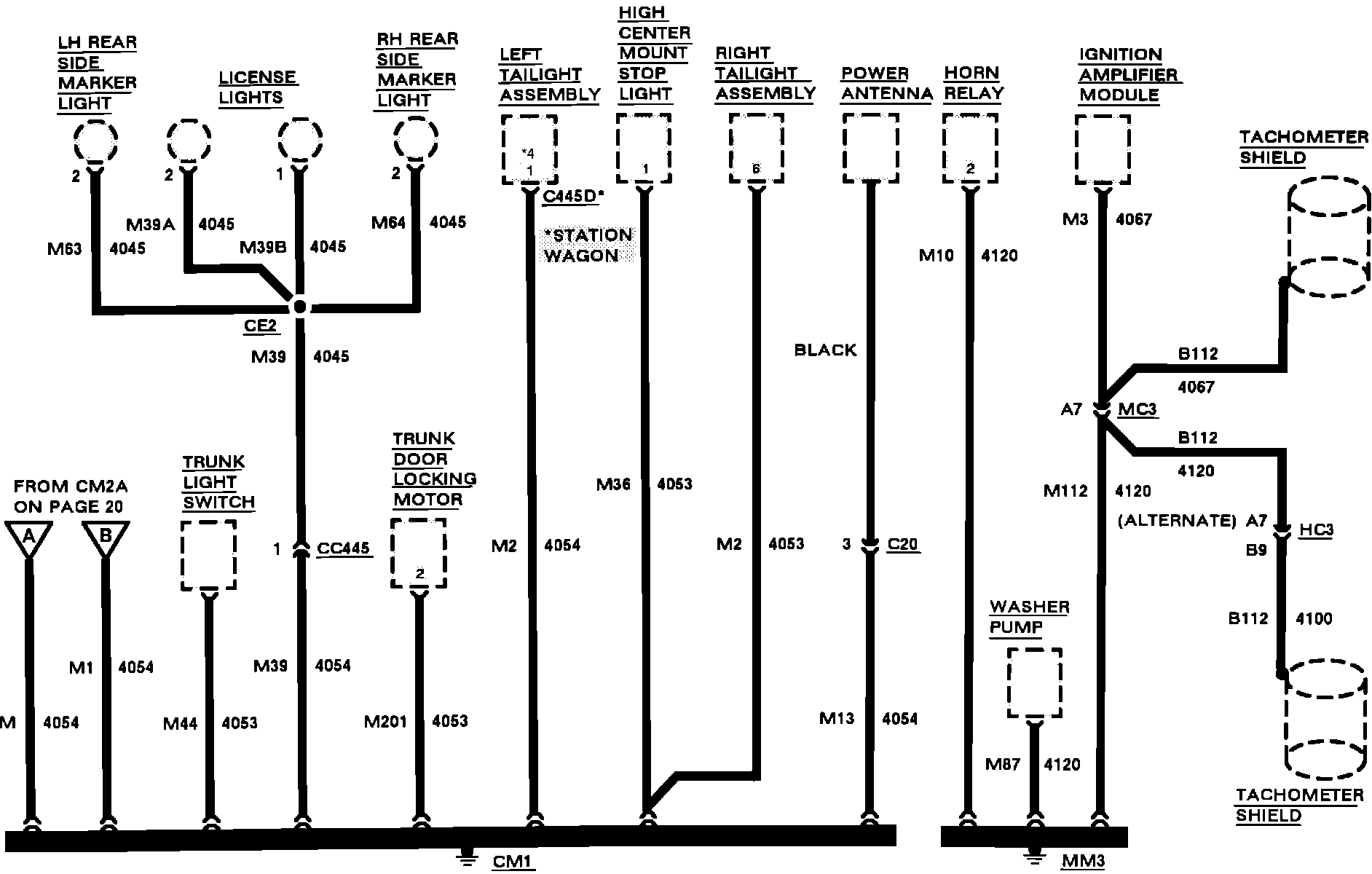

Ground Distribution:
