Part 2 of 3

Anti-lock Brake System (Part 2 Of 3). 405:

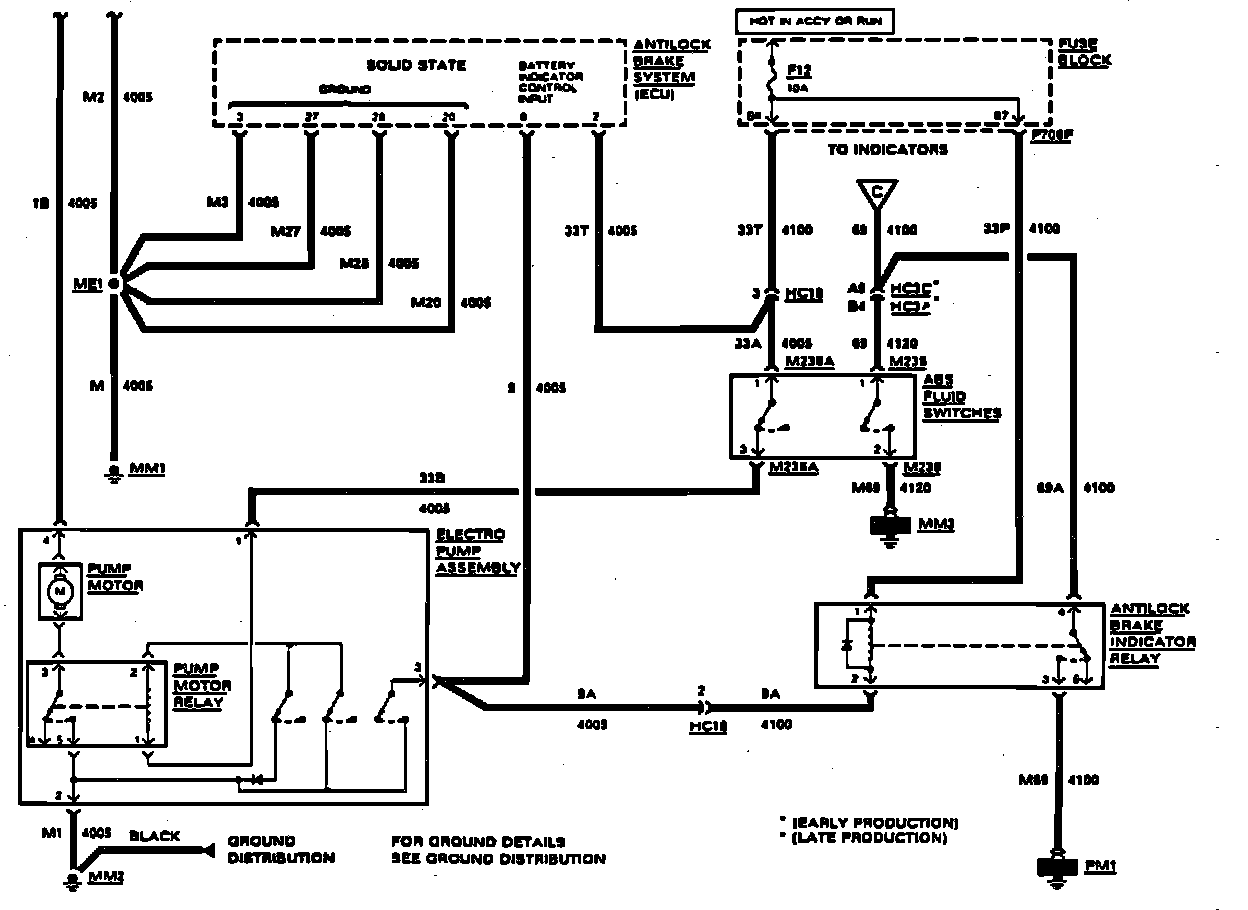

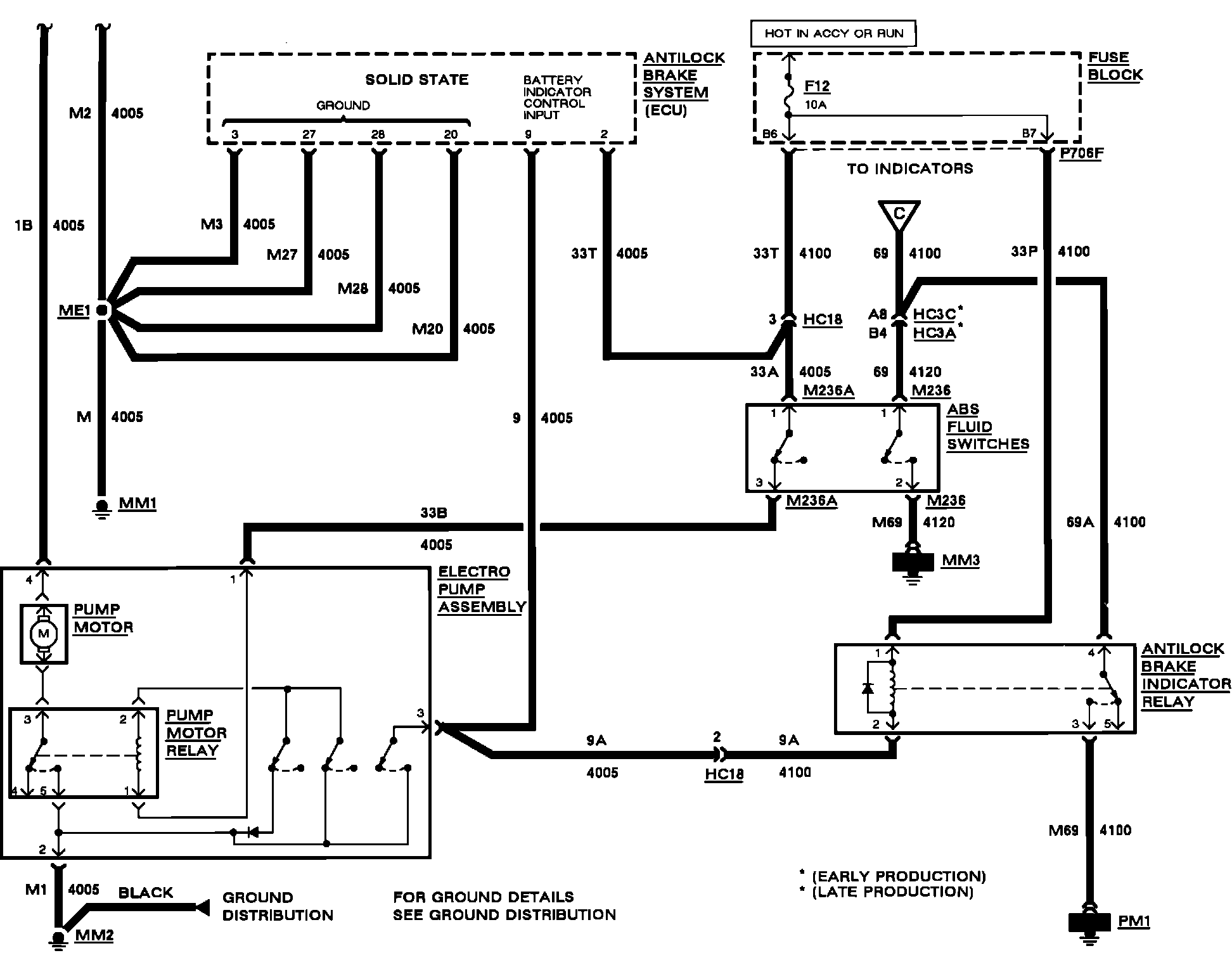

Fig. 1 ABS Wiring Circuit (Part 2 Of 3).:



Antilock Brake System:
