Antilock Brakes / Traction Control Systems
>>
Part 1 of 3
Part 1 of 3
Anti-lock Brake System (Part 1 Of 3).405:

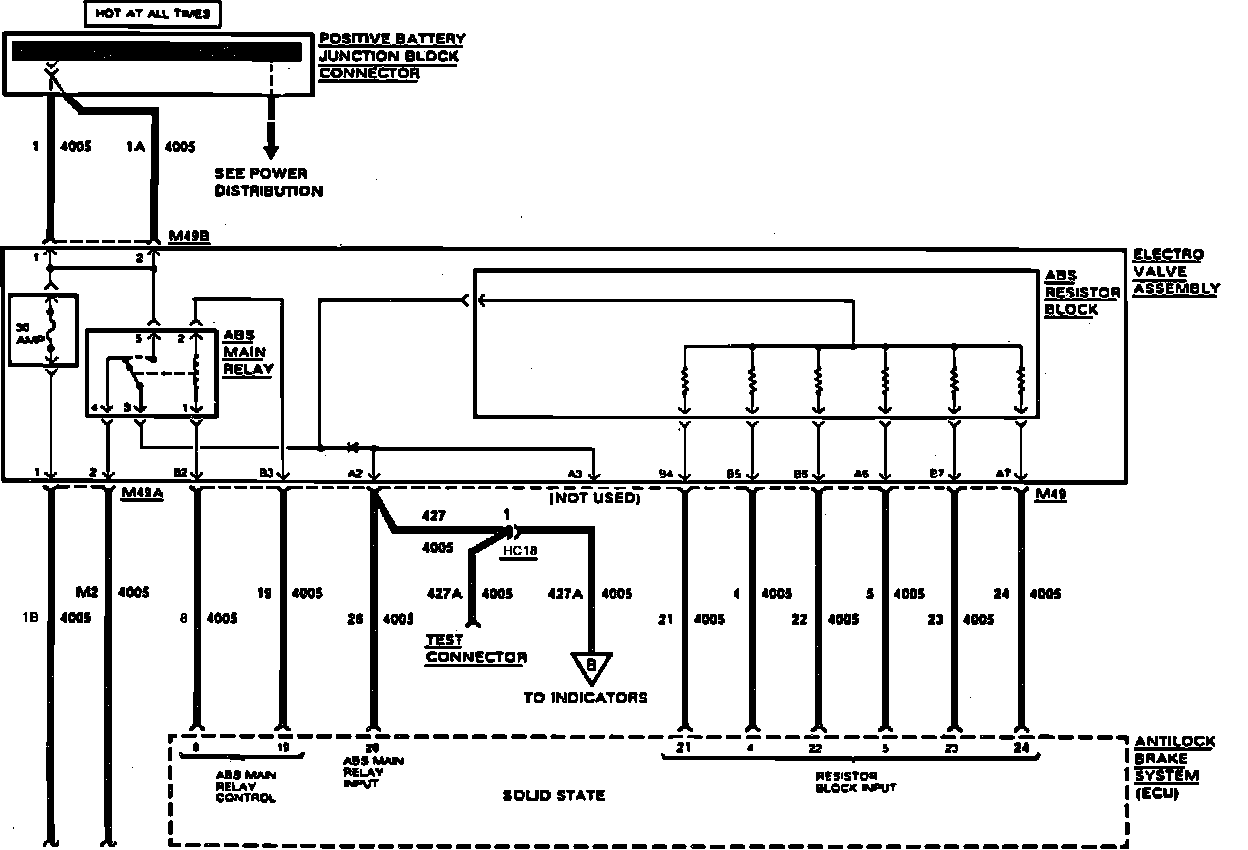

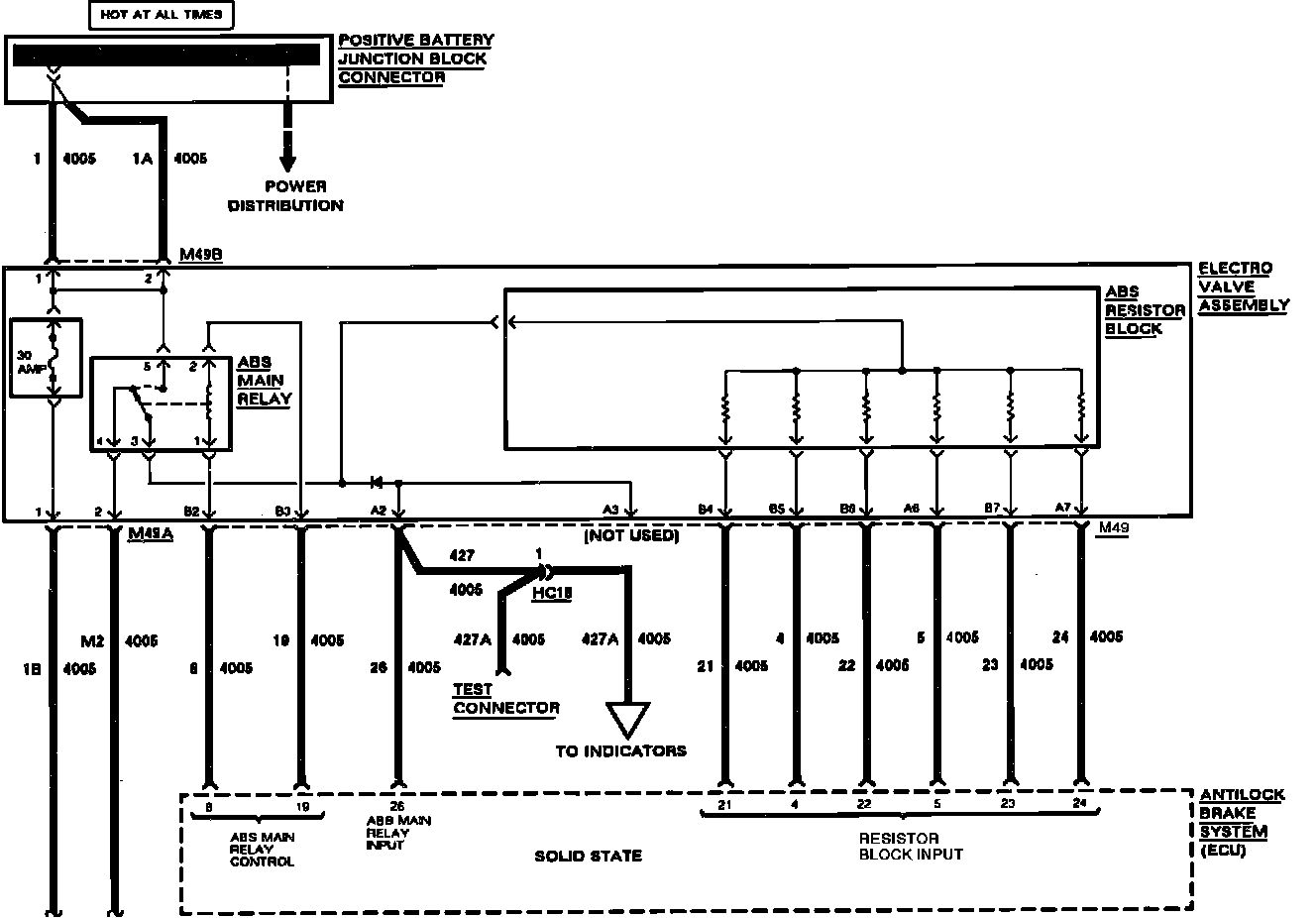

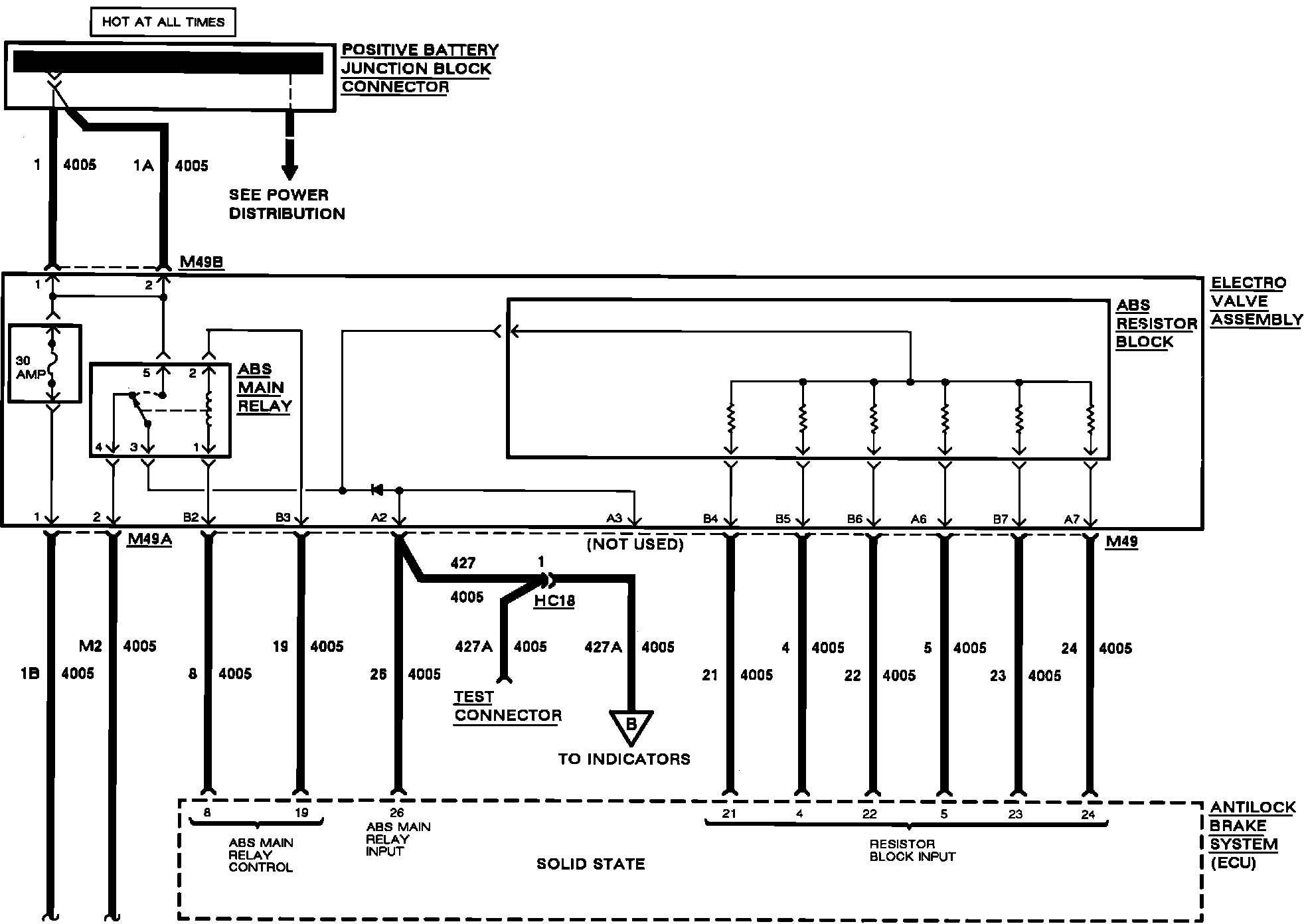

Fig. 1 ABS Wiring Circuit (Part 1 Of 3).:
Antilock Brake System:
