Rear Brake Pads

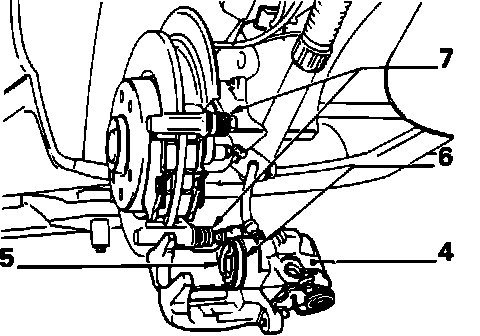

Fig. 4 Disc Pad/caliper Service:

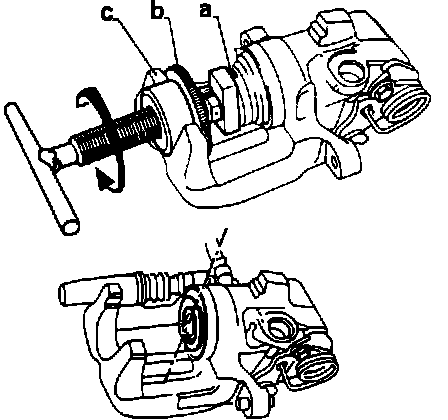

Fig. 5 Caliper Piston Service:

1. Raise and support rear of vehicle, then remove wheel assembly.
2. Drain a small amount of brake fluid from master cylinder reservoir.
3. Disconnect parking brake cable from lever.
4. Remove bolt (2) while holding guide (3), Fig. 4, then pivot caliper down and remove pads.
5. Clean all components and ensure caliper slides freely.
6. Compress caliper piston using compressing tool No. 0805-JZ or equivalent. Position piston slots as shown, Fig. 5.
7. Reverse procedure to install.
