Technical Service Bulletins
>>
Injection/Ignition - Bosch Motronic M1.3 Evolution
>>
XU9J2 - Component Location
XU9J2 - Component Location
XU9J2

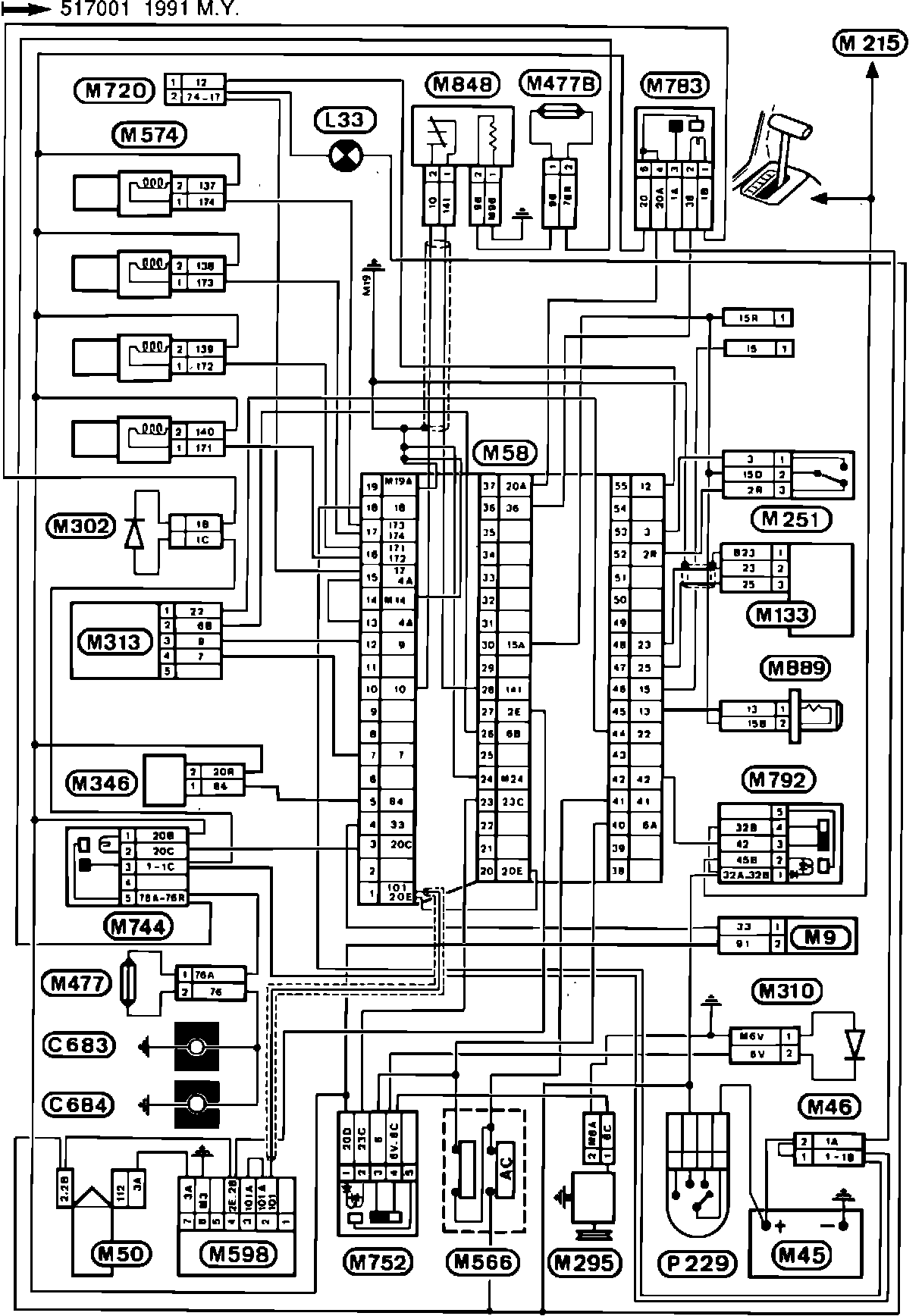

COMPONENT LOCATION - ELECTRICAL SCHEMATICS
