Engine Electrical System Diagram
Engine Electrical System Diagram

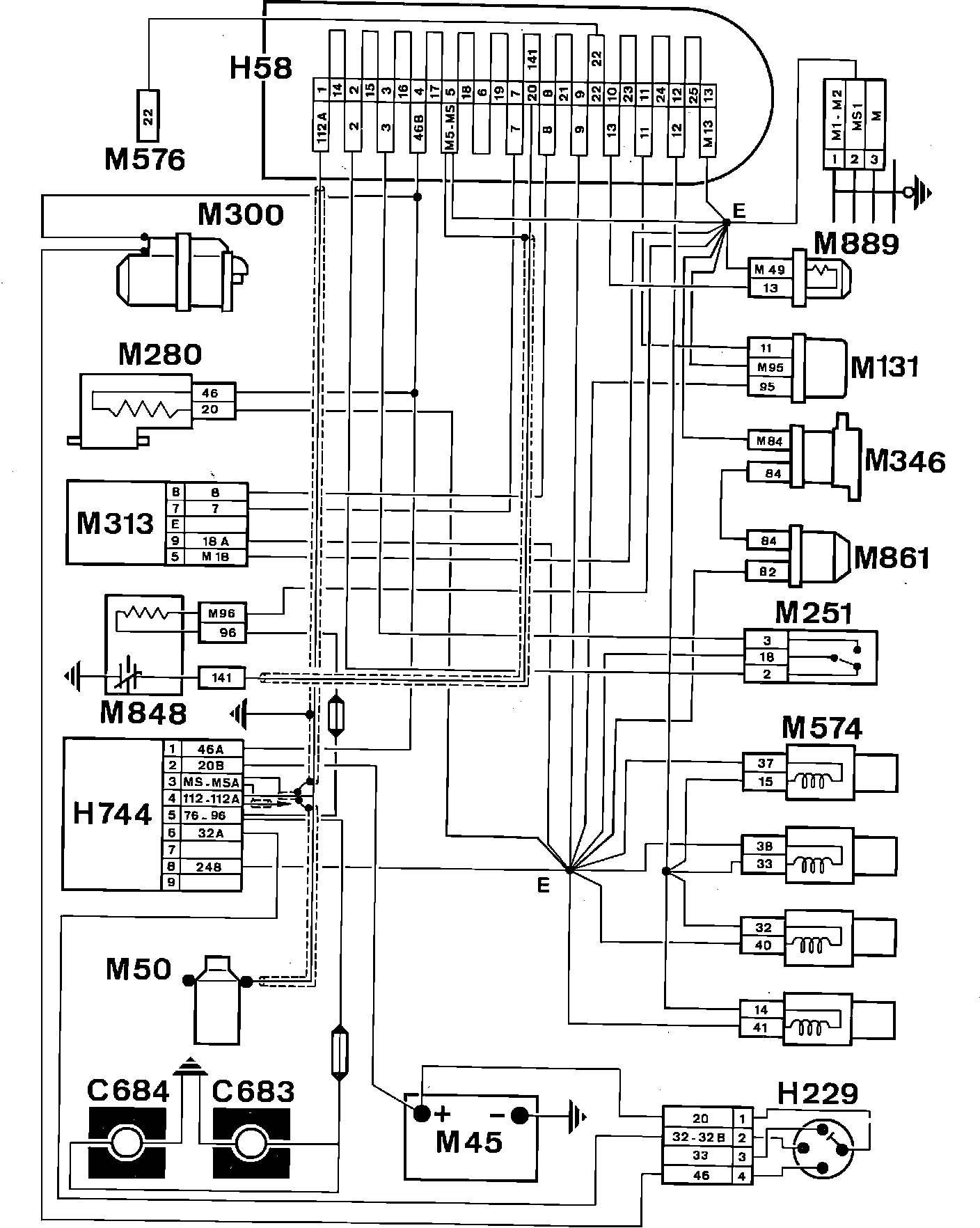

System Electrical Diagram:

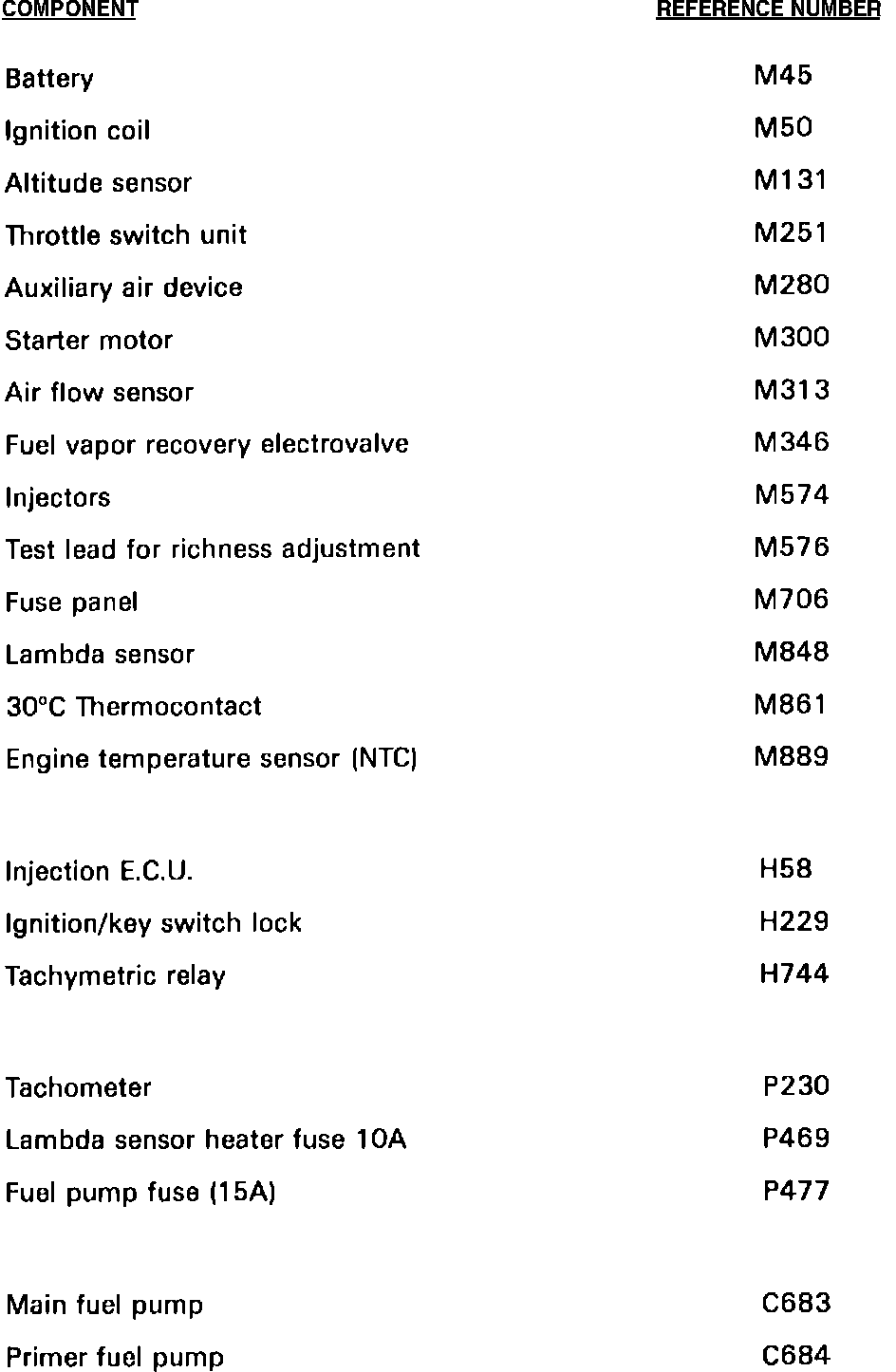

Component Reference Chart:
