Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
30 Degree C Thermocontact
30 Degree C Thermocontact

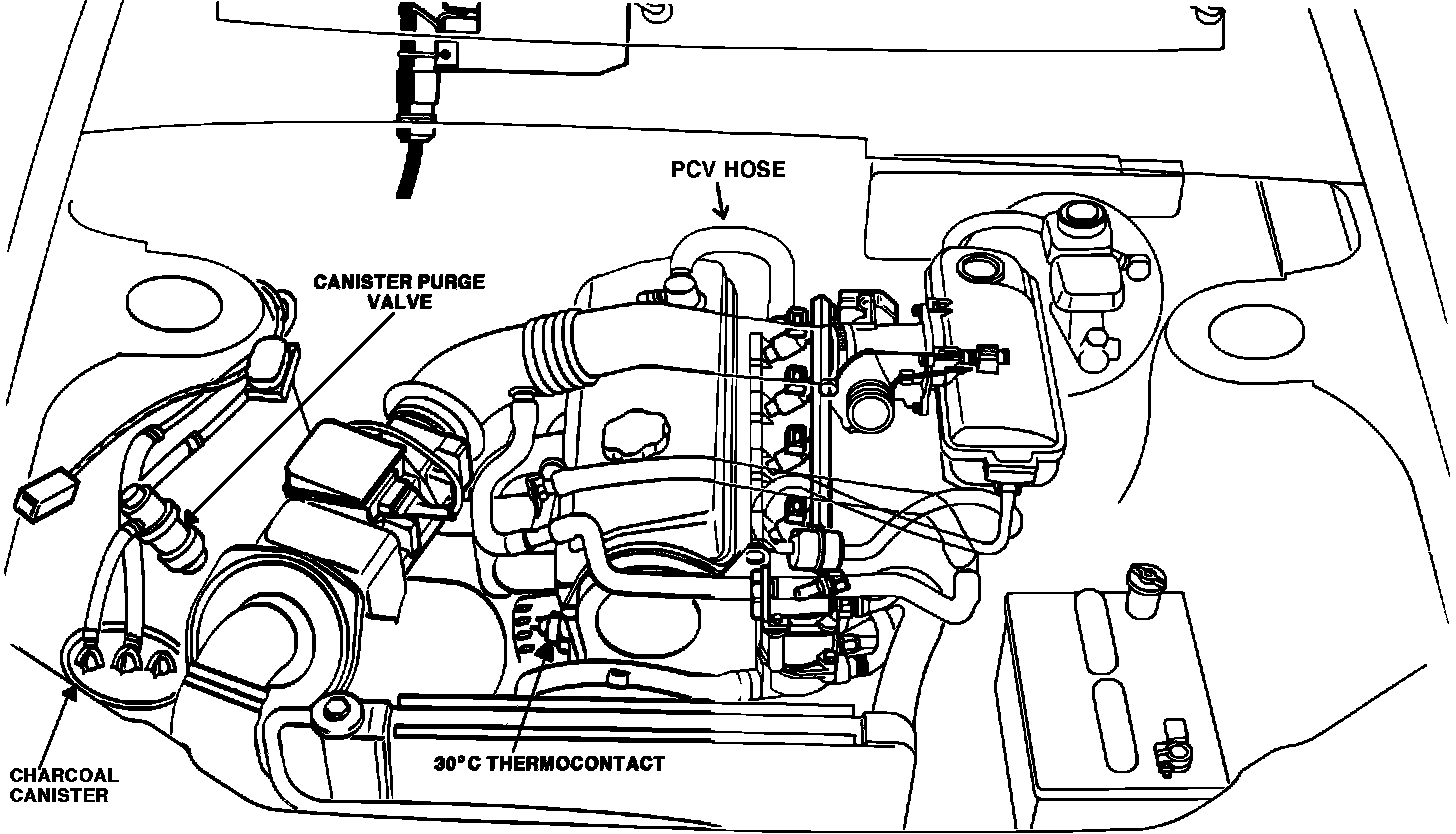

Emission Component Locations:
30C Thermocontact:
The 30°C thermocontact is located at the top right hand side of the engine block.
