89peugeot02BULLETIN NO. 329
DATE: February, 1989
SUBJECT: INFRA RED REMOTE CONTROL DOOR LOCK SYSTEM - PARTS SUPERCESSION AND IMPROVED OPERATION
MODELS: 405 AND 505 VEHICLES ORIGINALLY EQUIPPED WITH REMOTE CONTROL SYSTEM
DESCRIPTION:
As of 6/88 (405) and 1/89 (505), an improved version of the remote control door lock system has been installed in production.
Although the appearance is the same, the new version can be identified by the name "Kiekert" (instead of "Neiman") on the hand-held "plip" (transmitter).
The new version is more sensitive, with a slightly increased operating range. While the Neiman "plip" emits only one signal for each push on the button, which often necessitates a second push for the door locks to open, the Kiekert "plip" will emit a burst of signals in rapid succession as long as the button is pressed.
PARTS INFORMATION:
The Parts Department will only supply the "Kiekert" system when the complete transmitter-receiver set is ordered. Separate transmitters will still be available for the old "Neiman" system as well as for the new "Kiekert" system.

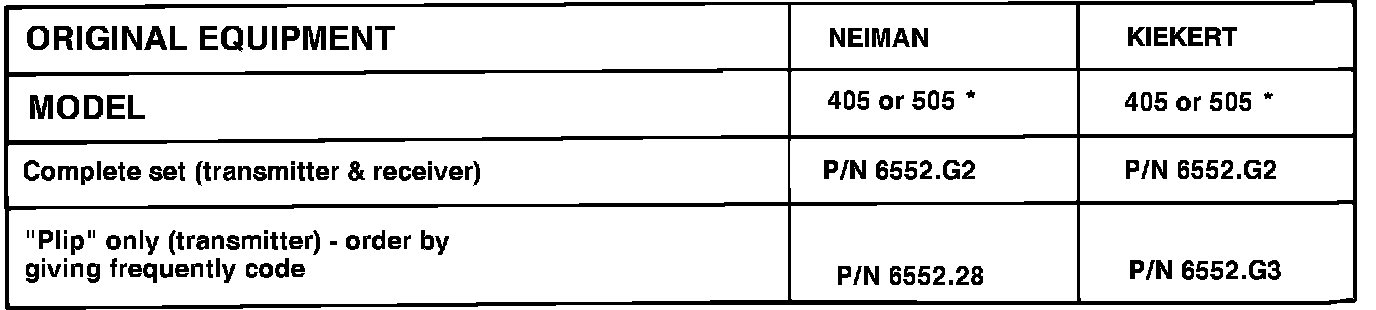

Order the parts needed from the chart below:
* A slight modification, as shown on the next page, is necessary to adapt this unit to the 505.

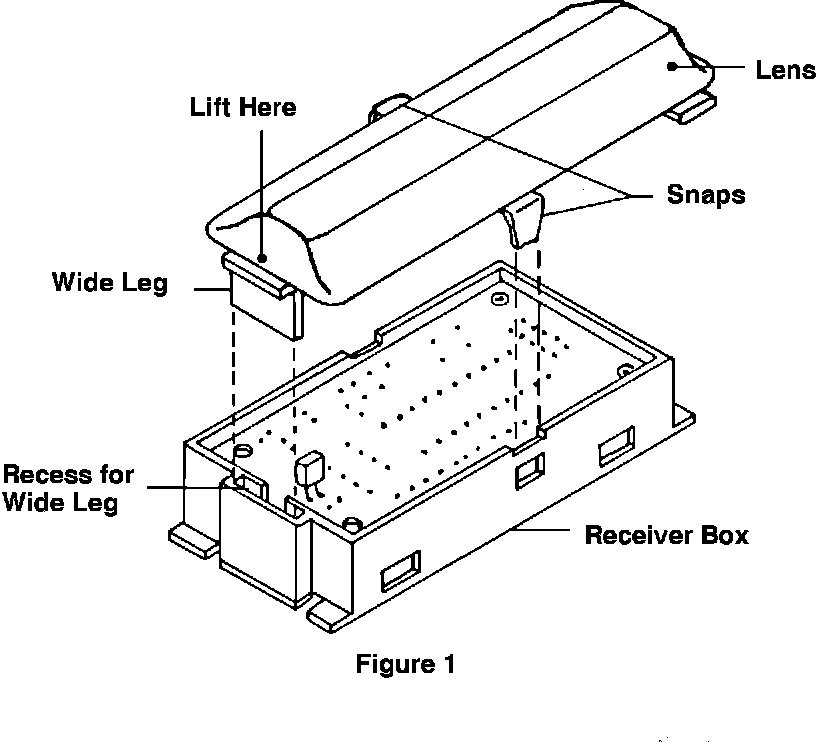

FIGURE 1:
INSTALLATION PROCEDURE - 505 ONLY:
Carefully remove the elongated plastic lens from the new receiver box:
1. Loosen the two (2) plastic snaps on the long sides of the box with a small screwdriver.
2. Pry loose the lens at the short end.
3. Pull it straight up, in order not to break the wide leg.
4. Discard this lens (See Figure 1 below).

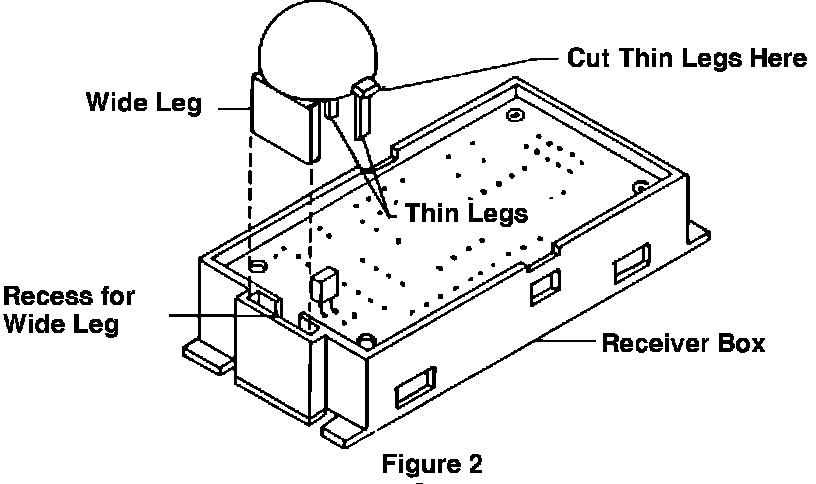

FIGURE 2:
- Remove the dome-shaped lens from the original receiver as described above.
- The two thin legs of the dome-shaped lens must be cut off flush with the bottom edge of the dome in order for it to fit on the PC board (See Figure 2 below).
