Peugeot
>>
1989
>>
405 L4-1905cc 1.9L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Oil Level Sensor
Oil Level Sensor
Gauge System:

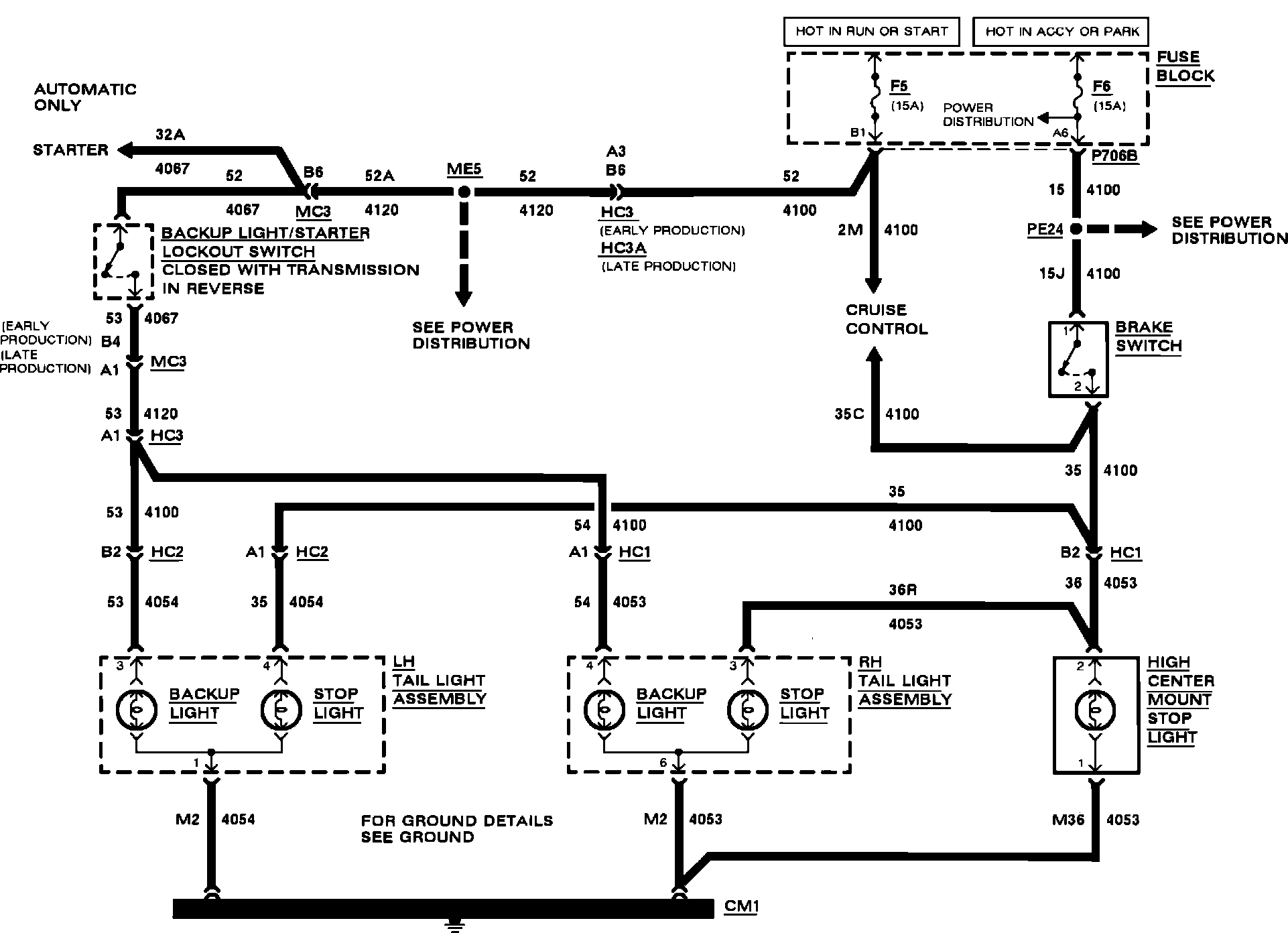

Back-Up & Stop Lights:
