Home >> Peugeot >> 1988 >> 505 V6-2849cc 2.8L ZN3J >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Positive Crankcase Ventilation >> Locations

Positive Crankcase Ventilation: Locations

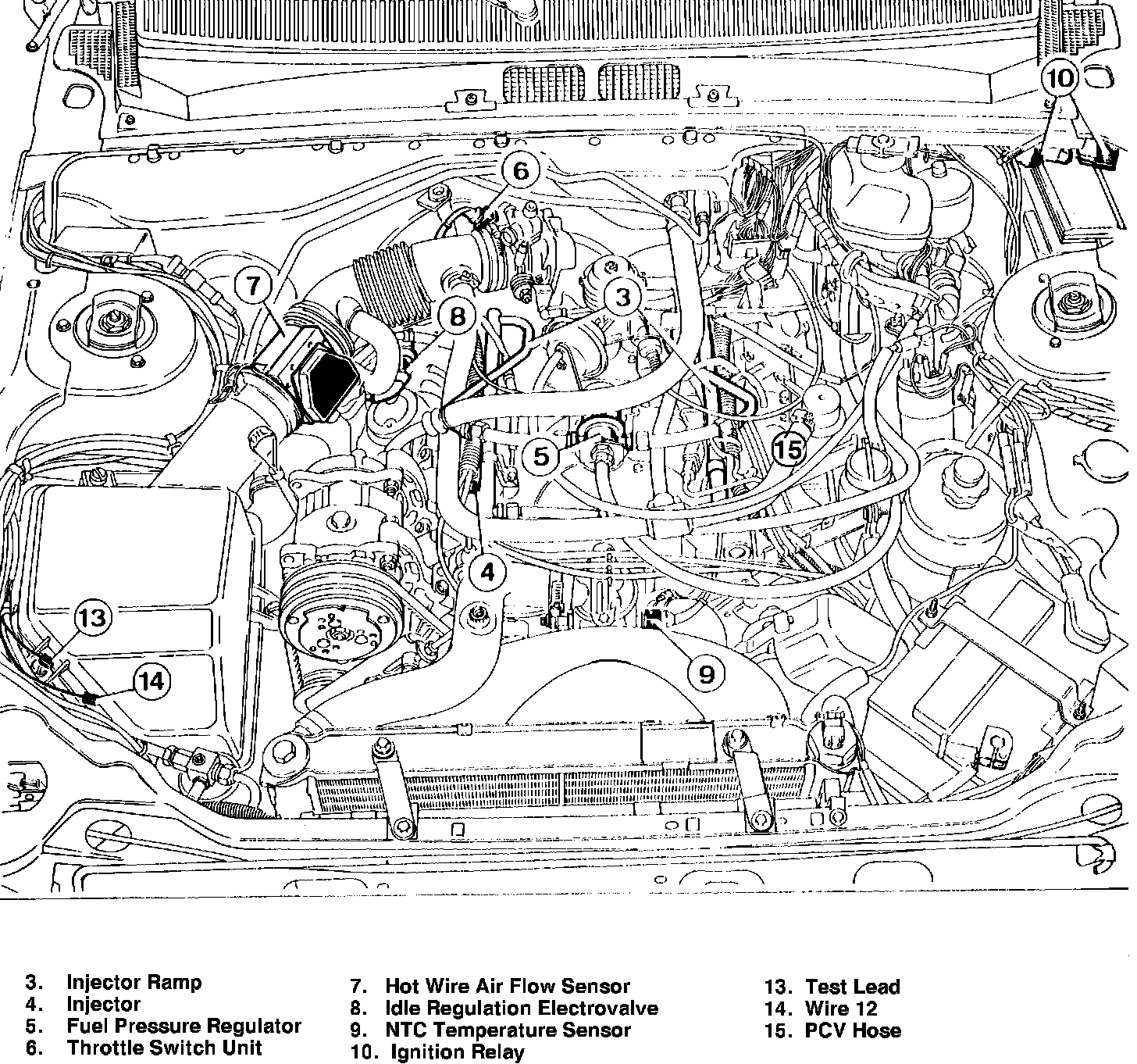

Fig. 2 COMPONENT LOCATION -- UNDERHOOD VIEW:
