Ignition System

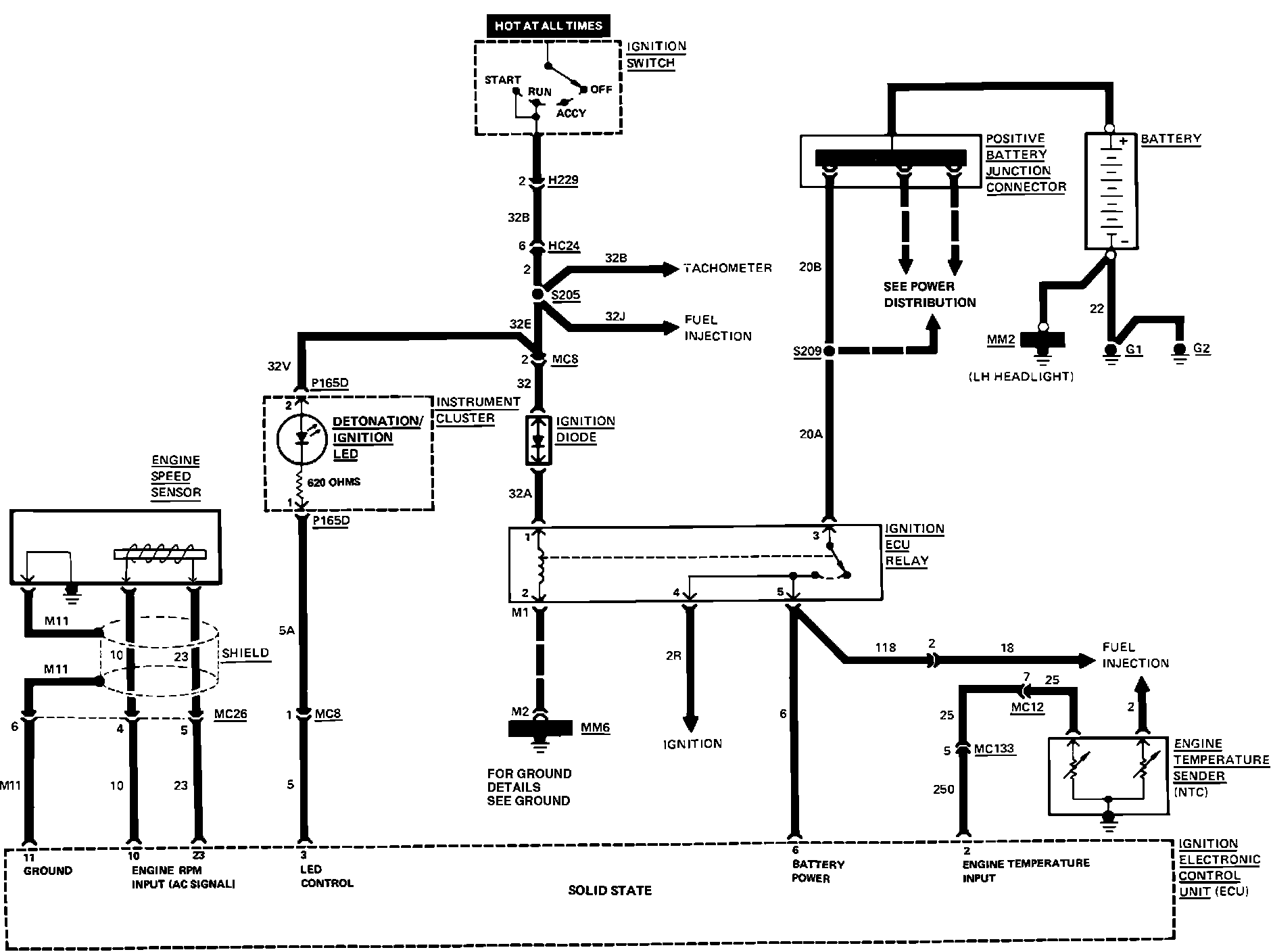

Ignition Control Wiring Circuit:

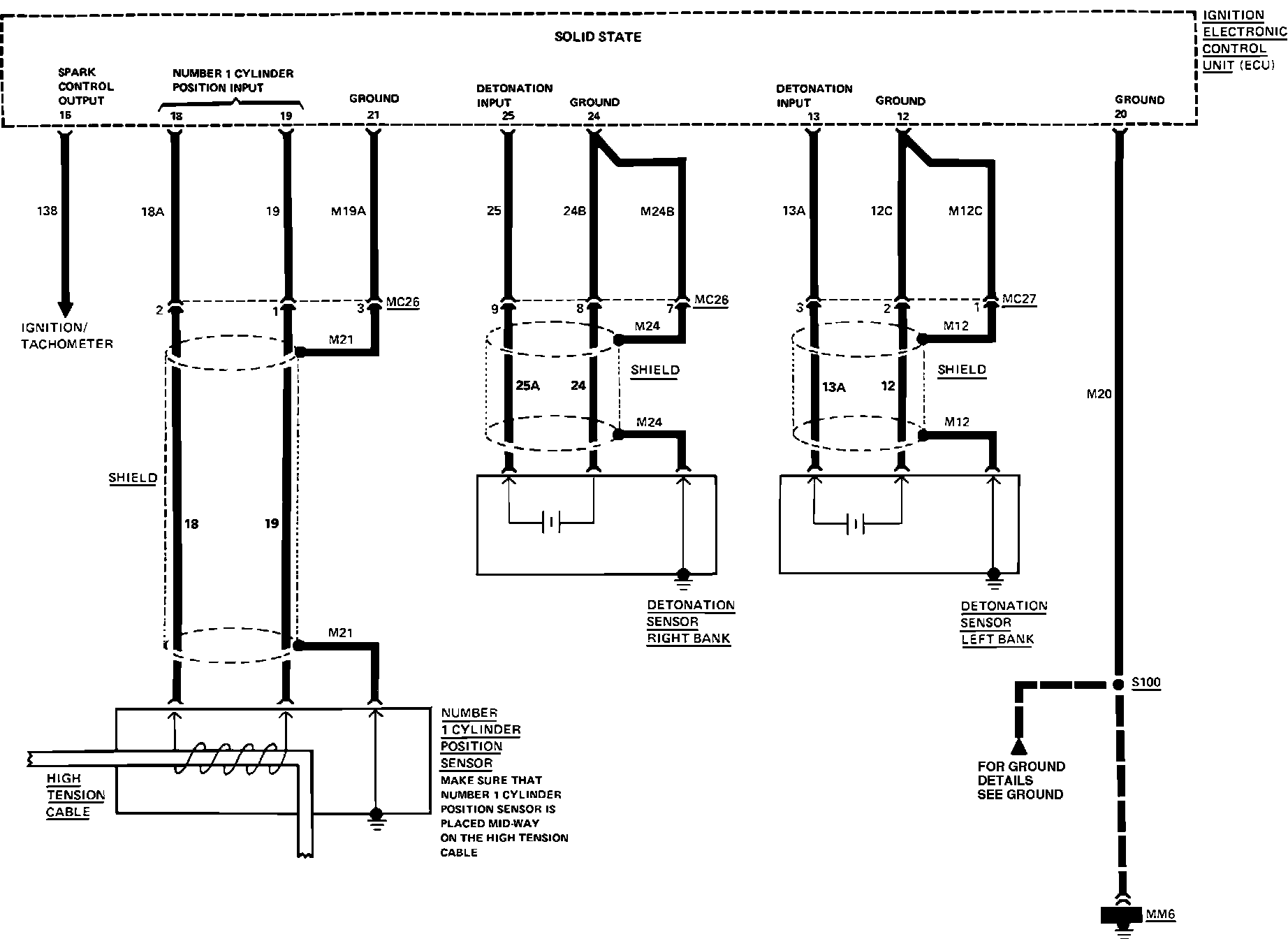

Ignition Control Wiring Circuit:
Ignition, Tachometer Wiring Circuit:
