Fuse Block

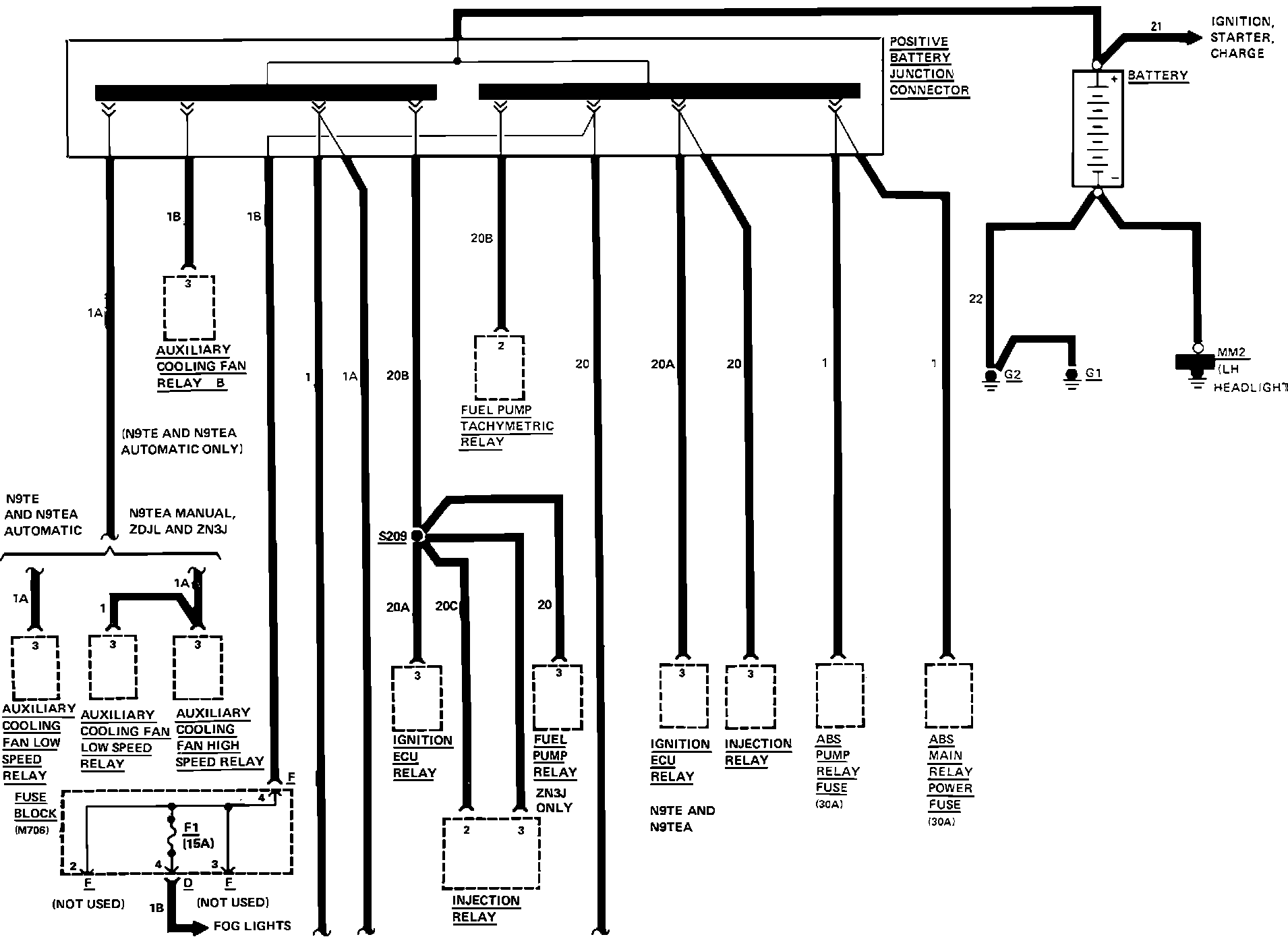

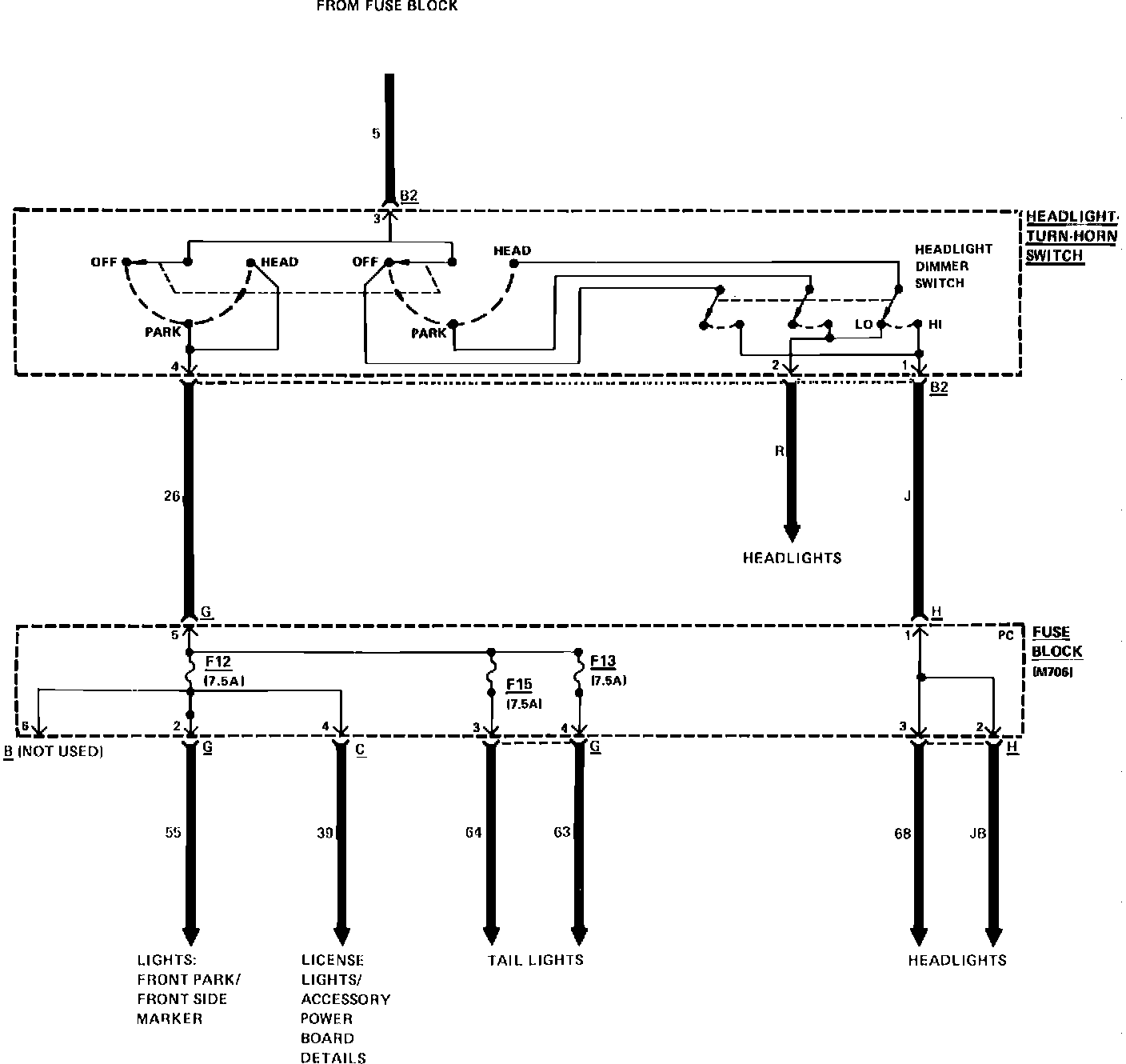

Power Distribution Wiring Circuit:



Power Distribution Wiring Circuit:

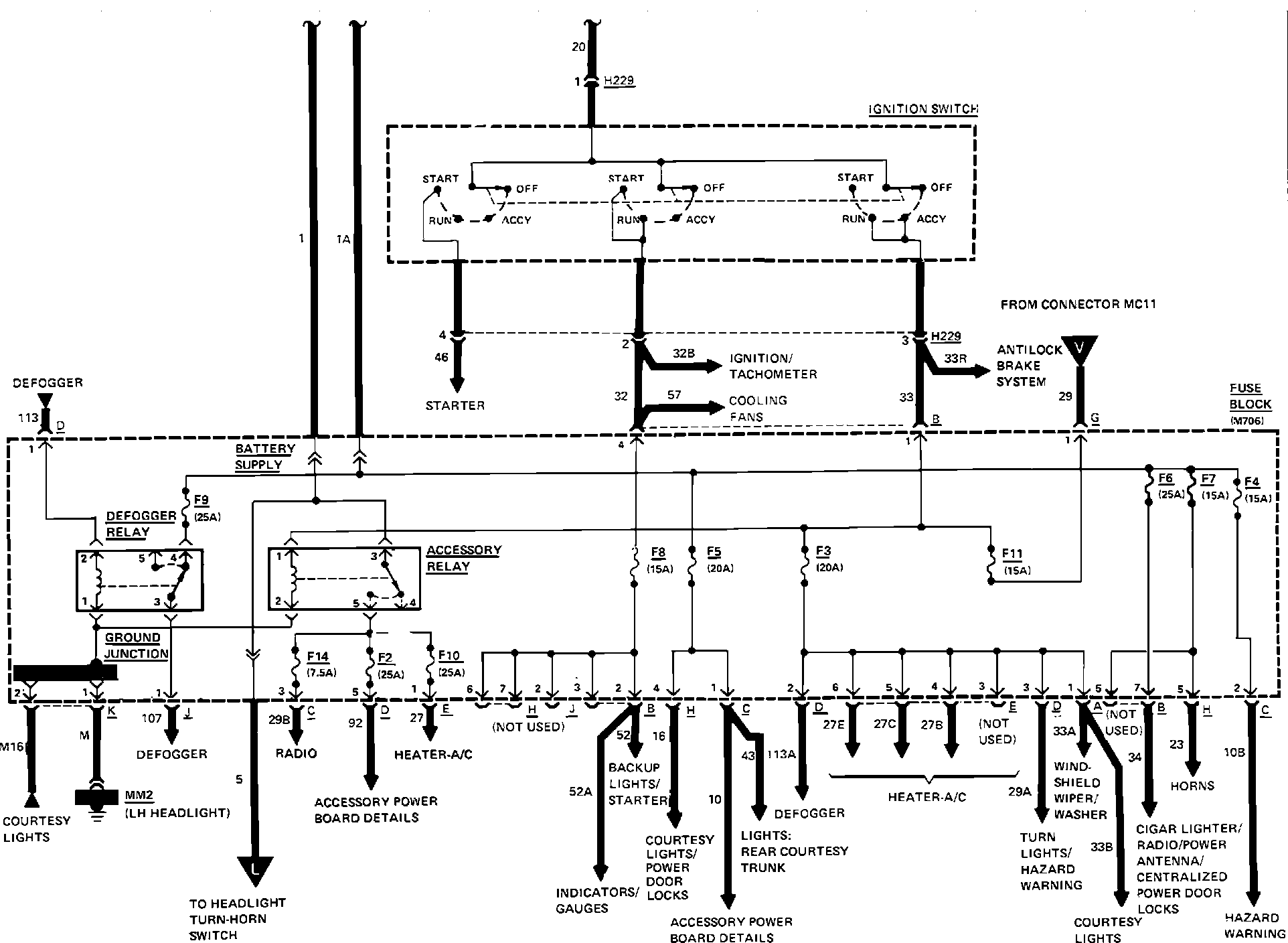

Power Distribution Wiring Circuit:
