Peugeot
>>
1988
>>
505 L4-2165cc ZDJL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>
Accessory Power Board
Accessory Power Board

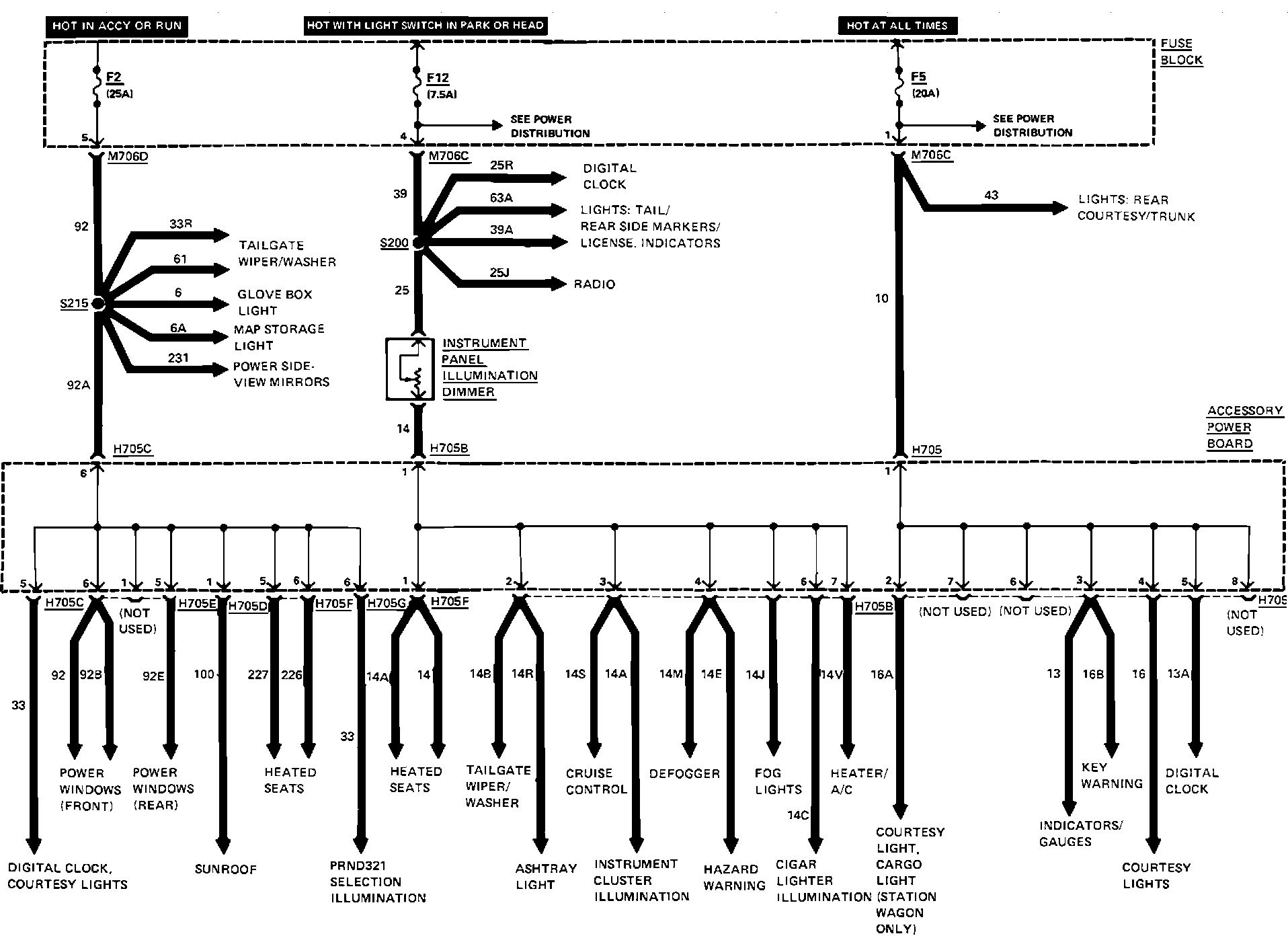

Accessory Power Board Wiring Circuit:
