Home >> Peugeot >> 1987 >> 505 V6-2849cc 2.8L ZN3J >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System

Ignition System

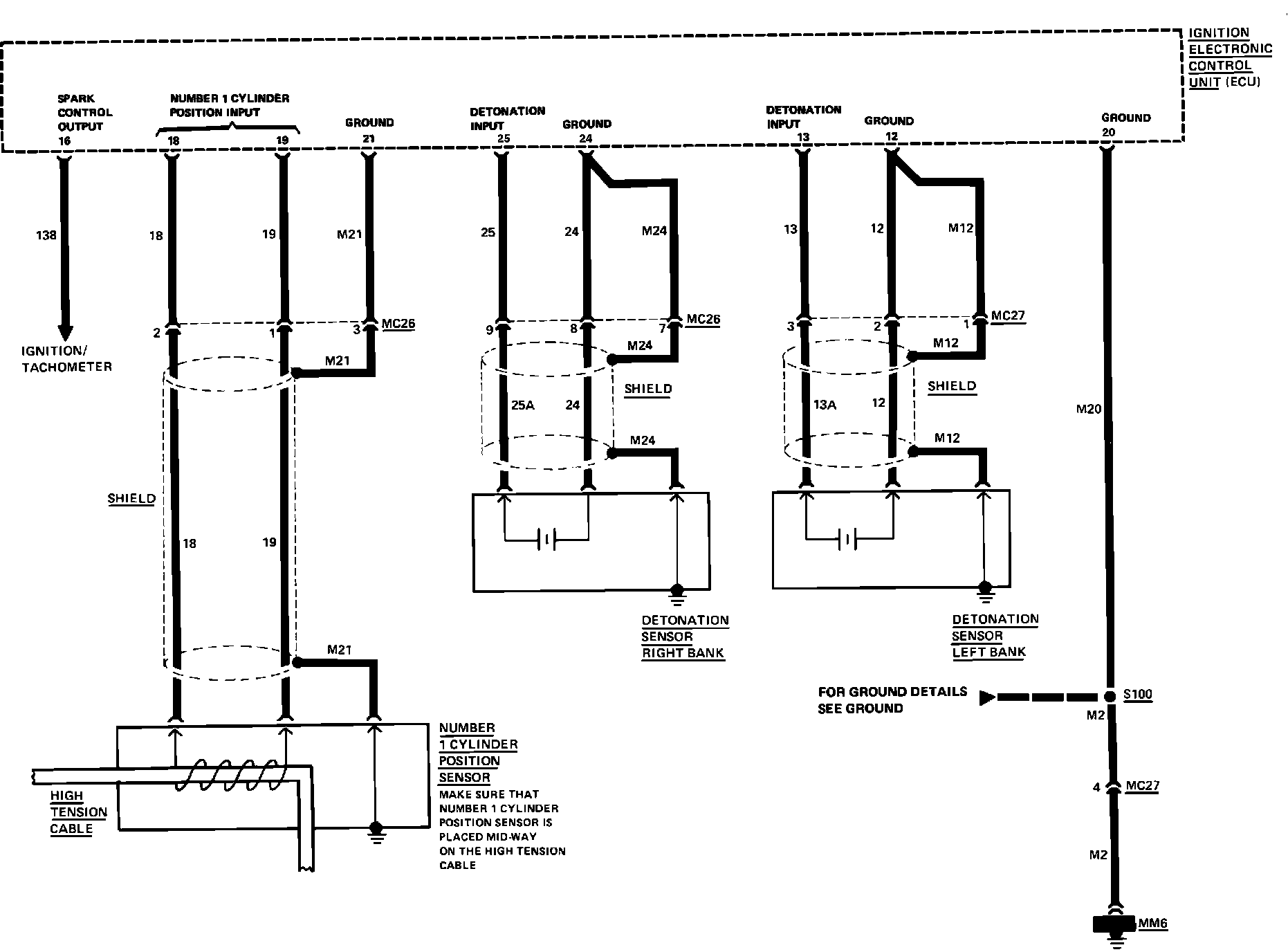

Fig. 6 Ignition Control Wiring Circuit:

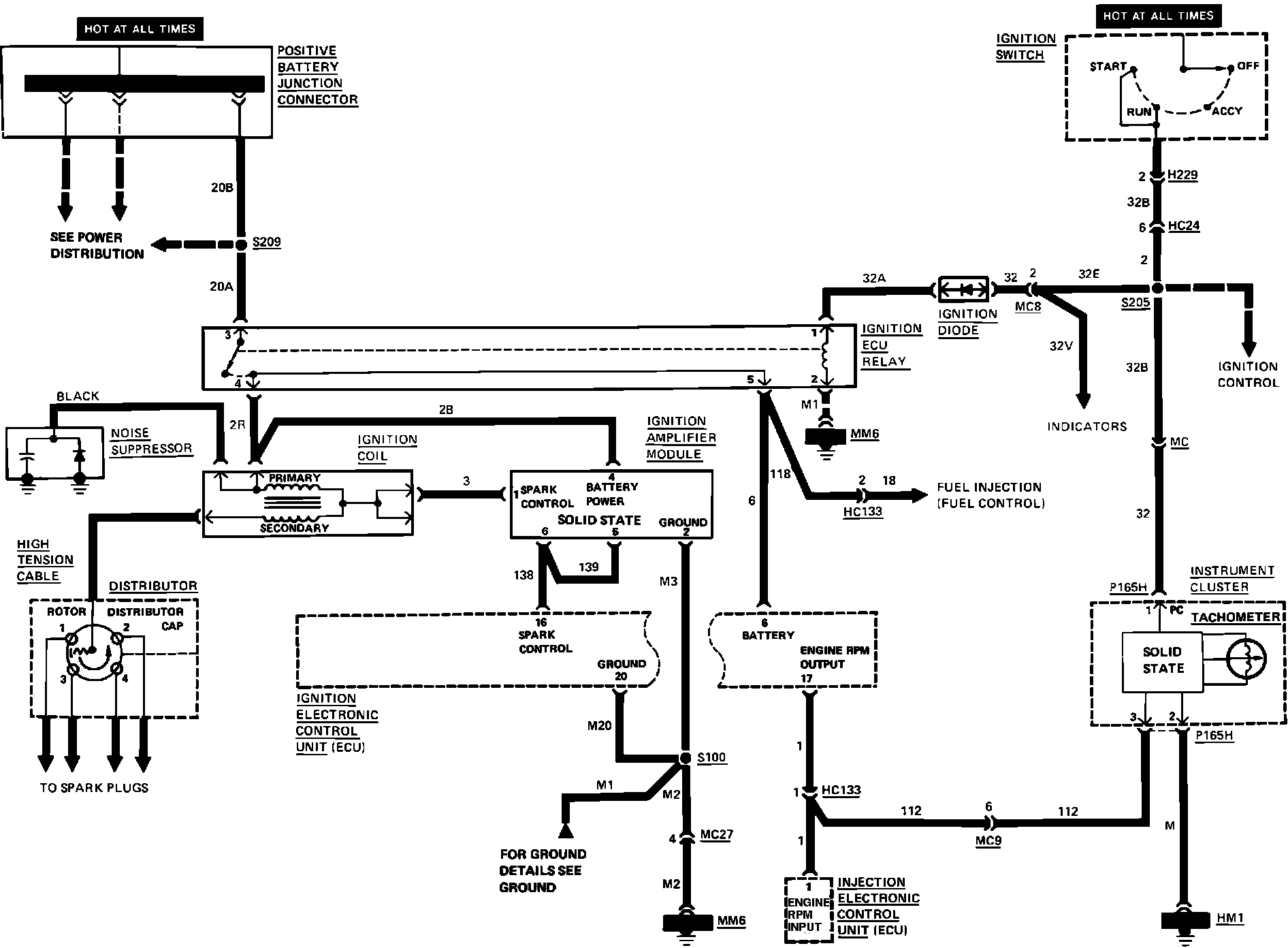

Fig. 7 Ignition Control Wiring Circuit:

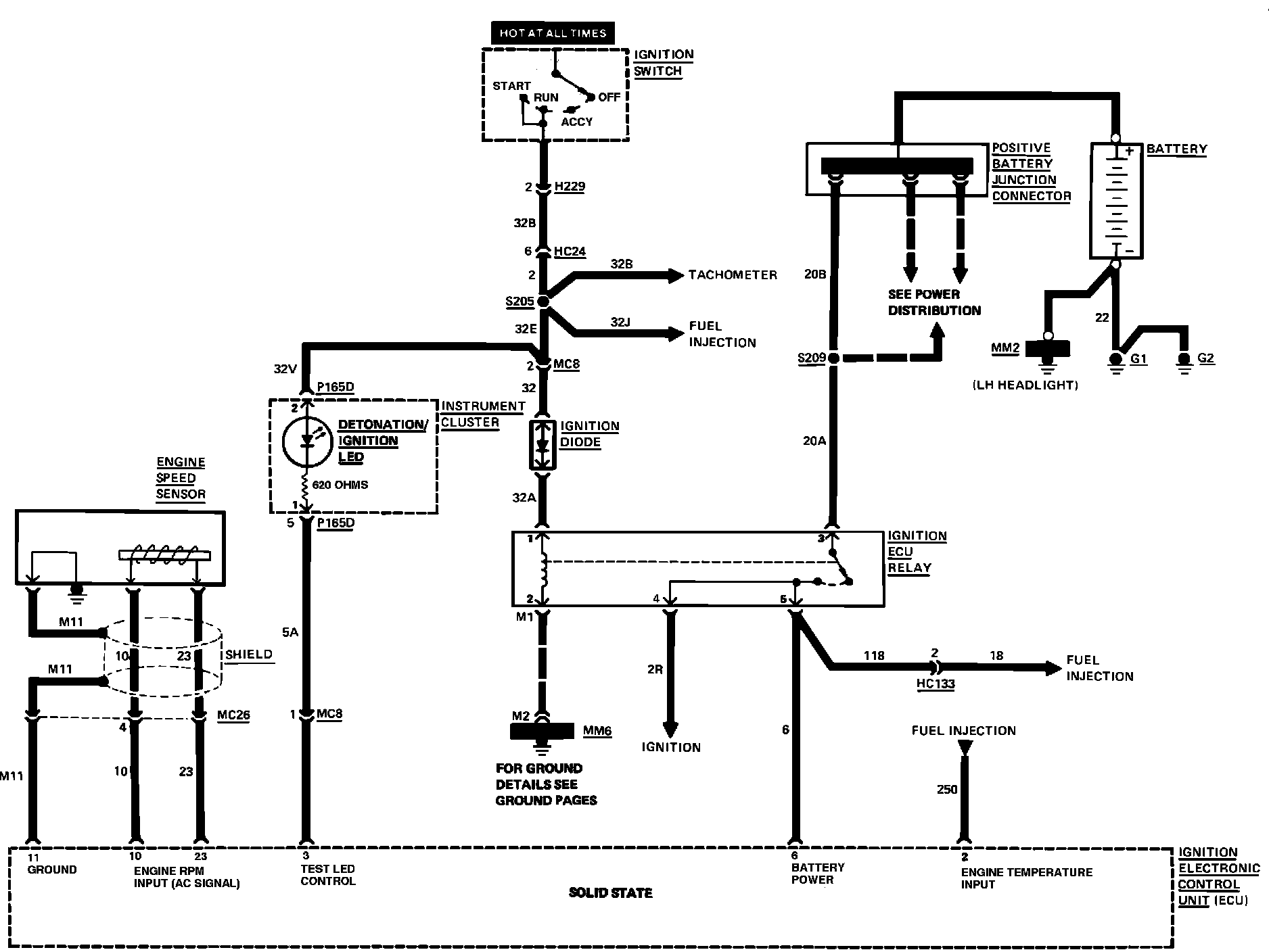

Fig. 5 Ignition, Tachometer Wiring Circuit:
