Home >> Peugeot >> 1987 >> 505 V6-2849cc 2.8L ZN3J >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram

System Diagram

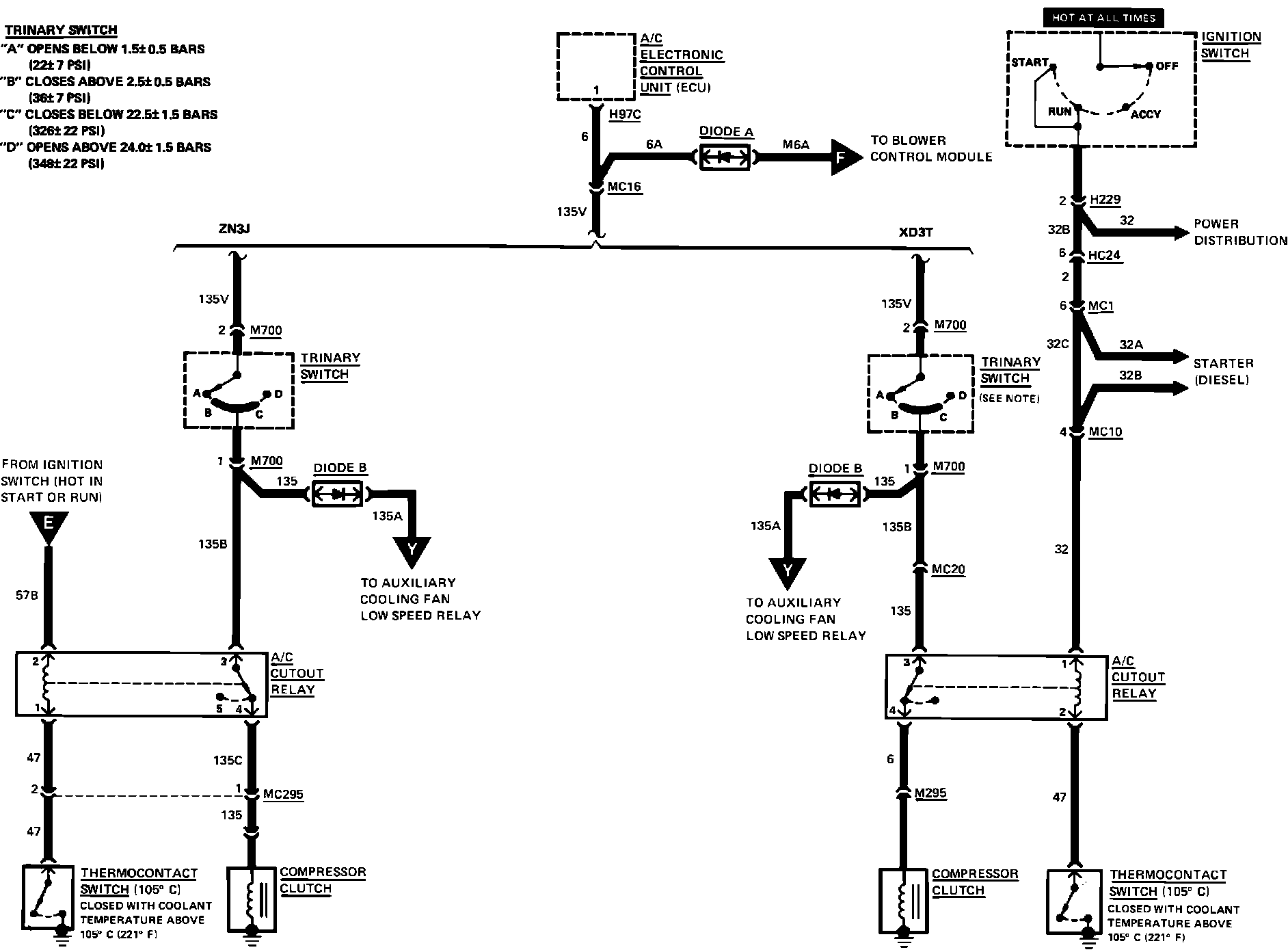

Fig. 55 Air Conditioner & Heater Wiring Circuit:



Fig. 57 Air Conditioner & Heater Wiring Circuit:
